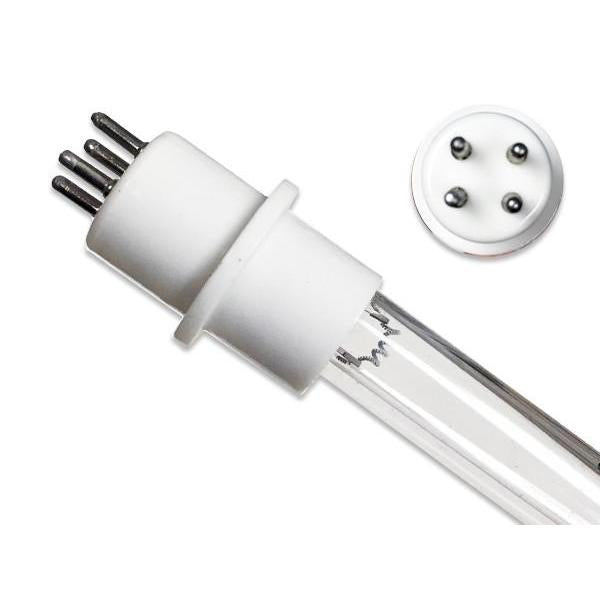

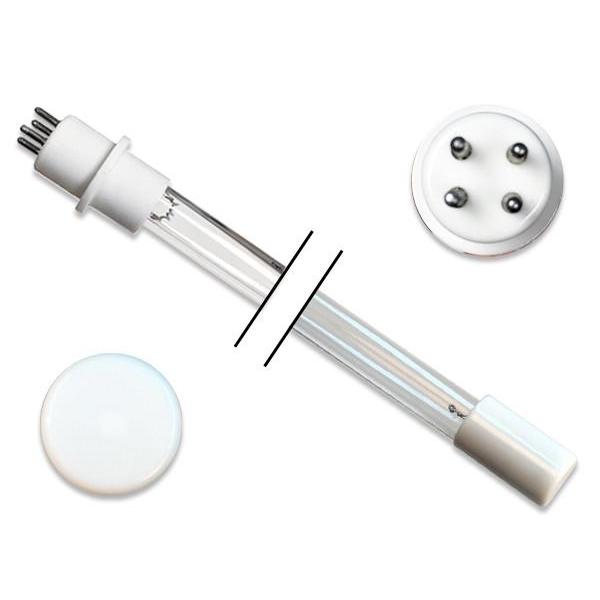

4 Pin Cell Base on a Single End - 30 Watt Germicidal Air & Surface Treatment Bulb
Steril-Aire 22000200 UV Light Bulb is 30 watts and 100% compatible with germicidal OEM air & surface disinfection filters, UV sanitizers, and ultraviolet air purifiers.
This UVC bulb is the 100% compatible replacement for use with germicidal UV-C system models:
- RGTS 24 HO
UVC light technology is used to sanitize, kill, and is a 99.9% proven effective treatment against:
12 month worry free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb but its germ killing ability quickly diminishes. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.Drawing of Replacement UVC Bulb Item # 194665 (PDF)
Spectral Output of Germicidal UVC Light Bulbs (PDF)
This replacement germicidal bulb is used for ultraviolet air and surface purification and is well-suited for the applications that require UV-C intensity.
Common Applications for use:
- Air Conditioners
- Air Purifiers
- Beverage Services and Processing
- Food Services and Processing
- Heating & Cooling Filters
- HVAC Systems
- Surface Disinfection
Common Locations for use:
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Steril-Aire brand UVC bulbs. All Steril-Aire brand names, trademarks, and logos are property of Steril-Aire.
Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
- Total Length: 23.98 inches (609mm)
- Arc Length: 20.28 inches (515mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 420mA
- Lamp Voltage: 72V
- Lamp Wattage: 30 Watts
- Output UVC Watts: 10 Watts
- Output uW/cm^2 @ 1m: 90
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: 4 pin cell base on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
This UVC bulb is a compatible replacement for use with germicidal UV-C system models:
- RGTS 24 HO
Steril-Aire Bulb Part Number: 22000200
Steril-Aire System Model: RGTS 24 HO, RGTS24HO, RGTS-24-HO
