Germicidal UV Bulbs - Steril-Aire 22000300 UV Bulb - Equivalent Replacement Lamp
Germicidal UV Bulbs - Steril-Aire 22000300 UV Bulb - Equivalent Replacement Lamp Germicidal UV Bulbs - Steril-Aire 22000300 UV Bulb - Equivalent Replacement Lamp Germicidal UV Bulbs - Steril-Aire 22000300 UV Bulb - Equivalent Replacement Lamp Germicidal UV Bulbs - Steril-Aire 22000300 UV Bulb - Equivalent Replacement Lamp Steril-Aire 22000300 UV Bulb - Equivalent Replacement Lamp

Steril-Aire 22000300 UV Bulb - Equivalent Replacement Lamp
Free Gift

SKU:

UV Bulb Price Match Guarantee
$52.99 $80.00

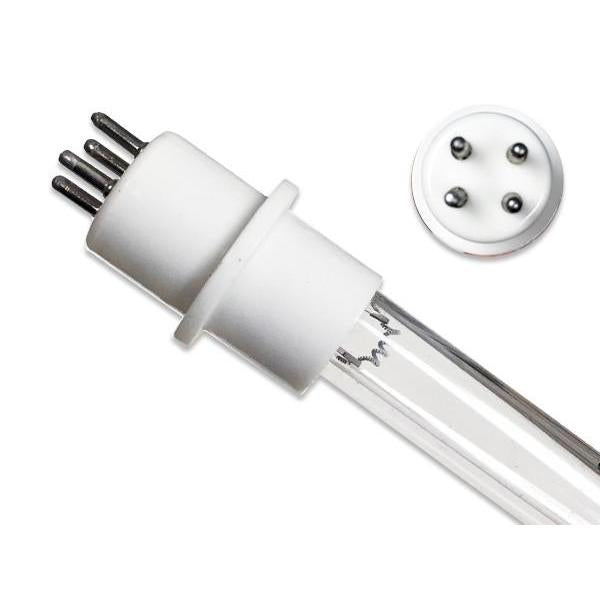

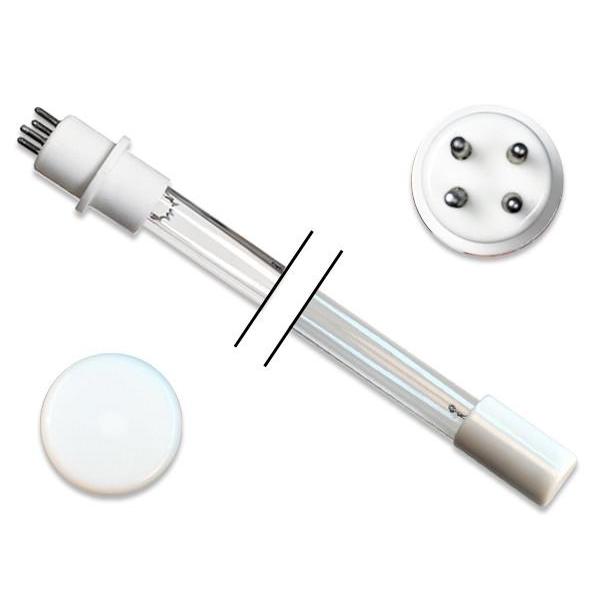

22 Watt Air Treatment UV Bulb - 4 Pin Cell Base on a Single End

Our 22 watt Steril-Aire 22000300 UV bulb is the 100% compatible replacement for use with Steril-Aire RGTS 16 HO air purifiers. This UVC bulb destroys 99.9% of bacteria, molds, protozoa, viruses, and yeasts.

The Steril-Aire 22000300 lamp provides up to one year of worry-free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb but its germ killing ability quickly diminishes. Remember to wear proper eye, face and skin protection before exposing yourself to UV light.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.



Common Applications for use:
  • Air Conditioners
  • Air Purifiers
  • Beverage Services and Processing
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Surface Disinfection
Common Locations for use:
  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships
Specifications:
  • Total Length: 16.14 inches (410mm)
  • Arc Length: 12.99 inches (330mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 52V
  • Lamp Wattage: 22 Watts
  • Output UVC Watts: 8 Watts
  • Output uW/cm^2 @ 1m: 70
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin cell base on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Spectral Output of Germicidal UVC Light Bulbs

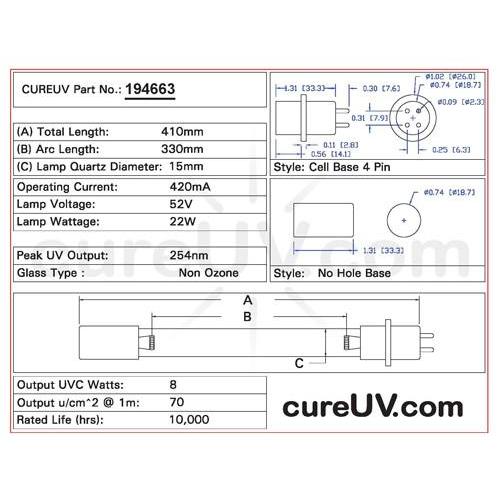

Drawing of Replacement UVC Bulb Item # 194663 (PDF)

Drawing of Steril-Aire 22000300 UVC Bulb - item # 194663

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Steril-Aire brand UVC bulbs. All Steril-Aire brand names, trademarks, and logos are property of Steril-Aire.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
