Germicidal UV Bulbs - Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb
Germicidal UV Bulbs - Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb

Sterilight R-Can S330RL Compatible Generic Replacement UVC Light Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$43.00

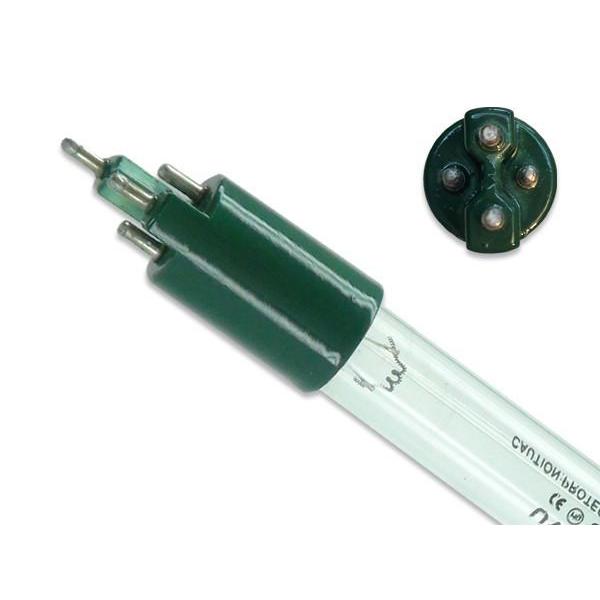

4 Pin Stepped on a Single End - 15 Watt Germicidal Water Treatment Bulb

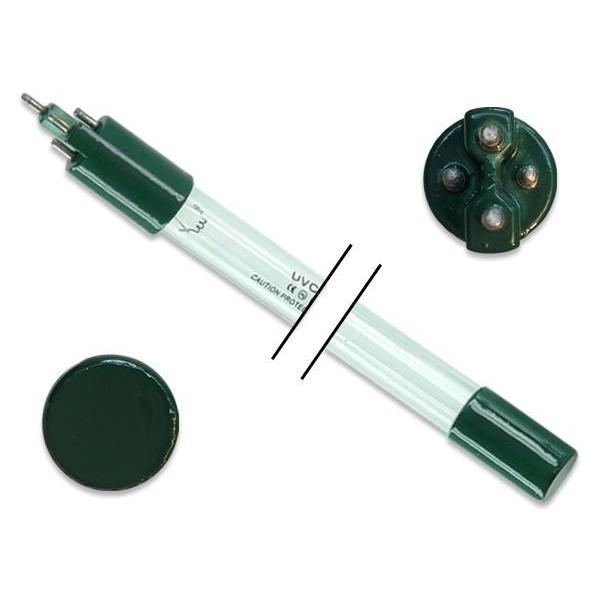

The Sterilight R-Can S330RL Replacement UVC Light Bulb is a four pin stepped on a single end germicidal light bulb. The 15Watt UVC light bulb has an arc length of 10.04 inches and a total length of 12.99 inches. The lamp has a voltage of 50V and has ceramic as its base material. The UVC light bulb has a rated life of 10,000 hours and is set in non-ozone glass type. The lamp emits a peak output of 253.7nm that alters the genetics of the microorganisms in water.

People are of the opinion that this system provides a safe solution against microorganisms such as giardia and cryptosporidium that are considered to be chlorine resistant. UV light bulb such as this one emits energy at 253.7 nm wavelength and this energy reacts photo-chemically with the genetics of the microorganisms. This replacement bulb is compatible with Germicidal OEM water disinfection filters, UV sterilizers and Ultraviolet water purifiers.  Since this method is only physical process, it is an environmental friendly option to chemicals and their by-products.

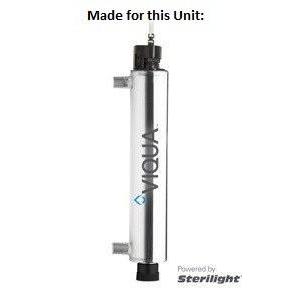

The UVC bulb is compatible for use with the following models:

  • S2Q
  • S2Q/2
  • S2Q-Gold
  • S2Q-Gold/2
  • S2Q-PA
  • S2Q-PA/2
  • SC4
  • SC4/2
  • SSM-17

Technical Specifications:

  • Total Length: 12.99 inches (330mm)
  • Arc Length: 10.04 inches (255mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 336mA
  • Lamp Voltage: 50V
  • Lamp Wattage: 15 Watts
  • Output UVC Watts: 5 Watts
  • Output uW/cm^2 @ 1m: 50
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin stepped on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192683 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

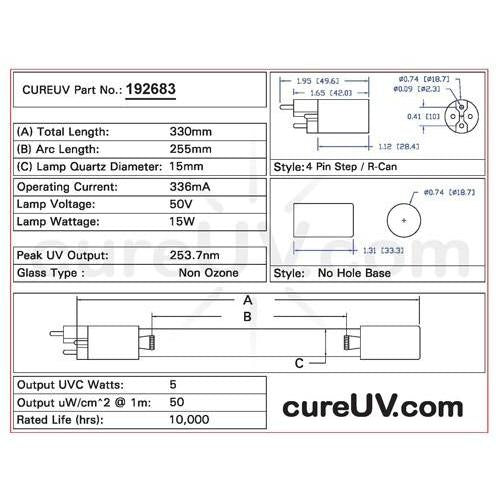

Drawing of Sterilight R-Can S330RL UVC Bulb - item # 192683

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Sterilight R-Can brand UVC bulbs. All Sterilight R-Can brand names, trademarks, and logos are property of Sterilight R-Can.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment. CureUV is not associated with TrojanUV. Brand names, trademarks, and logos are property of their respective owners.
