Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb
Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb

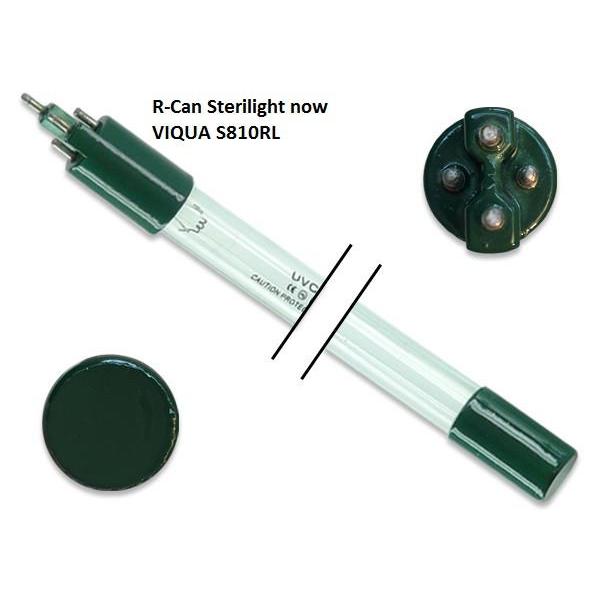

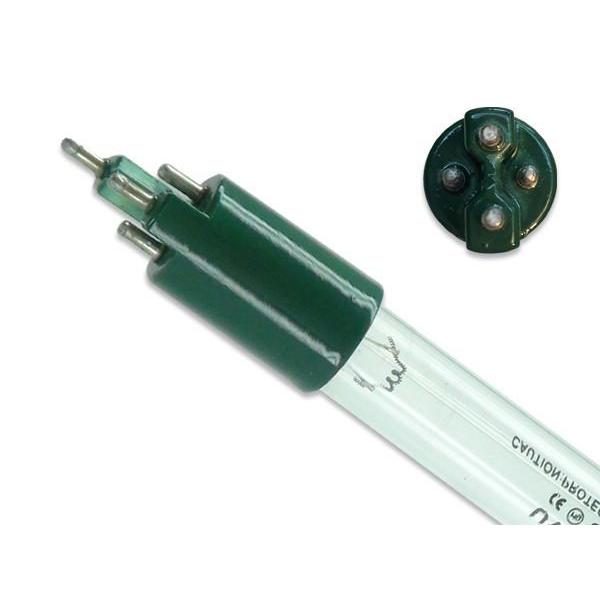

Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$65.99

4 Pin Stepped on a Single End - 38 Watt Germicidal Water Treatment Bulb

The Sterilight R-CAN S810RL Replacement UVC Light Bulb is a four-pin stepped on a single end 38 Watts germicidal water treatment bulb. The replacement UVC light bulb has a total length of 31.89 inches and an arc length of 28.9 inches. The lamp has a voltage of 90V and a wattage of 38 Watts. The ceramic bulb has a rated life of 12,000 hours after which we recommend that you replace the bulb for better lamp performance.

Researchers believe that using CureUV’s germicidal UVC system may have a lethal effect on bacteria, protozoa, molds, viruses, and other harmful pathogens. The water treatment bulb produces a peak UV output of 253.7 nm. This wavelength destroys the genetic structure of the microorganisms and makes the water that passes through it absolutely safe for consumption.

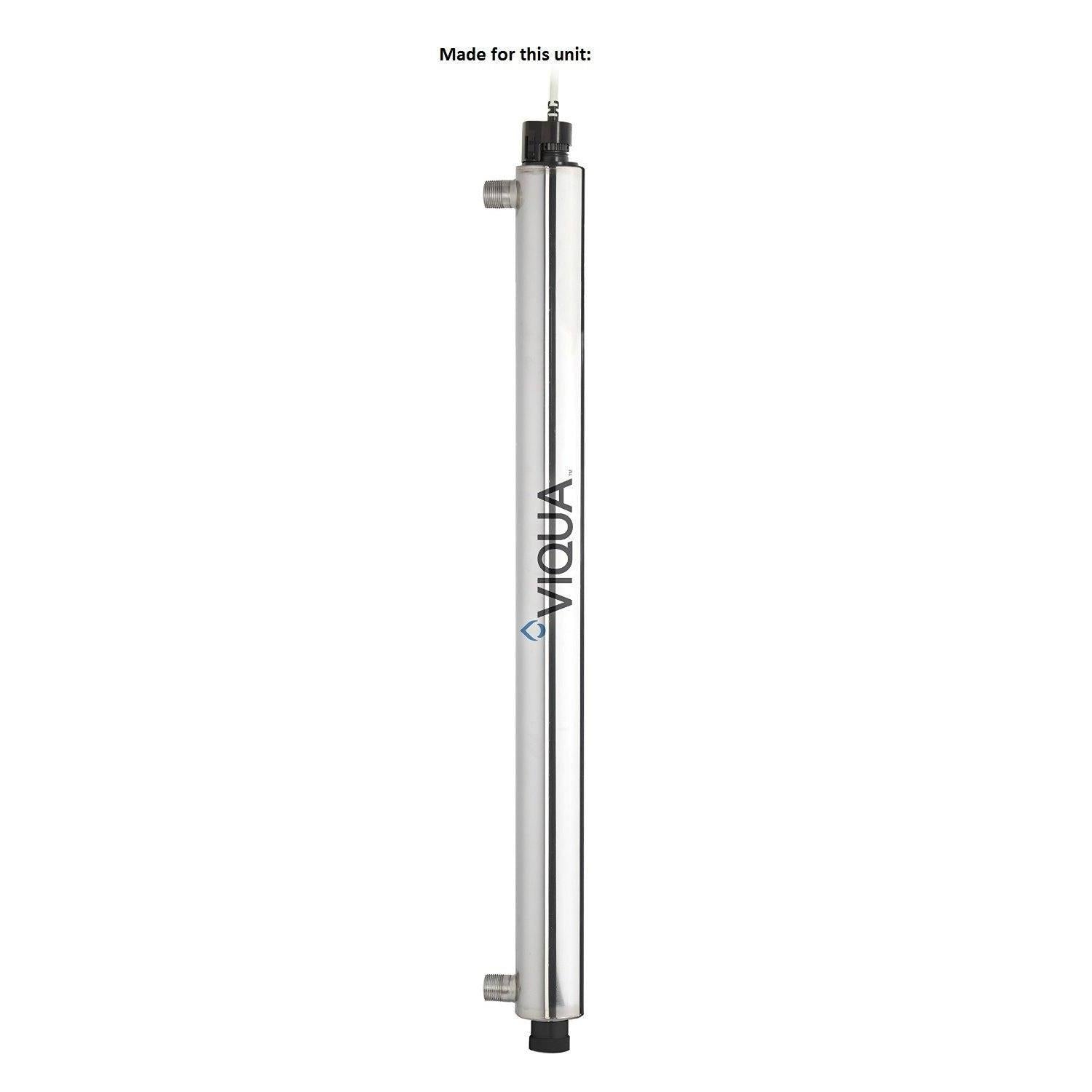

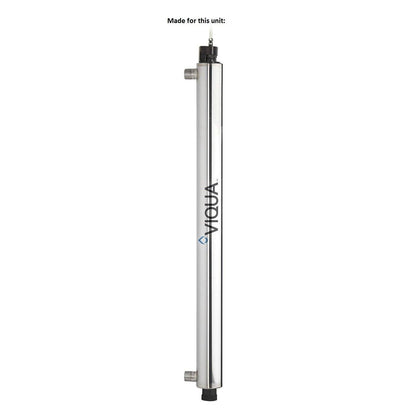

The UVC bulb works for the following bulb models:

  • S8Q
  • S8Q/2
  • S8Q-Gold
  • S8Q-Gold/2
  • S8Q-PA
  • S8Q-PA/2
  • SSM-37
  • SSM-37/2

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

  • Total Length: 31.89 inches (810mm)
  • Arc Length: 28.9 inches (734mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 90V
  • Lamp Wattage: 38 Watts
  • Output UVC Watts: 14 Watts
  • Output uW/cm^2 @ 1m: 130
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin stepped on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 12,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Spectral Output of Germicidal UVC Light Bulbs

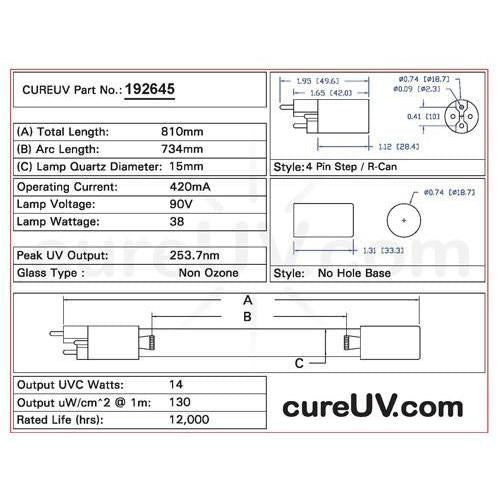

Drawing of Replacement UVC Bulb Item # 192645 (PDF)

Drawing of Sterilight R-Can S810RL UVC Bulb - item # 192645

UVC Light Disinfection Dosage Chart (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Sterilight R-Can brand UVC bulbs. All Sterilight R-Can brand names, trademarks, and logos are property of Sterilight R-Can.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products 100% compatible with the original equipment. CureUV is not associated with Sterilight R-Can. Brand names, trademarks, and logos are property of their respective owners.
