Sterilight R-Can S8RL/4P Compatible Generic Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$50.00

4 Pin on a Single End - 41 Watt Germicidal Water Treatment Bulb

The Sterilight R-CAN S8RL/4P Replacement UVC Light Bulb is a four pin on a single end light bulb that has an arc length of 30.12 inches and a total length of 33.19 inches. The UVC light bulb has lamp wattage of 41 Watts and is set in non ozone glass type. With ceramic as its base material, the replacement light bulb has a lamp quartz diameter of 15mm.

The lamp makes use of UV-C light to inactivate bacteria, protozoa, yeast and other harmful pathogens present in water. It releases a short wavelength of 253.7nm that acts on the genetics of the microorganisms. The fixture provides low mercury dosage that meets environmental standards.

The UVC light bulb is compatible with the following bulb models:

  • S12QA
  • S24QA
  • S24QAUV
  • SUV 24-1000

Common Applications:

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Technical Specifications:

  • Total Length: 33.19 inches (843mm)
  • Arc Length: 30.12 inches (765mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Wattage: 41 Watts
  • Output UVC Watts: 15 Watts
  • Output uW/cm^2 @ 1m: 136
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192588 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

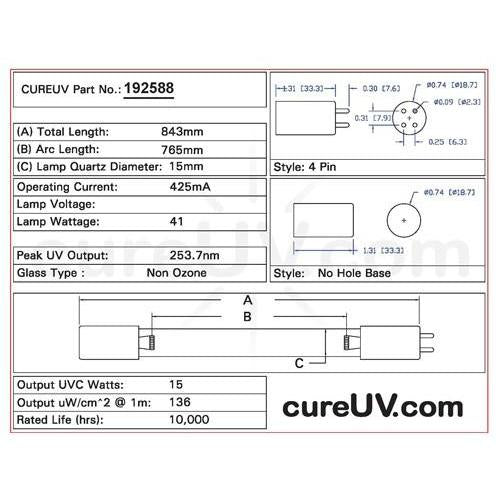

Drawing of Sterilight R-Can S8RL UVC Bulb - item # 192588

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Sterilight R-Can brand UVC bulbs. All Sterilight R-Can brand names, trademarks, and logos are property of Sterilight R-Can.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment. CureUV is not associated with TrojanUV. Brand names, trademarks, and logos are property of their respective owners.
