Germicidal UV Bulbs - Sterilight R-Can S950RL-HW Compatible Generic Replacement UVC Light Bulb
Germicidal UV Bulbs - Sterilight R-Can S950RL-HW Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S950RL-HW Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S950RL-HW Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S950RL-HW Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S950RL-HW Compatible Generic Replacement UVC Light Bulb

Sterilight R-Can S950RL-HW Compatible Generic Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$71.00

4 Pin Stepped on a Single End - 100 Watt Germicidal Water Treatment Bulb

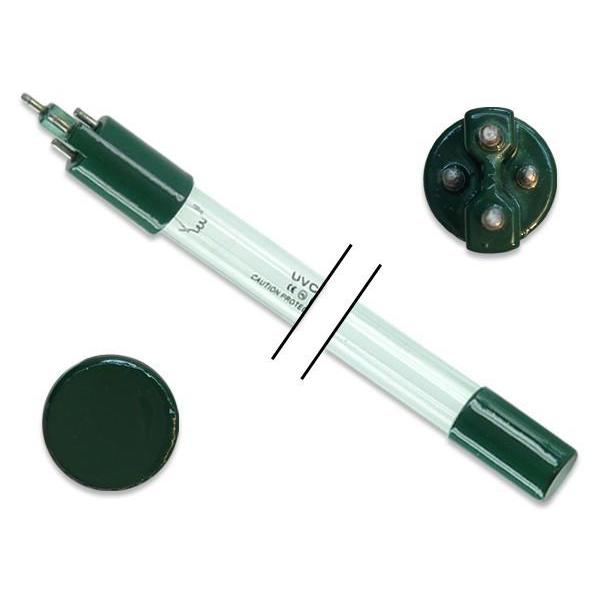

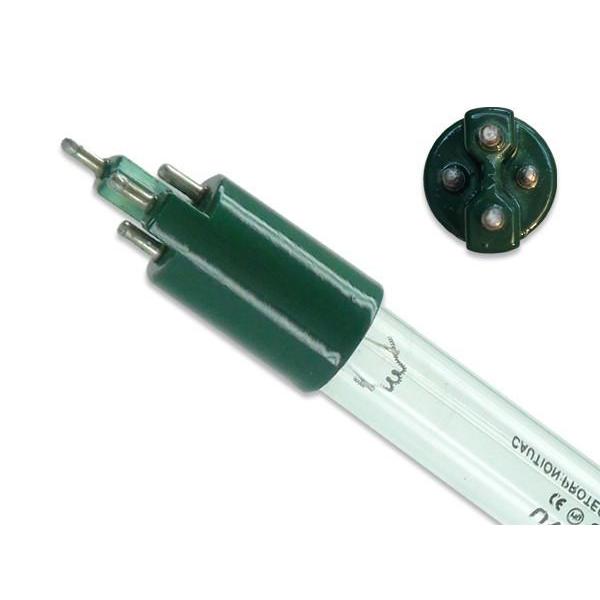

The Sterilight R-CAN S950RL-HW Replacement UVC Light Bulb is a four pin stepped on a single end germicidal bulb. The 100 Watt replacement light bulb has an arc length of 38.19 inches and a total length of 41.73 inches. The water treatment bulb has a lamp voltage of 120V and is set in a non-ozone glass type. With ceramic as its base material, the UVC light bulb has a peak output of 253.7nm and works for the following replacement bulb models:

  • SP950-HW
  • SPV-950

Researchers are of the opinion that UV water purification provides a safe solution as this method of sterilization is a purely physical process and does not alter the pH, chemistry or taste of water. This method is both economic and environmental friendly and is a much better option to chemicals and their bi-products.

Common Applications:

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Technical Specifications:

  • Total Length: 41.73 inches (1060mm)
  • Arc Length: 38.19 inches (970mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 800mA
  • Lamp Voltage: 120V
  • Lamp Wattage: 100 Watts
  • Output UVC Watts: 35 Watts
  • Output uW/cm^2 @ 1m: 300
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin stepped on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194073 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

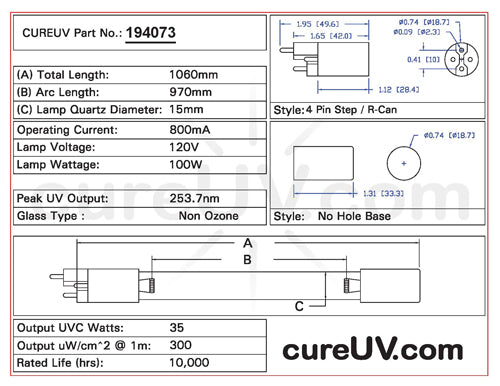

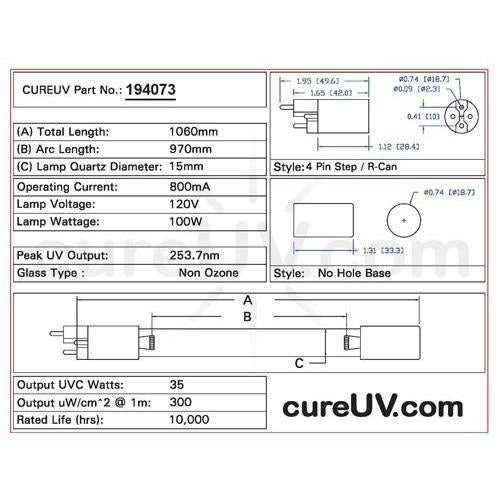

Drawing of Sterilight R-Can S950RL-HW UVC Bulb - item # 194073

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Sterilight R-Can brand UVC bulbs. All Sterilight R-Can brand names, trademarks, and logos are property of Sterilight R-Can.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment. CureUV is not associated with TrojanUV. Brand names, trademarks, and logos are property of their respective owners.
