UV Curing Lamp - Superfici Part # UVH 14222G1 UV Curing Lamp Bulb
UV Curing Lamp - Superfici Part # UVH 14222G1 UV Curing Lamp Bulb UV Curing Lamp - Superfici Part # UVH 14222G1 UV Curing Lamp Bulb

Superfici Part # UVH 14222G1 UV Curing Lamp Bulb
Free Gift

SKU: 191297

UV Bulb Price Match Guarantee
$375.00

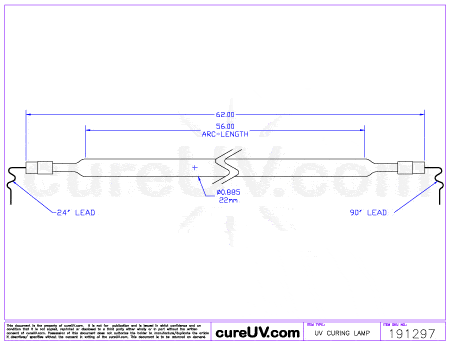

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Gallium Wavelength - 56 Inch Arc Length - 62 Inch Total Length (end to end)

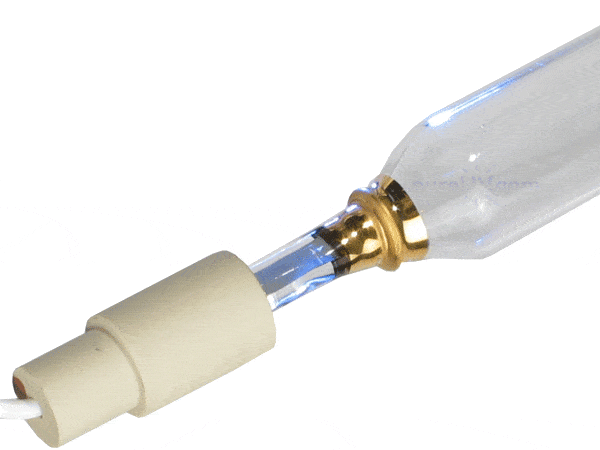

The Superfici Part # UVH 14222G1 UV Curing Lamp Bulb is a 100% guaranteed replacement lamp bulb that is filled with gallium and has an arc length of 56 inches. The lamp bulb has an overall length of 62 inches and an arc length of 56 inches. The replacement lamp bulb is completely compatible to the Superfici UV systems and works well for the following part number:

  • UVH-14222G1

The demand for UV curing bulbs is increasing, mainly in the printing industry as the light bulbs help in instantly drying printing inks. Tradition methods of curing used solvents and heat, which meant that harmful volatile gases evaporated. Curing using UV method involves no heat and solvents, which makes this an eco-friendly option. The UV lamp is subjected to strict quality control measures.

Technical Specifications:

  • Fill: Gallium
  • Quartz: Standard
  • Arc Length: 56 Inches
  • Overall Length: 62.00 Inches

UV Spectral Output of a Gallium UV Lamp

UV Spectral Output of a Gallium UV Lamp (PDF)

56 In. Arc UV Lamp - Gallium - Superfici UV System - Efsen Pt # UVH 14222G1 (PDF)

56In. Arc UV Lamp - Gallium - Superfici UV System - Efsen Pt # UVH 14222G1

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
