UV Curing Lamp - Svecia Part # EL056A00 UV Curing Lamp Bulb

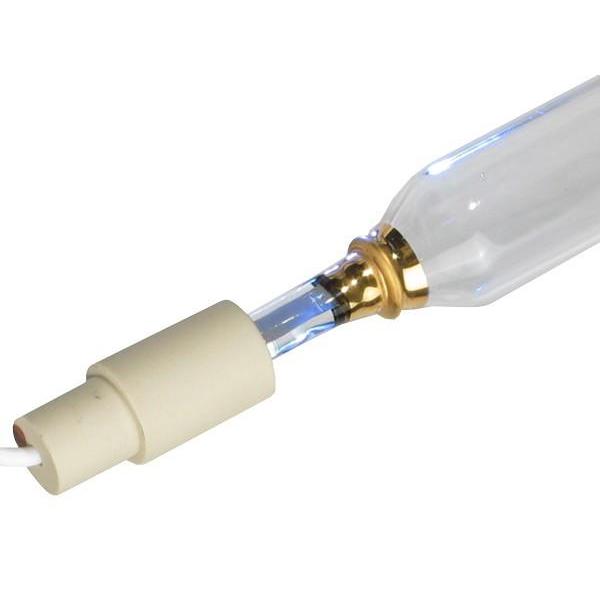

Svecia Part # EL056A00 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 46 Inch Arc Length - 51.25 Inch Total Length (end to end)

The Svecia Part # EL056A00 UV Curing Lamp Bulb is a mercury filled lamp bulb that has an arc length of 46 inches and a total length of 51.25 inches. The 300 WPI lamp bulb has a tube diameter of 25mm and exceeds OEM standards of UV curing bulb performance. The lamp bulb is compatible to the Svecia UV systems and works with the following part numbers:

  • EL056A00
  • UVC-342
  • J425C2HGC1
  • H46B3F1

The UV printer lamp bulb is manufactured in the USA and has a predictable life. The replacement lamp helps in drying inks in signs and graphics. CureUV.com provides UV lamps for printers in specific arc lengths and spectral fills.

A curing lamp bulb enables better results than infra red drying. It helps in resisting smudges. Further, it does not release volatile organic compounds in the air. The quartz plate works as filler between the lamp and the system. The quartz plate prevents grit, contaminants and dirt from building up on the lamp.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 46 inches
  • Total Overall Length (TOL): 51.25 inches
  • Tube Diameter: 25mm
  • Wattage Per Inch: 300 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

  • *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgSvecia Part # EL056A00 UV Curing Lamp Bulb
  • *All UV lamps listed are compatible brand UV products. We do not sell Svecia brand UV lamps. All Svecia brand names, trademarks and logos are property of Svecia.
  • *Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.
  • Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
