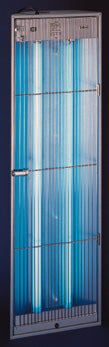

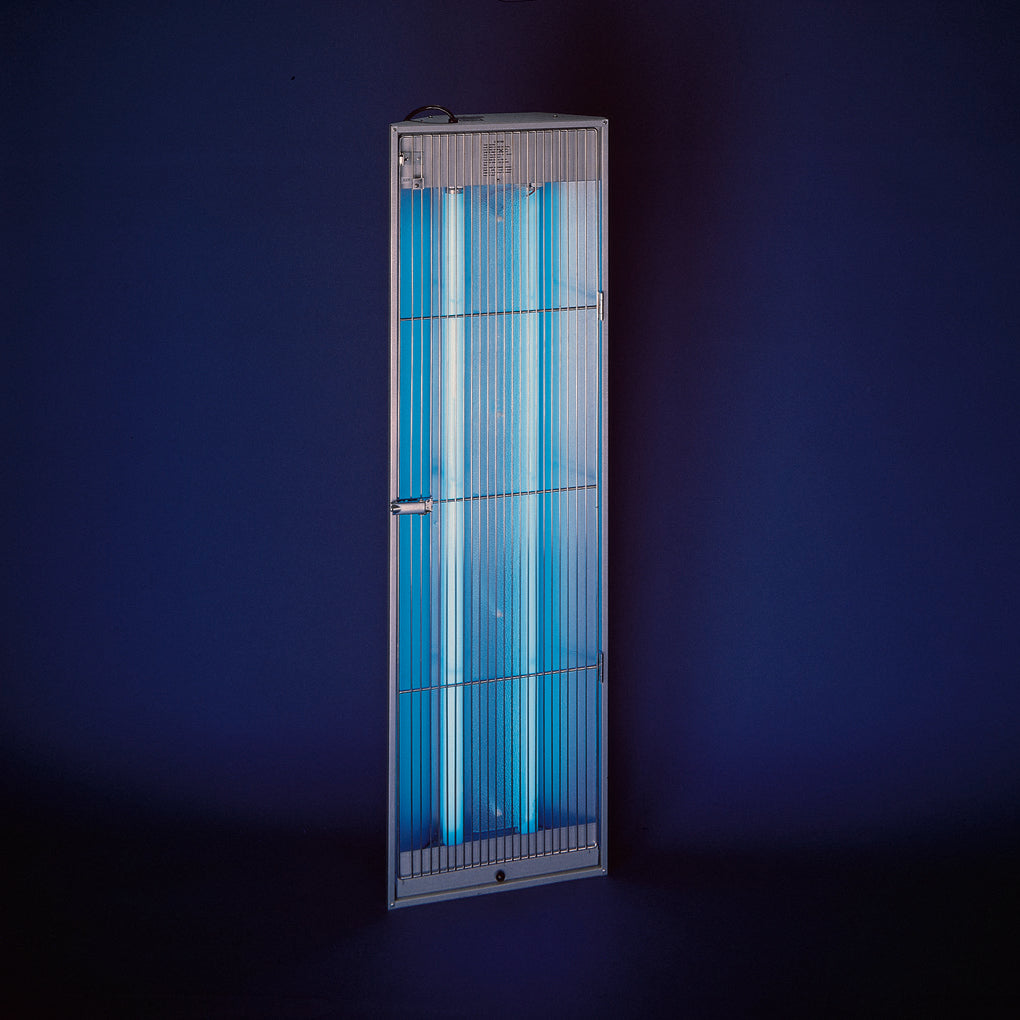

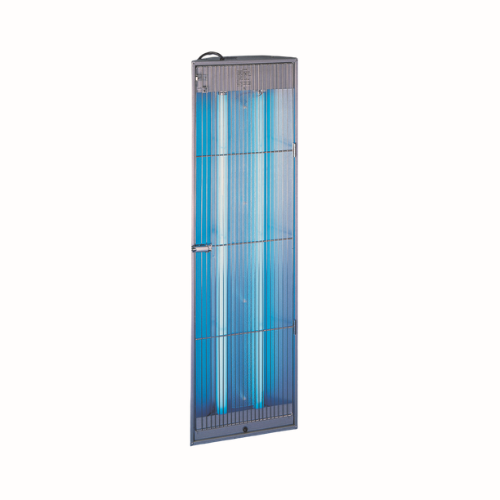

The Don 601T Flying Insect UV Light Trap

The Gilbert 601T “The Don” is a professional UV flying insect light trap designed for excellent effectiveness, silent capture, and versatile installation. This unit can be mounted in a corner or vertically on a flat wall, making it suitable for commercial, industrial, and indoor service areas where reliable flying insect control is needed.

Equipped with two 40-watt insect attractant lamps, the 601T provides a wide angle of attraction to improve fly-capture performance. For best results, the trap should be mounted low, with the top of the unit positioned below 5 ft. Lamps should be replaced annually to maintain continued performance.

Features & Benefits:

• Dual UV Attractant Lamps: Use two F40BL350 or equivalent 40-watt insect attractant lamps for strong attraction of flying insects.
• Wide Attraction Angle: Designed to improve visibility to flying insects across the installation area.
• Flexible Mounting Options: Keyholes on the back allow for corner or flat-wall vertical mounting.
• Silent Operation: Provides discreet insect control without loud zapping or disruptive noise.
• Durable Aluminized Steel Construction: Frame and interior structure are made from aluminized steel, the same durable material commonly used in lifetime automotive mufflers.
• Easy Service Access: Nickel-chromed guard door swings open for access to the catch tray, grid, reflective surfaces, and lamps.
• Removable Catch Tray: The secure catch tray can be easily removed for emptying and routine cleaning.
• Safety Interlock Switch: Automatically shuts off the trap when the guard door is opened.

Installation:

The 601T includes keyhole slots on the back of the unit for either corner mounting or flat-wall mounting. Low positioning is recommended for best performance, with the top of the trap installed below 5 ft. whenever possible.

Electrical Specifications:

• Power Cord: 6 ft. 3-wire grounded power cord
• Voltage: 115V / 60Hz
• Current Draw: 0.84 amp
• Total Draw: 93 watts, measured with RMS meter

Technical Specifications:

• Lamps: Two F40BL350 or equivalent 40-watt UV insect attractant lamps
• Total Lamp Power: 80 watts
• Dimensions: 54 3/16" x 16" x 4 3/4"
• Weight: 29 lbs.
• Shipping Weight: 37 lbs.

This Product is UL Certified

Warranty:

Includes a one-year warranty, excluding lamps.

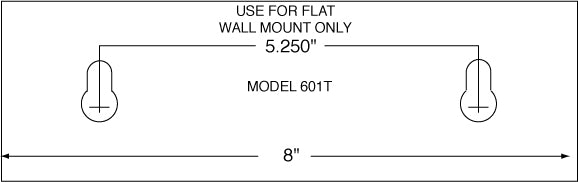

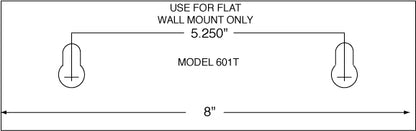

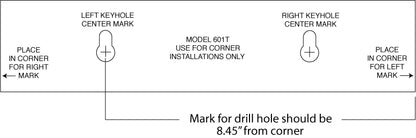

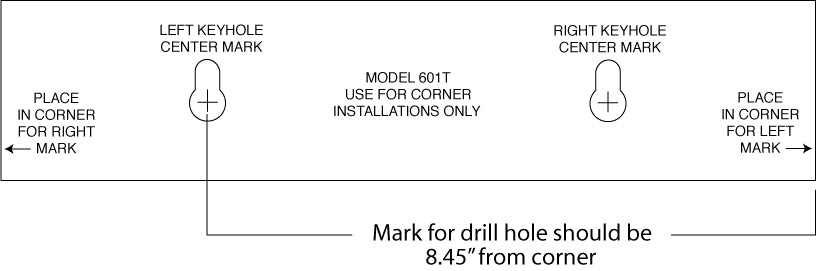

Mounting Templates
