Total-Cure Array Shutter UV System - 14x14 inch cure coverage
This TOTAL-CURE UV Array System (14x14).Features:
- High/low power output, 4 lamp irradiator

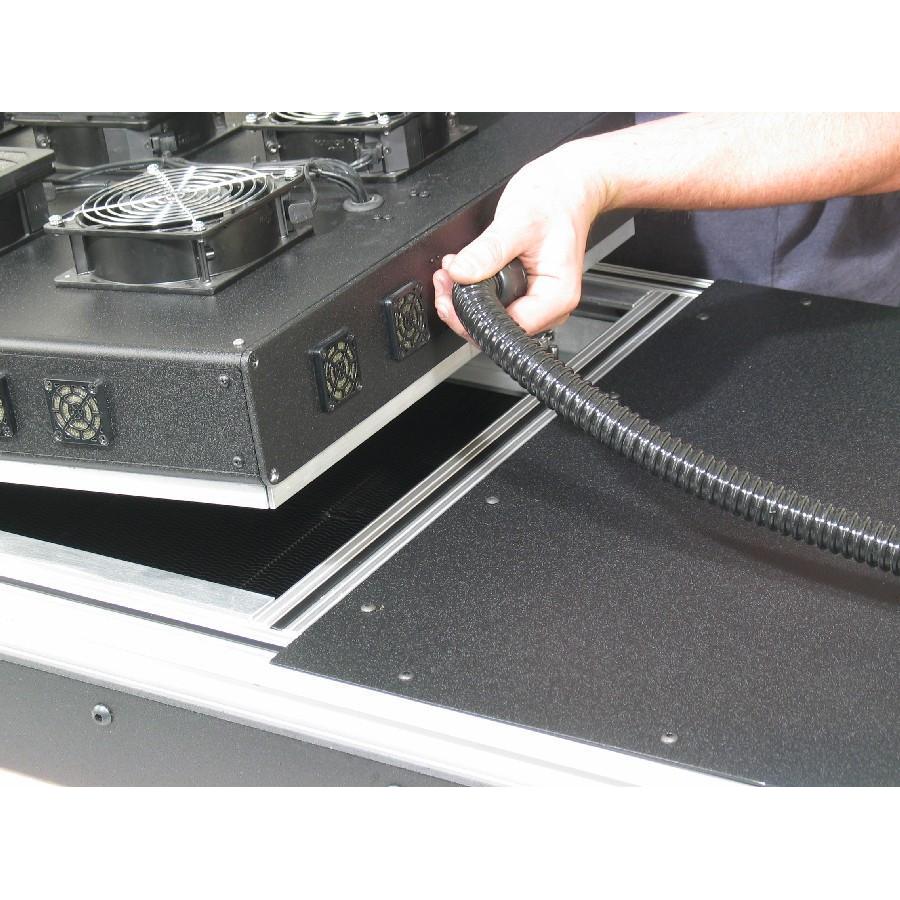

- Irradiator (silver brush finish aluminum) with 14 inch arc length and 15' of cable with shuttered option
- Fixed wide band energy delivery UV reflector with 98% reflectivity
- User friendly pre-determined terminal points for easy control integration into other equipment
- Turn key system with dry contact control signals

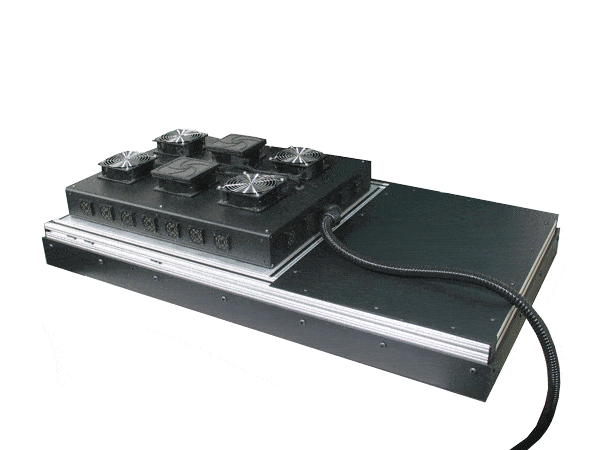

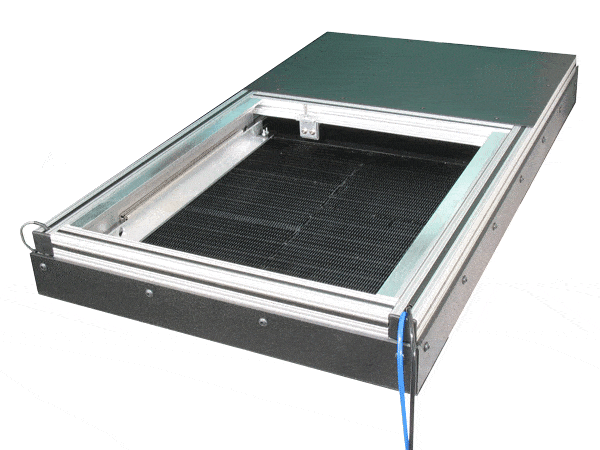

- Shutter base integrated into irradiator and can be used as mounting point

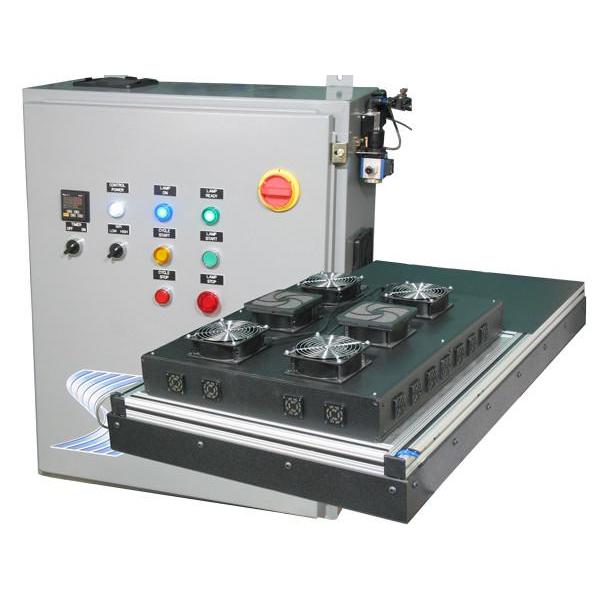

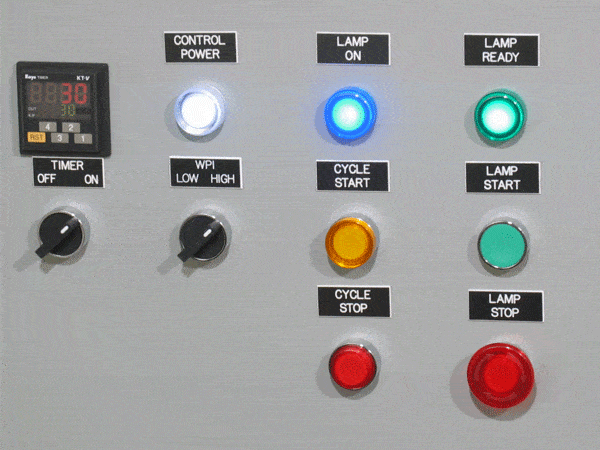

- Power supply cabinet with status indicator, safety interlock and control (shutter, start, ready signal, control stop)
- Operates Mercury 365nm and Metal 390nm type lamps
- 220 VAC/60Hz single phase (estimated 30 amp) and 40 PSI pneumatic pressure
- Programmable start timer with auto shutter open and close feature, providing consistent UV mJ dosage control
- On timer is indicated in minutes and seconds
- Regulated magnetic ballast and power supply enclosure with regulated cooling system
When ordering this product, you must use Oversized Heavy LTL Freight as your shipping method. Freight cost is for the Continental United States only. Other areas may require additional freight charges.
