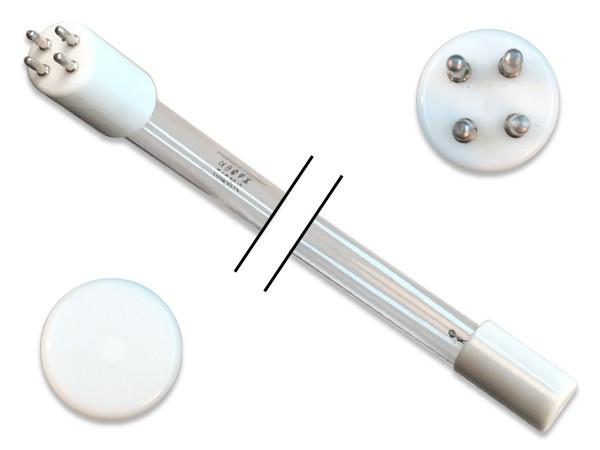

Guaranteed Replacement Ultraviolet (UV) Bulb - 4 Pin - 14 Watts - 11.3 Inch Length Lamp - Worry-Free Performance for 1 Year
The Ultra Dynamics 8101-PP.5 Replacement UVC Light Bulb is a four-pin on single end light bulb with a total length of 11.3" and an arc length of 8.86". The UVC lamp bulb has a peak output of 253.7nm that can destroy the microorganisms' DNA in water and render them harmless.
These specialized UVC lamps and bulbs from CureUV produce a high quantity of damaging ultraviolet light that destroys bacteria, molds, viruses, and other microorganisms in water without altering the composition, pH, or taste of water. CureUV’s replacement light bulb is 100% compatible with germicidal OEM air, and water disinfection filters, UV sanitizers, and ultraviolet purifiers. Unlike chemical purification methods, UV light purification is proven safe for human consumption. Our lamps are tested and certified by our expert quality assurance teams that maintain your safety as their primary concern. The lamp bulb gives you 12 months of worry-free operation and germ disinfection. Experts are of the opinion that the UV light bulb must be replaced annually for efficiency as the light bulb may continue to emit UV light even after a year but may not be effective in destroying waterborne microorganisms.
This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.
Do I need shatterproof coating?
Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.
The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:
- Beverage Services and Processing
- Drinking Water
- Food Services and Processing
- Municipal Wastewater
- Pools, Spas, and Water Features
- Well Water
Common Locations for use:
- Total Length: 11.3 inches (287mm)
- Arc Length: 8.86 inches (225mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 380mA
- Lamp Voltage: 225V
- Lamp Wattage: 14 Watts
- Output UVC Watts: 4 Watts
- Output uW/cm^2 @ 1m: 40
- Peak UV Output: 253.7nm
- Glass Type: Non-Ozone
- Base Style: 4 pin on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Spectral Output of Germicidal UVC Light Bulbs:
Drawing of Replacement UVC Bulb:
UVC Light Disinfection Dosage Chart (PDF)
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Ultra Dynamics brand UVC bulbs. All Ultra Dynamics brand names, trademarks, and logos are property of Ultra Dynamics.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
