UV Curing Lamp - Ultralight Part # M630281 UV Curing Lamp Bulb
UV Curing Lamp - Ultralight Part # M630281 UV Curing Lamp Bulb UV Curing Lamp - Ultralight Part # M630281 UV Curing Lamp Bulb

Ultralight Part # M630281 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$306.00

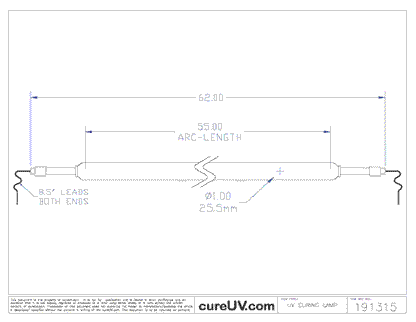

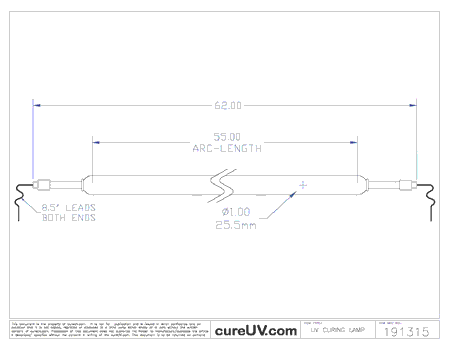

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 55 Inch Arc Length - 62 Inch Total Length (end to end)

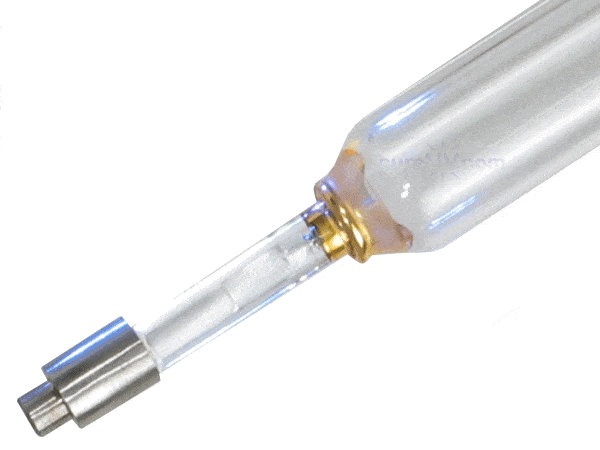

The Ultralight Part # M630281 UV Curing Lamp Bulb is a 300 WPI lamp bulb that is filled with mercury and has an arc length of 55 inches. The UV lamp bulb has an overall length of 62 inches and is compatible to the Ultralight UV systems and works well with the following part numbers:

  • M630281

With CureUV, you get cost-effective solutions that work for a variety of curing applications such as adhesives and inks. The UV curing bulb is designed to improve curing intensity and reduce the intensity of degradation as the bulb is being used. With fewer bulb changes the lamp bulb from CureUV are economical than original replacement parts. Manufactured in the USA, the quality solution comes with a predictable lifespan. The replacement lamp helps in drying of coatings of inks in signs and graphics. The UV lamp for printers comes with different arc lengths and spectral fills. The UV lamp bulb comes with a quartz plate that works as filter between the system and the lamp.

Technical Specifications:

  • Output Power: 300 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 55 Inches
  • Overall Length: 62.00 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

55 In. Arc UV Lamp 300 WPI - Ultralight UV System (PDF)

55In. Arc UV Lamp 300 WPI - Ultralight UV System

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
