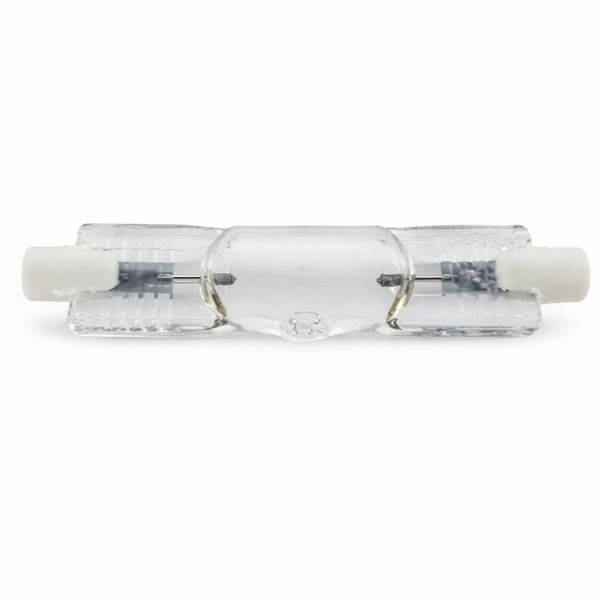

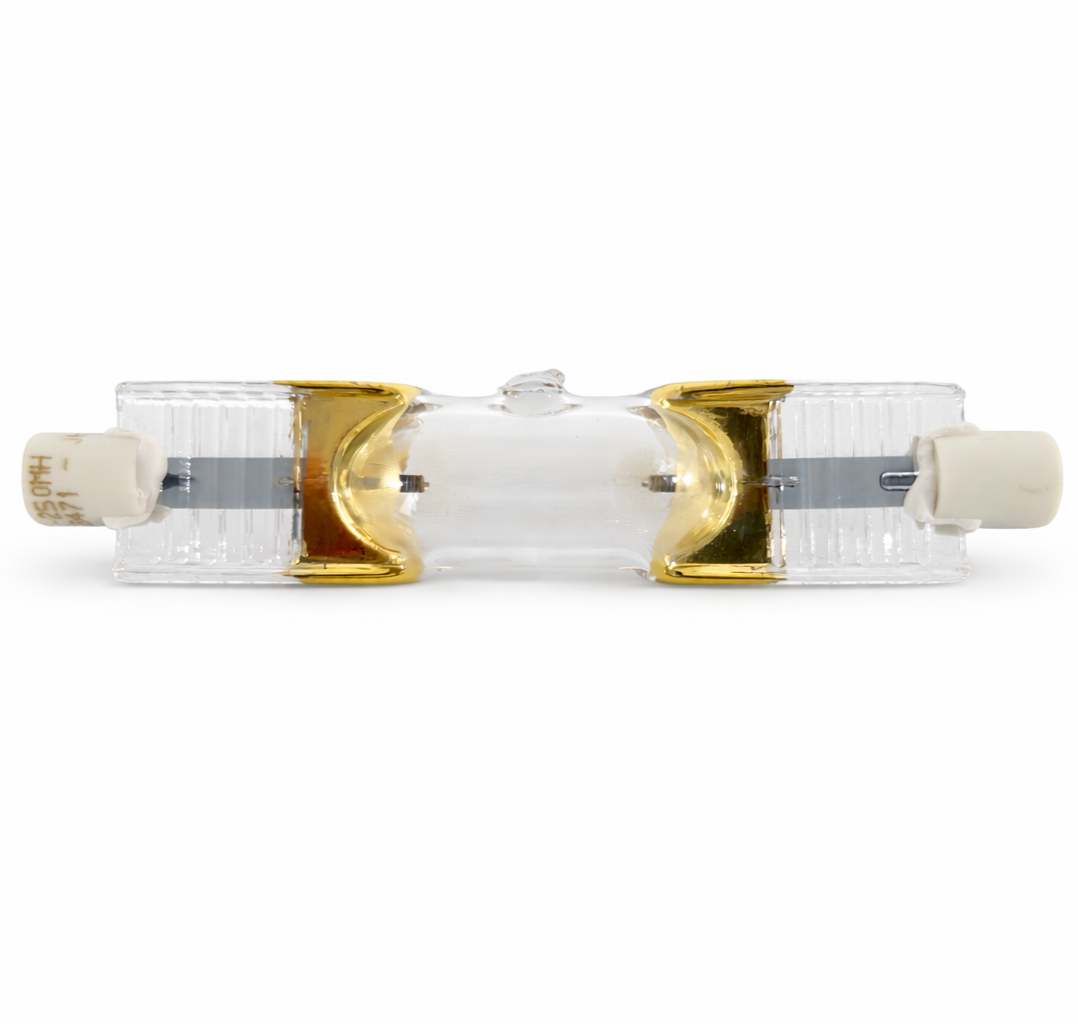

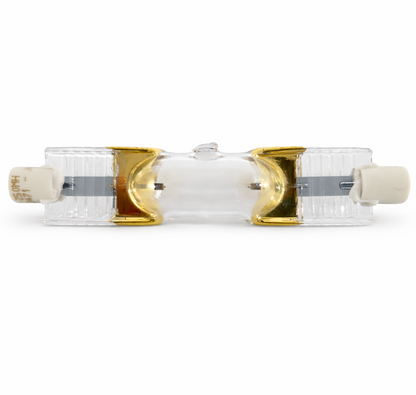

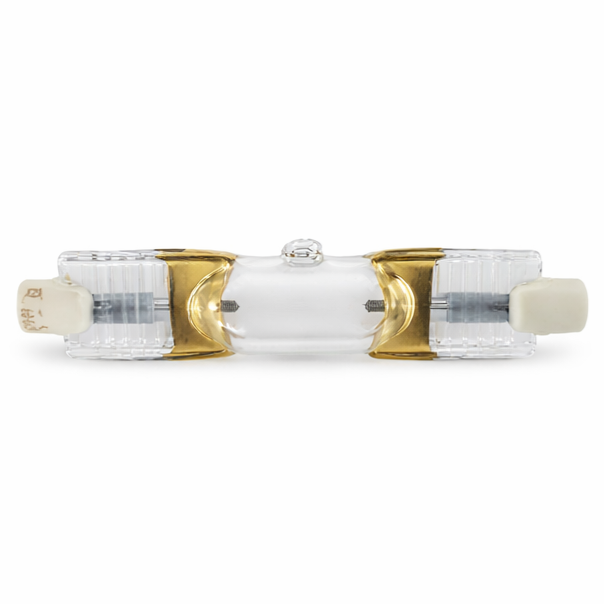

CureUV Brand Guaranteed Replacement for Ushio MHL-250 Metal Halide UV Lamp

The Ushio MHL-250 Metal Halide UV Lamp is a high-output, medium-pressure ultraviolet light source engineered for UV curing, photopolymer processing, and diazo exposure applications. Designed to deliver consistent, multi-spectrum UV energy, this lamp is widely used in industrial curing systems, graphic arts, and photolithography processes requiring reliable UVA performance.

Ushio MHL series lamps utilize a metal halide arc tube containing mercury, scandium, and additional metal halogens. During operation, the high-temperature arc discharge excites these materials to produce a controlled ultraviolet spectrum. While the mercury emission line at 365 nm remains present, the added metal halides modify and extend the spectral output to support photopolymer, multi-spectrum, and diazo processing requirements.

This lamp is the designated replacement lamp for the Hoenle UVAHAND 250 Hand-Held UV Lamp Curing System and must be operated with a bridge-gap ballast specifically designed for metal halide lamps, including appropriate thermal protection.

Features & Benefits

• High UV Output: Delivers strong, consistent ultraviolet intensity for demanding curing and exposure processes.
• Broad Spectral Range (300–450 nm): Supports photopolymer, diazo, and multi-spectrum UV applications.
• Metal Halide Technology: Combines mercury and metal halogens for enhanced wavelength control and performance.
• Medium-Pressure Design: Provides stable arc operation and reliable output over lamp life.
• System Compatibility: Designed for use with the Hoenle UVAHAND 250 curing system.
• Industrial Reliability: Suitable for continuous operation in production and inspection environments.

Typical Applications

• UV curing of coatings, inks, and adhesives
• Diazo processing
• Photopolymer exposure
• Printed circuit board (PCB) manufacturing
• Photolithography exposure
• Industrial graphic arts processing

Technical Specifications

• Lamp Type: Medium-pressure metal halide UV lamp
• Power: 250 W
• Voltage: 125 V
• Spectral Range: 300–450 nm
• Primary UV Line: 365 nm (mercury)
• Base Type: RSC
• Process Compatibility: Diazo, photopolymer, multi-spectrum UV

Part Numbers

• Ushio Part Number: MHL-250
• Alternate Part Numbers:
  • 5000089
  • Q253 Z4

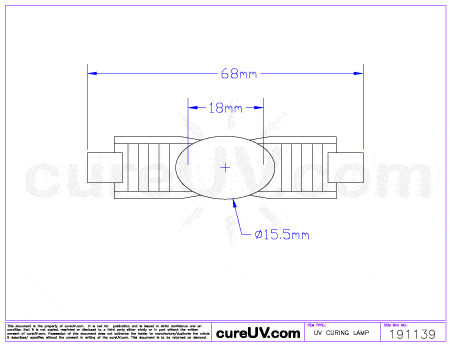

Drawing of Metal Halide UV Lamp Item # 191139
