UV Curing Lamp - Usital UV Curing Lamp Bulb
UV Curing Lamp - Usital UV Curing Lamp Bulb UV Curing Lamp - Usital UV Curing Lamp Bulb

Usital UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$225.00

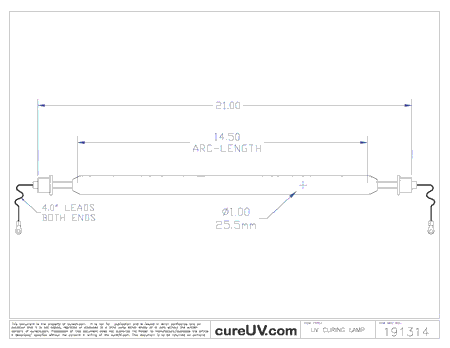

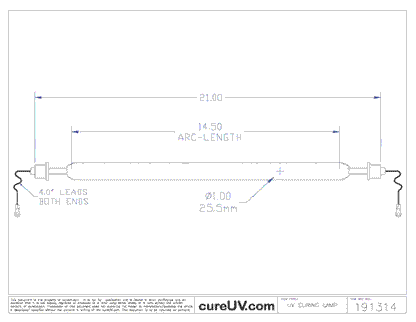

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 15 Inch Arc Length - 21 Inch Total Length (end to end)

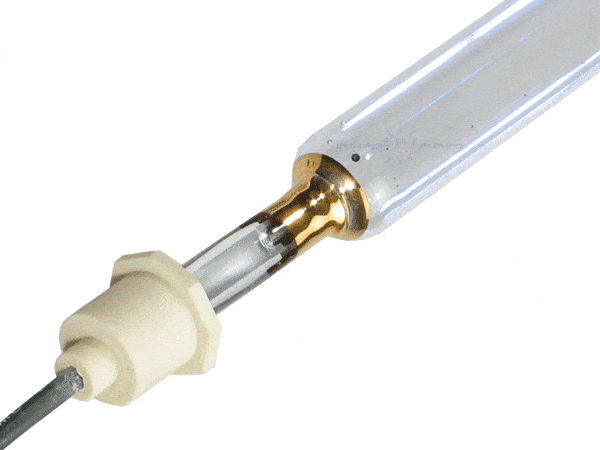

The Usital UV Curing Lamp Bulb has an output power of 400 WPI and a 15 inch arc length. Filled with mercury, the lamp bulb has an overall length of 21 inches and is compatible to the Usital UV systems.

The curing lamp bulb is a compatible replacement UV lamp that is manufactured in the USA and is considered the most effective, high output and high quality UV emitters in the market today. The CureUV light bulb exceeds OEM standards of curing bulb performance. The light bulb works to dry coating and inks in signs and graphics. The curing lamp consists of a quartz glass plate that protects lamps from debris and works as a filter between the curing system and the lamp. The plate prevents dirt, grit and contaminants from building up in the lamp.

Extensively used in the printing industry, the curing bulb is used mainly to cure inks and coatings. The lamp is considered a better option than infra red drying as it resists smudges. UV curing is also environmental friendly as it reduces the use of energy and most importantly prevents the release of volatile harmful compounds in the air.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 15 Inches
  • Overall Length: 21.00 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

15 In. Arc UV Lamp 400 WPI - Usital UV System (PDF)

15In. Arc UV Lamp 400 WPI - Usital UV System

 Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
