UVC Germicidal - UV Ballast For G48T5L Germicidal UV Light Bulb - Single/Multi

UV Ballast for G48T5L Germicidal UV Light Bulb - Single/Multi
Free Gift


UV Bulb Price Match Guarantee

  • Lamp Operation:
    • 1x lamp or 2x lamps T5 - 425ma
    • 180w max
    • Bi-pin or single ended lamps only
    • 1 or 2 lamps - G64 T5L/4P
    Ballast Dimensions: L: 10", W: 2.6", H: 1.26"
    Operating Voltage: 120-277VAC
    Frequency: 50/60Hz
    Max. Input Current: 1.6A
    Rated Max. Load: 150W
    Protection Output: Yes
    Protection Input: Fuse/MOV
    Over Current: Yes
    Ballast Lamp Starting Mode: Program
    Transient Protection: C62.41 Class A 7 strikes
    RFI/EMI: FCC Part 18 non-consumer
    Regulatory Approvals: UL/cULus
    Class P Inherent Thermal Protection: Type 1 Outdoor
    Sound Rating: "A"
    Power Factor: Equal to or > 0.97
    THD: < 10%
    Min. Operating Temp.: 0 degrees Celsius (32 degrees Fahrenheit)
    Max Case Temp.: 70 degrees Celsius (158 degrees Fahrenheit)

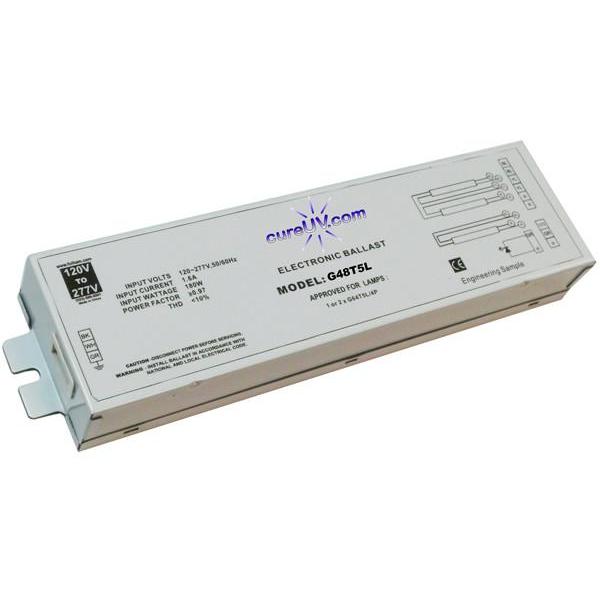

    UV Ballast for G48T5L Germicidal UV light bulb (single or multi lamp) provides a low-maintenance, energy-efficient solution for germicidal ultraviolet lighting applications, including water purification, air purification and surface disinfection.

    Electronic ballast with Program start, 1 or 2 lamps, 120-277 VAC with primary and secondary connectors, 70c max case, 3 year warranty, cULus/CE, with lamp operation LED connector. For lamp operation, case size details and other technical information, click the Specifications tab.

  • G48T5L
