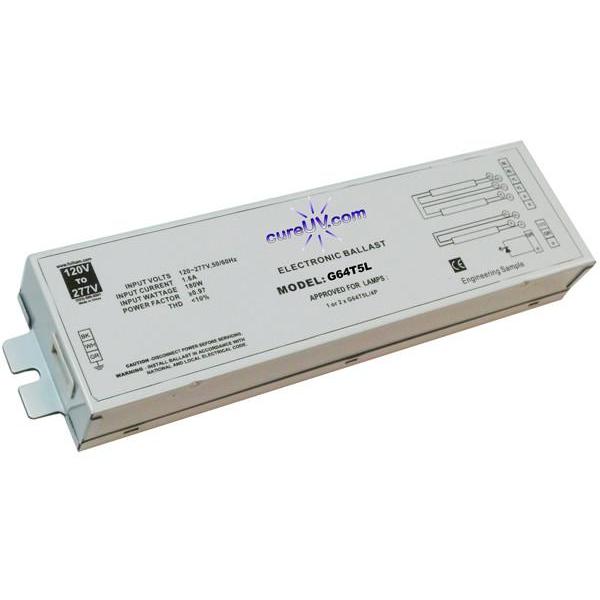

UV Ballast for G64T5L Germicidal UV Light Bulb - Single/Multi
UV Ballast for G64T5L Germicidal UV Light Bulb - Single/Multi
Regular price
$89.99 USD
Regular price
Sale price
$89.99 USD
Unit price
per
SKU:194611
Couldn't load pickup availability
| Lamp Operation: |
|
| Ballast Dimensions: | L: 10", W: 2.6", H: 1.26" |
| Operating Voltage: | 120-277VAC |
| Frequency: | 50/60Hz |
| Max. Input Current: | 1.6A |
| Rated Max. Load: | 150W |
| Protection Output: | Yes |
| Protection Input: | Fuse/MOV |
| Over Current: | Yes |
| Ballast Lamp Starting Mode: | Program |
| Transient Protection: | C62.41 Class A 7 strikes |
| RFI/EMI: | FCC Part 18 non-consumer |
| Regulatory Approvals: | UL/cULus |
| Class P Inherent Thermal Protection: | Type 1 Outdoor |
| Sound Rating: | "A" |
| Power Factor: | Equal to or > 0.97 |
| THD: | < 10% |
| Min. Operating Temp.: | 0 degrees Celsius (32 degrees Fahrenheit) |
| Max Case Temp.: | 70 degrees Celsius (158 degrees Fahrenheit) |
UV Ballast for G64T5L Germicidal UV light bulb (single or multi lamp) provides a low-maintenance, energy-efficient solution for germicidal ultraviolet lighting applications, including water purification, air purification and surface disinfection.
Electronic ballast with Program start, 1 or 2 lamps, 120-277 VAC with primary and secondary connectors, 70c max case, 3 year warranty, cULus/CE, with lamp operation LED connector.
Wiring Diagram for CureUV Ballasts
1 Bulb
2 Bulbs
