- 1 lamp - 180mm T5 UV, 287mm T5 UV
Ballast Dimensions: L: 3.07", W: 1.46", H: 1" Operating Voltage: 120VAC +/- 10% Frequency: 50/60Hz Maximum Current: 0.28A Ballast Lamp Starting Mode: Rapid Start Transient Protection: C62.41 Class A 7 strikes RFI/EMI: FCC CFR Title 47 Part 18 A non-consumer Regulatory Approvals: UL & cULus Listed - Type 1 or Type 2 Class P Inherent Thermal Protection: Type 1 Outdoor CCF: < 1.7 Normal Power Factor: > .5 Sound Rating: "A" Starting Temperature: 14 degrees Fahrenheit (-10 degrees Celsius) Ballast Max Case Temperature: 158 degrees Fahrenheit (70 degrees Celsius) Max Voltage Output (Circuit or to Ground): 592VAC

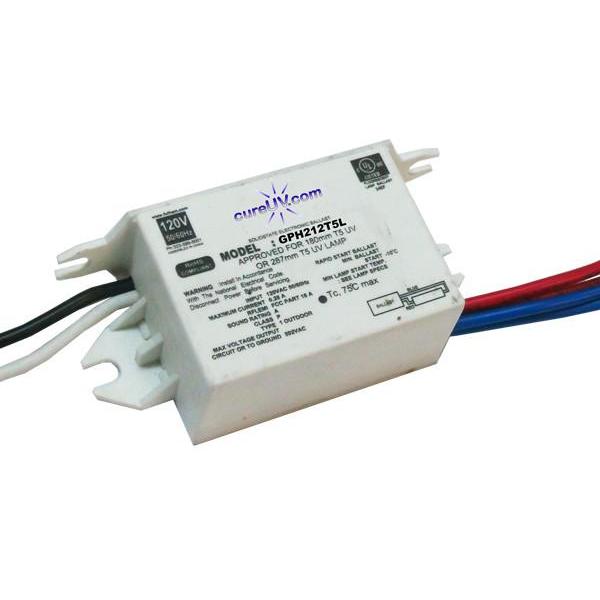

UV Ballast for GPH212T5L Germicidal UV light bulb (single lamp) provides a low-maintenance, energy-efficient solution for germicidal ultraviolet lighting applications, including water purification, air purification and surface disinfection.
Electronic ballast with Rapid start, 1 lamp, 120V AC with primary and secondary connectors, 70c max case, 3 year warranty, UL & cULus type 1 and 2 listed, with lamp operation LED connector. For lamp operation, case size details and other technical information, click the Specifications tab.
