- 1x lamp or 2x lamps T5 - 425ma
- 45w max
- Bi-pin or single ended lamps only
- 1x lamp - TUV36W, 38W / 41W T5
- 1 or 2 lamps - 10W / 14W / 15W / 17W / 21WT5, TUV18W, T3 17" (25WT5), T3 12" (16WT5)
Ballast Dimensions: L: 5.05", W: 2.36", H: 1.00" Operating Voltage: 120-277VAC Frequency: 50/60Hz Max. Input Current: 0.408A Rated Max. Load: 42W Protection Output: Yes Protection Input: Fuse/MOV Over Current: Yes Ballast Lamp Starting Mode: Program Transient Protection: C62.41 Class A 7 strikes RFI/EMI: FCC Part 18 B consumer Regulatory Approvals: UL/cULus Class P Inherent Thermal Protection: Type 1 Outdoor Sound Rating: "A" Min. Operating Temp.: 0 degrees Celsius (32 degrees Fahrenheit) Max Case Temp.: 75 degrees Celsius (167 degrees Fahrenheit)

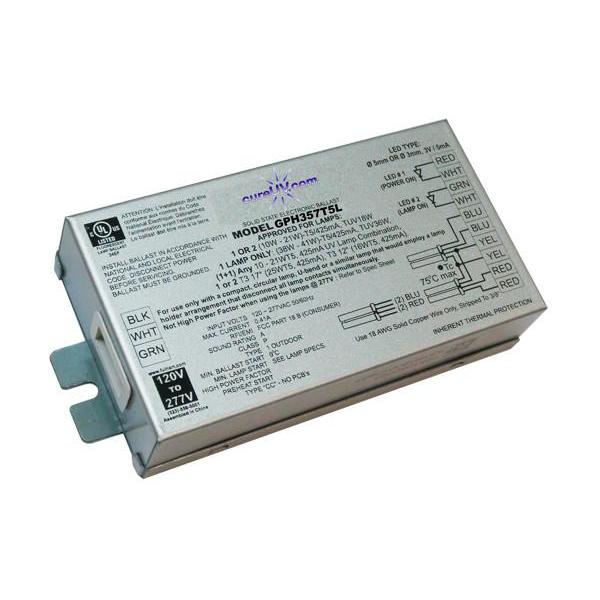

UV Ballast for GPH357T5L Germicidal UV light bulb (single or multi lamp) provides a low-maintenance, energy-efficient solution for germicidal ultraviolet lighting applications, including water purification, air purification and surface disinfection.
Electronic ballast with Program start, 1 or 2 lamp, 120-277 VAC with primary and secondary connectors, 70c max case, 3 year warranty, cULus, with lamp operation and AC power LED connector. For lamp operation, case size details and other technical information, click the Specifications tab.
