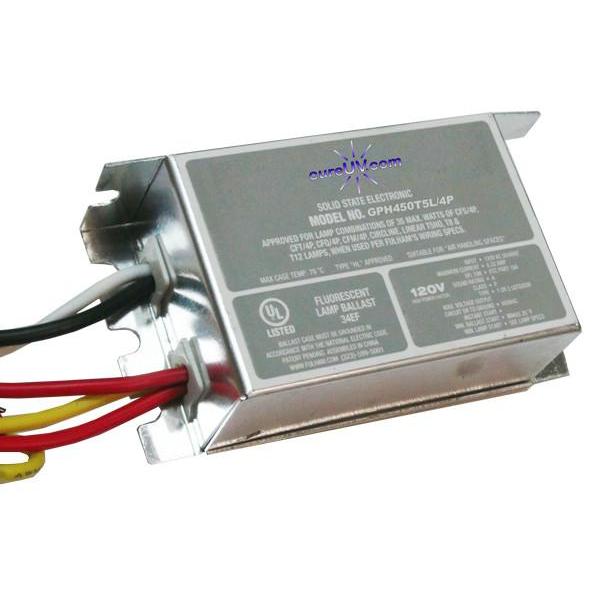

UV Ballast for GPH450T5L/4P Germicidal UV Light Bulb - Single
UV Ballast for GPH450T5L/4P Germicidal UV Light Bulb - Single
Regular price
$46.99 USD
Regular price
Sale price
$46.99 USD
Unit price
per
SKU:194612
Couldn't load pickup availability
| Lamp Operation: |
|
| Ballast Dimensions: | L: 3.3", W: 1.75", H: 1" |
| Operating Voltage: | 120VAC +/- 10% |
| Frequency: | 50/60Hz |
| ATHD: | Meets ANSI C82.11-1993 |
| Over Current: | Fuse |
| Maximum Current: | 0.32A |
| Ballast Lamp Starting Mode: | Instant Start |
| Ballast Min. Operating Temp.: | -20 degrees Fahrenheit (-30 degrees Celsius) |
| Ballast Maximum Case Temp.: | 158 degrees Fahrenheit (70 degrees Celsius) |
| Transient Protection: | C62.41 Class A 7 strikes |
| RFI/EMI: | FCC CFR Title 47 Part 18 A non-consumer |
| Protection/Output: | Open/Shorted Lamp |
| Regulatory Approvals: | UL/cUL Listed - Type 1 or Type 2 |
| Class P Inherent Thermal Protection: | Type 1 or 2 Outdoor |
| Open Circuit Voltage: | 600V RMS Max. |
| High Power Factor: | > .90 |
| THD: | < 30% |
| Sound Rating: | "A" |
| Max Voltage Output (Circuit or to Ground): | 600VAC |
| Current Crest Factor: | < 2.1 |
UV Ballast for GPH450T5L/4P Germicidal UV light bulb (single lamp) provides a low-maintenance, energy-efficient solution for germicidal ultraviolet lighting applications, including water purification, air purification and surface disinfection.
Versatile, solid state electronic ballast with Instant start, 1 lamp, 120 V AC with primary and secondary connectors, small case size, high power factor, light weight, 3 year warranty, UL/cUL listed type 1 or type 2, with lamp operation and AC power LED connector. For lamp operation, case size details and other technical information, click the Specifications tab.
- GPH450T5L/4P
- ATS1-421, TRI-12, TRI-20
- ATS4-450
Wiring Diagram for CureUV Ballasts
1 Bulb
2 Bulbs
