- 1x lamp or 2x lamps T5 - 425ma
- 180w max
- Bi-pin or single ended lamps only
- 1 or 2 lamps - G64 T5L/4P
Ballast Dimensions: L: 10", W: 2.6", H: 1.26" Operating Voltage: 120-277VAC Frequency: 50/60Hz Max. Input Current: 1.6A Rated Max. Load: 150W Protection Output: Yes Protection Input: Fuse/MOV Over Current: Yes Ballast Lamp Starting Mode: Program Transient Protection: C62.41 Class A 7 strikes RFI/EMI: FCC Part 18 non-consumer Regulatory Approvals: UL/cULus Class P Inherent Thermal Protection: Type 1 Outdoor Sound Rating: "A" Power Factor: Equal to or > 0.97 THD: < 10% Min. Operating Temp.: 0 degrees Celsius (32 degrees Fahrenheit) Max Case Temp.: 70 degrees Celsius (158 degrees Fahrenheit)

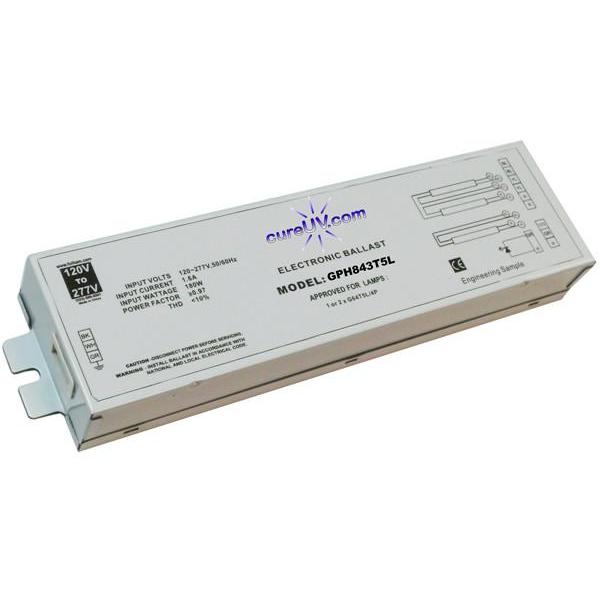

UV Ballast for GPH843T5L Germicidal UV light bulb (single or multi lamp) provides a low-maintenance, energy-efficient solution for germicidal ultraviolet lighting applications, including water purification, air purification and surface disinfection.
Electronic ballast with Program start, 1 or 2 lamps, 120-277 VAC with primary and secondary connectors, 70c max case, 3 year warranty, cULus/CE, with lamp operation LED connector. For lamp operation, case size details and other technical information, click the Specifications tab.
