Guaranteed 100% Ultraviolet (UV) Replacement Quartz Plate / Hot Mirror compatible for Honle UV Printer

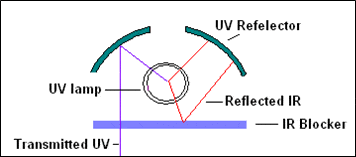

With the dimensions of 9.13" x 4.29" x 2.3mm, the UV quartz hot mirror is a generic OEM replacement part that exceeds OEM standards of curing performance. The UV hot mirror is primarily placed to reduce the effect of infrared rays (IR) that may have an effect over the printing clarity. Along with dichroic reflectors, the hot mirrors improve UV energy and reduce infra red energy that can cause a likely damage to certain substrates that are heat sensitive. By directing the IR energy to the filament, the hot mirror help in giving you a better printing experience by providing you a reliable way of removing heat.
The replacement lamp is used to dry coatings and inks in signs and graphics and is an important component of the drying system. The curing lamp is a better option than infra red drying as it resists smudges. The quartz plate protects lamps from debris and works as a filter between lamp and the curing system. The plate prevents dirt, grit and contaminants from building up.
- Tavg > 85%: 220-400nm
- Tavg < 30%: 430-630nm
- Tavg <= 87%: 700-2500nm
*All quartz hot mirrors listed are compatible brand UV products. We do not sell Honle brand quartz hot mirrors. All Honle brand names, trademarks and logos are property of Honle.
*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
