UV Handheld Meter - Compatible with SI1 and TS1 Sensor
|
SKU: |
|
This handheld device is useful for giving you real-time measurements in conjunction with either SI1 or TS1 sensors. Place the sensor in the location of the UV intensity and immediately get readouts in mW/cm2 on the digital display.
The sensors come in a range of different measurements and bandwidths so UV Intensity from low pressure to medium pressure including UV LED's can all be taken. As the calibration for the sensor is stored within the plug connector only the one hand-held device is needed. Multiple sensors can also be linked together and monitored of the one display.
The device is compact, easily stored and fully portable for quick use when needed. It is multi functional in it's measuring capabilities and can store maximum and minimum readings, features low battery indicator and sensor fault warning and benefits from an easy to read 7/16 digital display.
CureUV Intensity Meter - Technical Data:
- Art. No.: A002067
- System accuracy (resolution): +/- 0.1% of measured values +/- 3 digits
- Measuring rate: 2.5 mops
-
LC display: 7 segments: measured value 5 characters, 15mm
16 segments: 2 characters, 9mm - Keypad: 7 silicone keys
- Operating temperature: -10 degrees C - 60 degrees C (continuous)
- Power supply: 3 x AA alkaline batteries, less than or the same as 5 mA
-
Current consumption: Approx. 10 mA without UV sensor
Approx. 15 mA with UV sensor - Weight: Approx. 270 g
- Dimensions (L x W x H): Approx. 125 x 80 x 40 mm
- Housing material: ABS (acrylonitrile-butadiene-styrene)
- Extent of the delivery: Handheld unit, including 3 AA alkaline batteries and instruction manual
Note: At the handheld unit, different UV sensors can be connected one after another. Only one handheld unit for different sensors is required.
UV-A sensor - Technical Data:
- Spectral Range: 315-395nm (max. at 340nm)
-
Calibration: 20 mW/cm2, calibrated with low pressure UV lamp
2,000 mW/cm2, calibrated with medium pressure UV lamp - Max. permissible radiation: 20,000 W/m2 (up to approx. 30 seconds)
- UV sensitivity: Daylight blind
-
Measurement distance: Min. 10 mm with low pressure UV lamps
Min. 20 mm with medium pressure UV lamps - Operating temperature: 0 - +50 degrees C
- Power supply: Power is applied by handheld unit
- Current consumption: Less than or the same as 5 mA
- Dimensions: Approx. 36 x 17 mm
- Weight: Approx. 100 g
- Housing material: Aluminum
- Extent of delivery: UV sensor with 1 m cable and high-grade special connector. The calibration is saved in the special plug connector.
UV and IR measurement.
Congratulations on your consideration of this innovative UV measuring device. Now you can answer the question: Do I have enough UV intensity or a problem with the coating/ink I'm using? Thanks to the patented connector, the device configures itself automatically; its operation should be fairly straightforward. Simply hold the read out UV device in one hand and place the sensor in the position of where your products are UV cured/dried. The device can also be used with UV-B and UV-C sensors.
The intensity meter UV-A remote sensor has been designed for the monitoring of UV lamp intensity. Equipped with an intelligent interface connector, the data is stored in the sensor connector so that the irradiance in W/m2 can be read directly on the connected evaluation unit. The UV photo diode used with this model is only sensitive within the UV-A spectral range. Other spectral ranges are available for special order (UV-B, UV-C and UV full ranges).
The new measuring equipment technology:
- Provides More Flexibility
- Saves you from expensive downtime and rejected parts
- Allows your machine to run More Efficiently
- Optimizes UV lamp and reflector life
It is recommended that you properly familiarize yourself with the way the sensors function, the device's numerous possibilities and read the operating instructions. This is absolutely necessary to not only avoid operating and measuring errors, but prevent damage to the device.
Technical Specifications: Disc Sensor SI 1:
| Model Spectrum: | UV-A | UV-B | UV-C 20mW/cm2 | UV-C 200mW/cm2 | UV-C 2,000 mW/cm2 | UV Full | UV LED |
| Wavelength Range | 315-395 nm (peak at 360 nm) | 265-325 nm (peak at 315 nm) | 230-280 nm (peak at 265 nm) | 230-280 nm (peak at 265 nm) | 230-280 nm (peak at 265 nm) | 250-410 nm (peak at 330 nm) | 265-495 nm (peak at 350 nm) |
| Maximum Permissible Radiation | 2 W/cm2 for 30 seconds | 2 W/cm2 for 30 seconds | 2 W/cm2 for 30 seconds | 2 W/cm2 for 30 seconds | 2 W/cm2 for 30 seconds | 2 W/cm2 for 30 seconds | 20 W/cm2 for 5 seconds |
| Minimum Measurement Distance |
10 mm with low pressure bulbs 20 mm with medium pressure lamps |
10 mm with low pressure bulbs 20 mm with medium pressure lamps |
10 mm with low pressure bulbs 20 mm with medium pressure lamps |
10 mm with low pressure bulbs 20 mm with medium pressure lamps |
10 mm with low pressure bulbs 20 mm with medium pressure lamps |
10 mm with low pressure bulbs 20 mm with medium pressure lamps |
5 mm with maximum 5 seconds of irradiation |
| Operating Temperature | 32℉ to 122℉ | 32℉ to 122℉ | 32℉ to 122℉ | 32℉ to 122℉ | 32℉ to 122℉ | 32℉ to 122℉ | 32℉ to 122℉ |
| Accuracy | +- 5% | +- 5% | +- 5% | +- 5% | +- 5% | +- 5% | +- 5% |
| Current Pull | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| Dimensions (L x W x H) | 1.4" x 0.7" x 0.4" | 1.4" x 0.7" x 0.4" | 1.4" x 0.7" x 0.4" | 1.4" x 0.7" x 0.4" | 1.4" x 0.7" x 0.4" | 1.4" x 0.7" x 0.4" | 1.4" x 0.7" x 0.4" |
| Weight | 3.5 ounces | 3.5 ounces | 3.5 ounces | 3.5 ounces | 3.5 ounces | 3.5 ounces | 3.5 ounces |
| Housing Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Price | $1,999 | $1,999 | $1,899 | $1,899 | $1,899 | $1,949 | $1,949 |

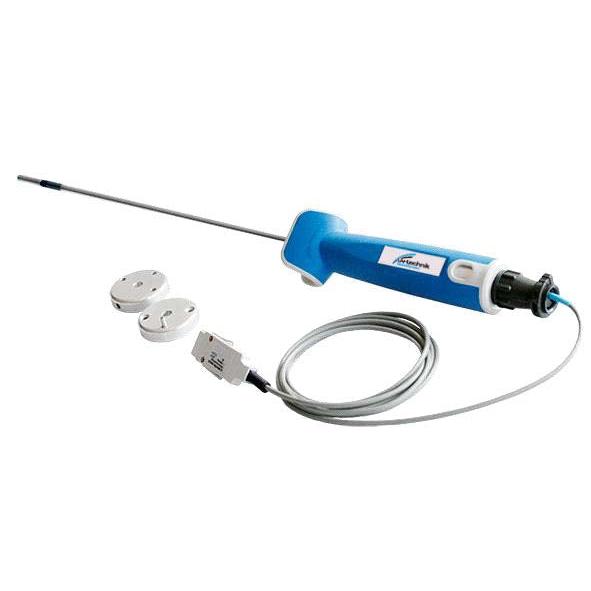

Technical Specifications: Probe Sensor TS 1:
| Model Spectrum: | UV-A | UV-B | UV-C | UV-VIS | Full UV | UV LED |
| Wavelength Range | 315-395 nm | 280-315 nm | 230-280 nm | 395-445 nm | 250-410 nm | 265-495 nm |
| Maximum Permissible Radiation | 10 W/cm2 for 5 seconds | 10 W/cm2 for 5 seconds | 10 W/cm2 for 5 seconds | 10 W/cm2 for 5 seconds | 10 W/cm2 for 5 seconds | 20 W/cm2 for 5 seconds |
| Minimum Measurement Distance |
20 mm |
20 mm |
20 mm |
20 mm |
20 mm |
20 mm |
| Max Rod Temperature Exposure | 662℉ for 15 seconds | 662℉ for 15 seconds | 662℉ for 15 seconds | 662℉ for 15 seconds | 662℉ for 15 seconds | 662℉ for 15 seconds |
| Accuracy | +- 10% | +- 10% | +- 10% | +- 10% | +- 10% | +- 10% |
| Current Pull | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| Weight | 5.5 ounces | 5.5 ounces | 5.5 ounces | 5.5 ounces | 5.5 ounces | 5.5 ounces |
| Cable Length | 6 feet | 6 feet | 6 feet | 6 feet | 6 feet | 6 feet |
| Price | $2,999 | $2,999 | $2,999 | $2,749 | $2,749 | $2,999 |
Brochure
