UV Curing Lamp - UViterno Part # 4015 UV Curing Lamp Bulb

UViterno Part # 4015 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 14.75 Inch Arc Length - 18.06 Inch Total Length (end to end)

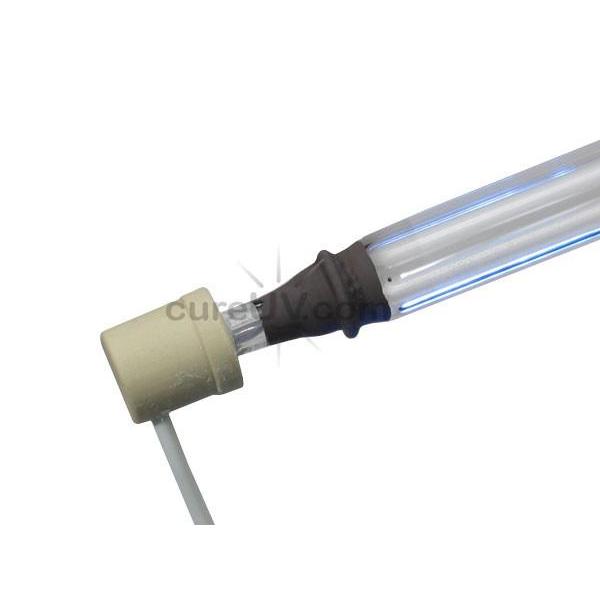

The Uviterno Part # 4015 UV Curing Lamp Bulb is a 100% compatible UV lamp bulb that exceeds OEM standards of UV curing bulb performance. The lamp bulb is 100% compatible to the Uviterno UV Systems. Filled with mercury, the lamp bulb has an arc length of 14.75 inchs and a total length of 18.06 inches. With an output wattage of 9.5W, the 400 WPI lamp bulb works to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

Excess heat causes the print media to bulge and it can also damage the shutters and the reflectors in the lamp housing, leading to enormous repairing costs. Therefore, we suggest that you use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 14.75 inches
  • Total Length: 18.06 inches
  • Tube Diameter: 28mm
  • Watts Per Inch: 400 WPI
  • Output Power (Wattage): 9.5W

UV spectral output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All lamps listed are compatible brand UV products. We do not sell UViterno brand lamps. All UViterno brand names, trademarks and logos are property of UViterno.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
