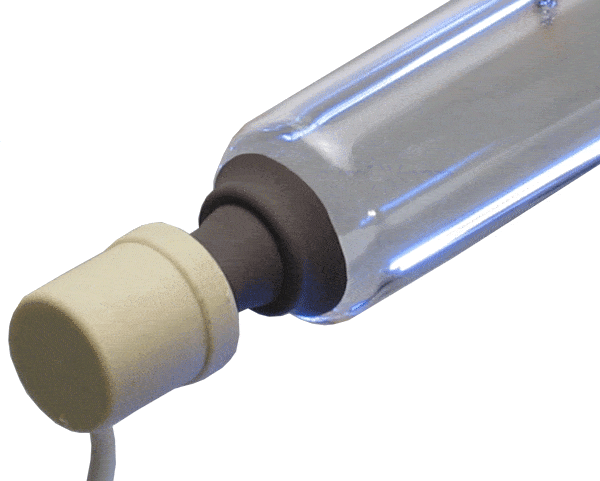

UV Curing Lamp - UViterno Part # UV1035 UV Curing Lamp Bulb
UV Curing Lamp - UViterno Part # UV1035 UV Curing Lamp Bulb UV Curing Lamp - UViterno Part # UV1035 UV Curing Lamp Bulb

UViterno Part # UV1035 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$200.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 9 Inch Arc Length

The Uviterno Part # UV1035 UV Curing Lamp Bulb is a 100% compatible replacement bulb that is a 9 inch lamp bulb that exceeds OEM standards of bulb performance. The lamp bulb is completely compatible to the Uviterno UV systems and works well for the following part numbers:

  • UV1035
  • 013700
  • 0402551

The UV lamp work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

The demand for UV curing bulbs is increasing, mainly in the printing industry as the light bulbs help in instantly drying printing inks. Tradition methods of curing used solvents and heat, which meant that harmful volatile gases evaporated. Curing using UV method involves no heat and solvents, which makes this an eco-friendly option. The UV lamp is subjected to strict quality control measures.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 9 inches
  • Tube Diameter: 26mm
  • Watts Per Inch: 500 WPI

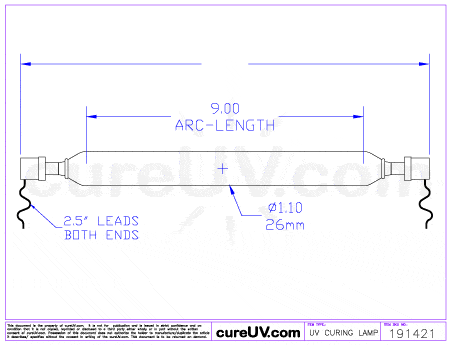

Uviterno 9 inch mercury lamp (500 WPI) - OEM part number UV 1035 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
