UV Curing Lamp - UViterno Part # 0602241 UV Curing Lamp Bulb

UViterno Part # 0602241 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 8 Inch Arc Length - 11 3/8 Inch Total Length (end to end)

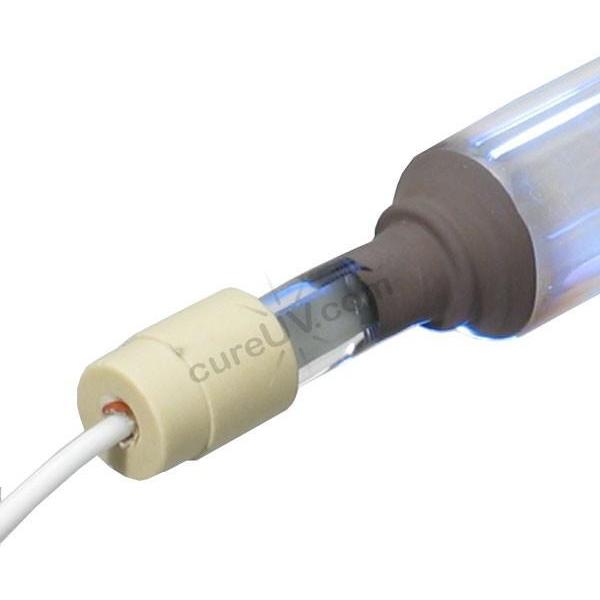

The Uviterno Part # 0602241 UV Curing Lamp Bulb is a 100% compatible UV replacement lamp bulb that is filled with mercury and has an arc length of 8 inches. The replacement lamp bulb has a tube diameter of 25mm and has an output wattage of 300 WPI. With a total length of 11-3/8 inches, the UV lamp bulb is compatible to the Uviterno UV Systems. The lamp bulb is compatible to the following part numbers:

  • 0602241
  • H08P3F1
  • 0301609

The UV lamp work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

The demand for UV curing bulbs is increasing, mainly in the printing industry as the light bulbs help in instantly drying printing inks. Tradition methods of curing used solvents and heat, which meant that harmful volatile gases evaporated. Curing using UV method involves no heat and solvents, which makes this an eco-friendly option. The UV lamp is subjected to strict quality control measures.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 8 inches
  • Total Length: 11-3/8 inches
  • Tube Diameter: 25mm
  • Watts Per Inch: 300 WPI

UV spectral output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All UV lamps listed are compatible brand UV products. We do not sell Uviterno brand UV lamps. All Uviterno brand names, trademarks and logos are property of Uviterno.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
