UV Process Supply (UVPS) Replacement Curing Lamp 9" Arc Length # UVPS M200UHD1

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 9" Arc Length

The UV Process Supply (UVPS) Replacement Curing Lamp # UVPS M200UHD1 is a 9-inch arc length UV curing lamp designed for industrial ultraviolet curing applications. Its compact arc configuration provides dependable curing coverage for UV-sensitive inks, coatings, adhesives, and other curable materials.

Manufactured using high-quality quartz and precision construction, this replacement UV lamp is designed to provide stable and consistent ultraviolet energy across its 9-inch arc length. It is well suited for production environments requiring reliable curing performance in printing, coating, graphics, and conveyor-based UV systems.

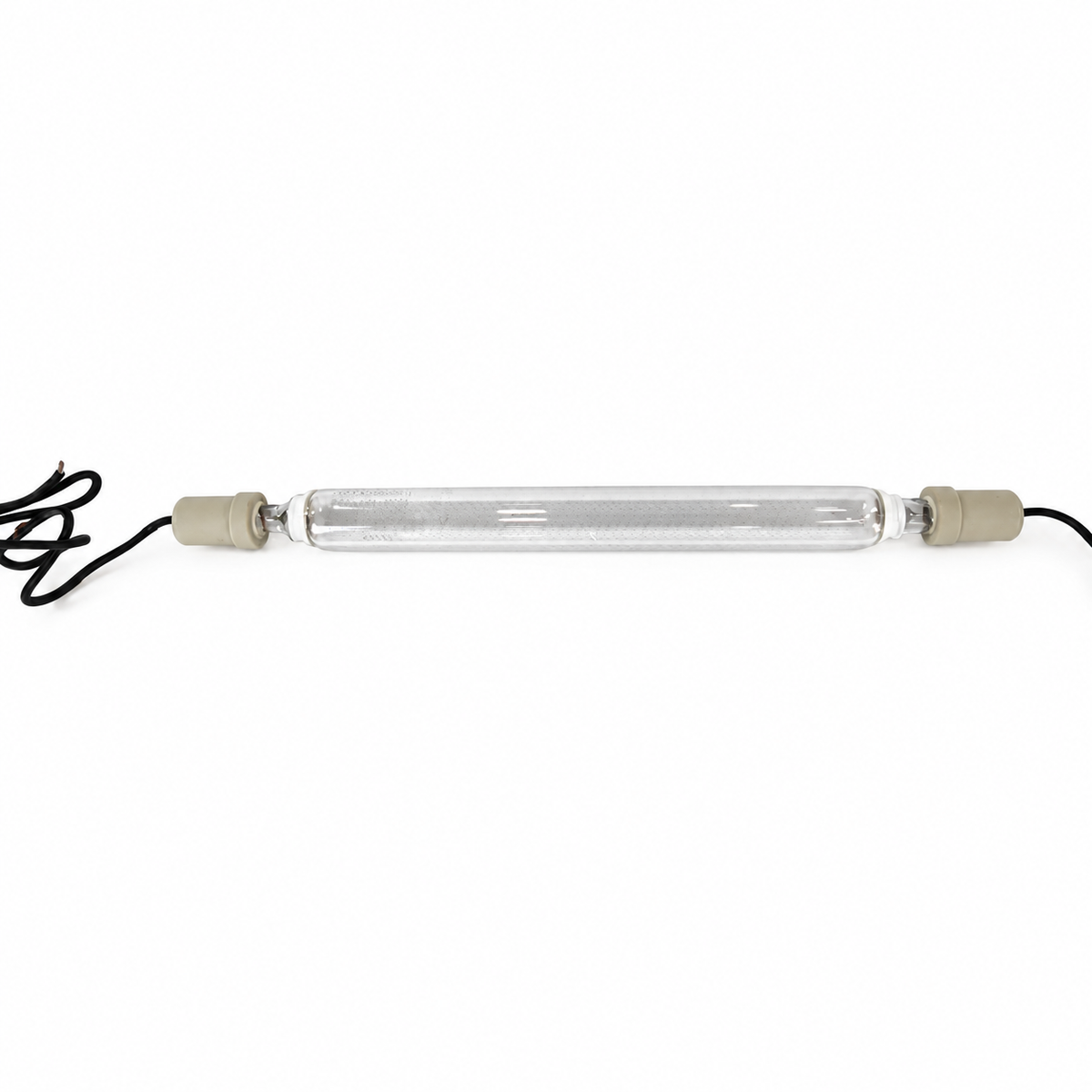

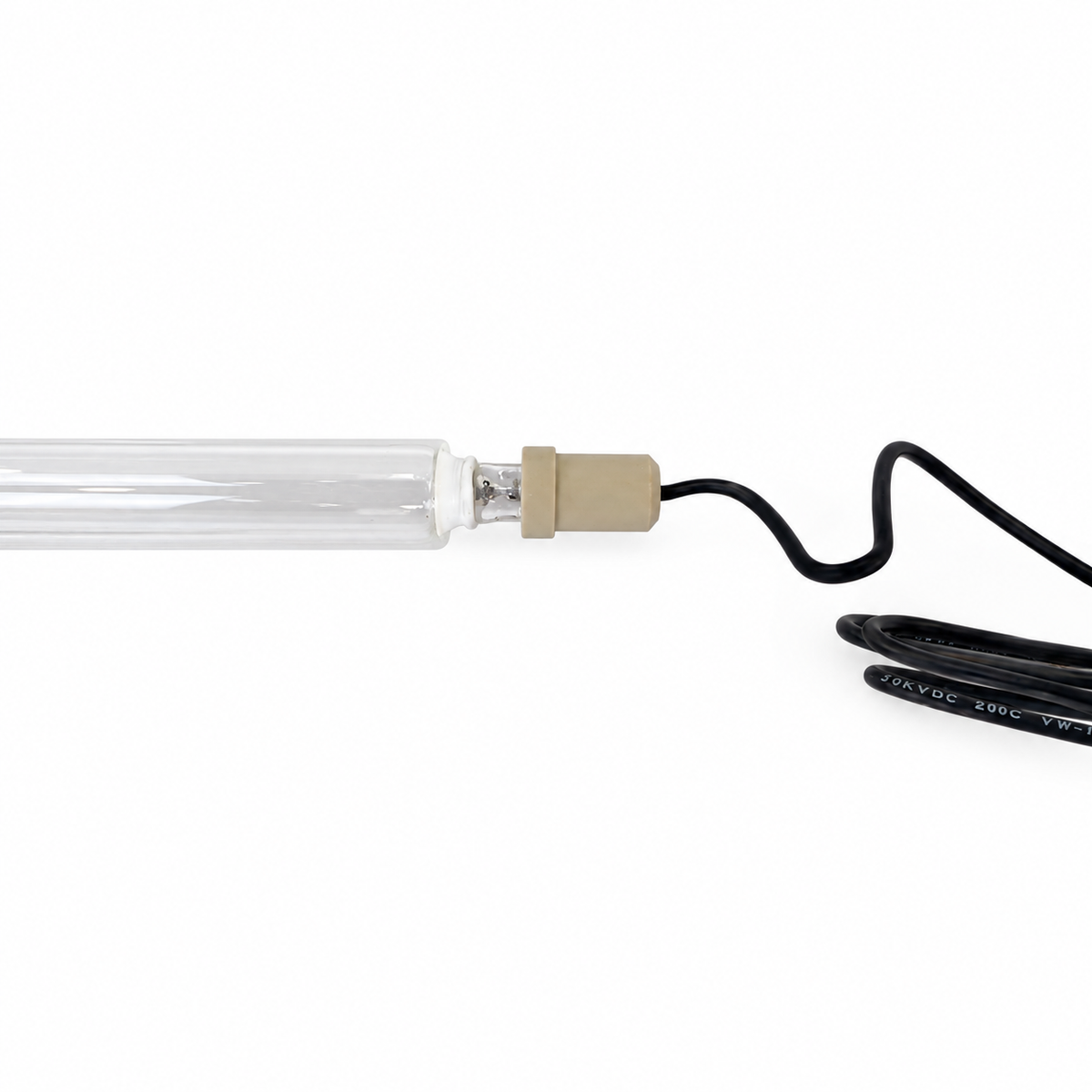

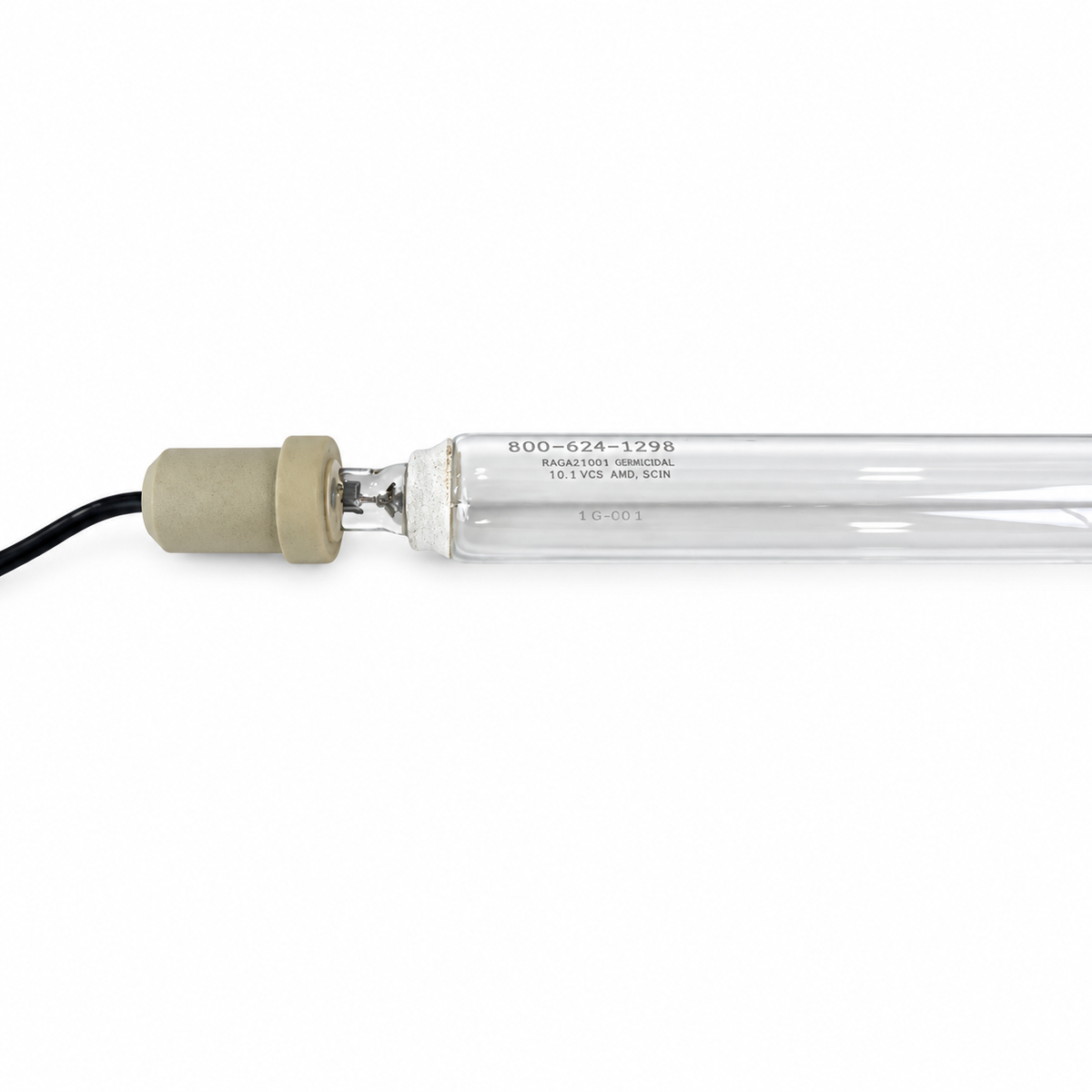

This replacement lamp features a 23 mm tube diameter, a total overall length of 13 inches (332 mm), and 16-inch wire leads for connection to compatible UV curing equipment.

Our replacement UV lamps are designed to provide dependable curing performance at a cost-effective price point, helping maintain production efficiency while minimizing equipment downtime.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Graphics and signage production
• Packaging and labeling processes
• Conveyor-based UV curing systems

Technical Specifications

• Arc Length: 9 inches (229 mm)
• Overall Length (TOL): 13 inches (332 mm)
• Lamp Diameter: 23 mm
• Leads: 16" wire leads
• Lamp Type: UV curing lamp
• Part Number: UVPS M200UHD1

Cross-Reference / Replacement Part Numbers

• UV Process Supply (UVPS): M200UHD1
• UV Process Supply (UVPS): UVPS M200UHD1
• UV Process Supply (UVPS): UVPSM200UHD1

Also searched as: UVPS M200UHD1, UVPSM200UHD1, UVPS-M200UHD1, M200UHD1 UV Lamp, M200UHD1 UV Curing Lamp.

Lamp Identification: 9" (229 mm) arc length, 13" (332 mm) overall length, 23 mm lamp diameter, with 16" wire leads.

Cross-Reference Information: UVPS M200UHD1 is the primary reference for this lamp configuration. The 229 mm arc length, 332 mm overall length, 23 mm tube diameter, and 16-inch lead configuration should be used when comparing replacement lamps from other manufacturers.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.

Still not sure if this is the correct replacement lamp? We understand that identifying UV curing lamps can be challenging. Contact us at sales@cureuv.com or call 1-800-977-7292 and we’ll help you find the exact match.
