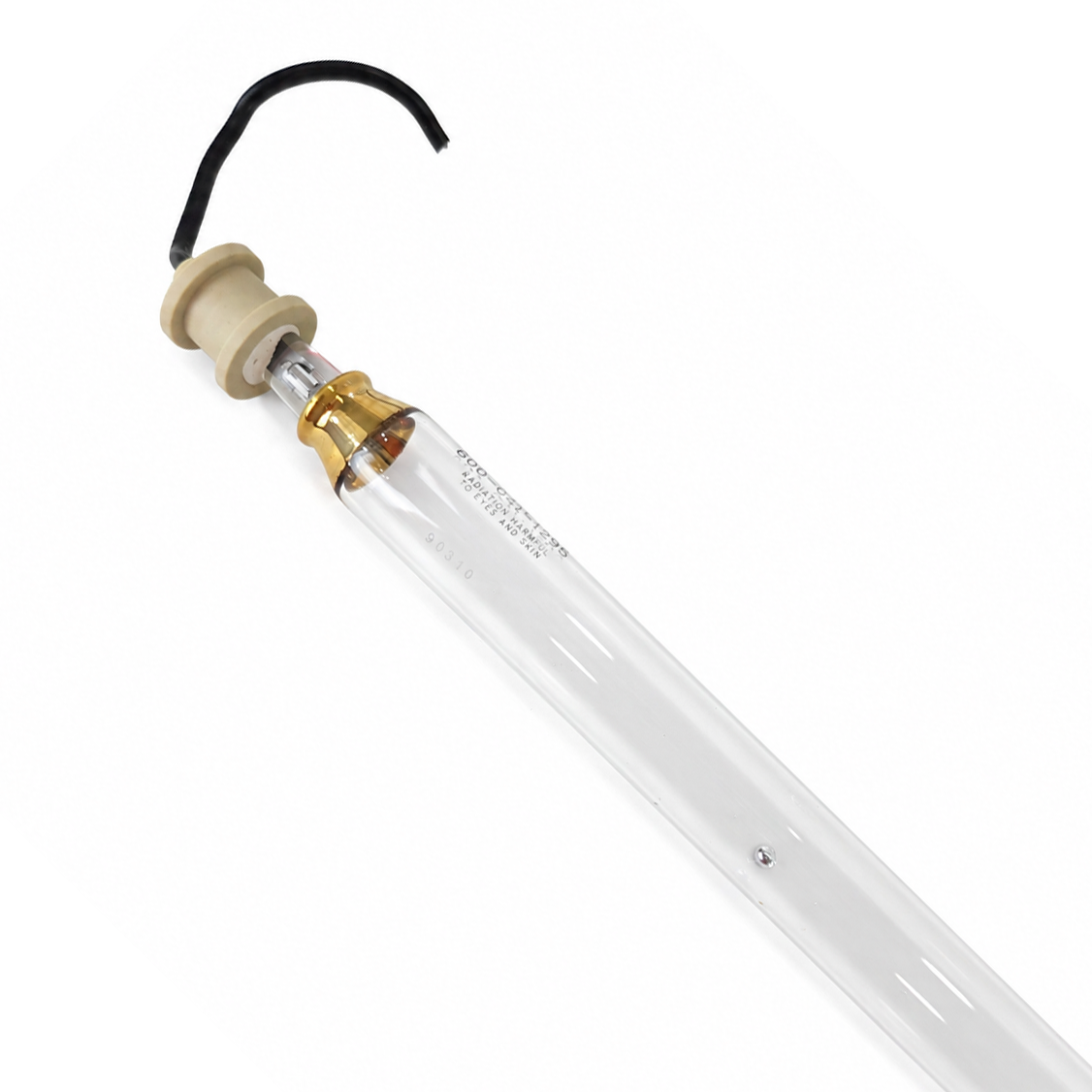

UV Process Supply (UVPS) Replacement Curing Lamp 39" Arc Length # UVPS PL804HD

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 39" Arc Length

The UV Process Supply (UVPS) Replacement Curing Lamp # UVPS PL804HD is a 39-inch arc length UV curing bulb engineered to meet or exceed OEM performance standards. This high-output replacement lamp delivers consistent UV energy and reliable curing performance for demanding industrial applications involving inks, coatings, and adhesives.

Manufactured using high-quality quartz and precision engineering, this UV lamp provides stable and uniform energy distribution across the arc length, ensuring consistent curing results across medium to wide-format substrates. Its extended arc design makes it ideal for conveyor-based systems and production environments requiring dependable, even curing performance.

Our replacement UV lamps are designed to provide OEM-equivalent quality at a cost-effective price point. With predictable lifespan and consistent output, these lamps help maintain production efficiency while minimizing downtime in UV curing operations.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Graphics and signage production
• Packaging and labeling processes
• Conveyor-based UV curing systems

Technical Specifications

• Arc Length: 39 inches (1000 mm)
• Overall Length (TOL): 43.3 inches (1100 mm)
• Lamp Diameter: 26 mm
• Leads: 4" leads with ring connectors
• Lamp Type: UV curing lamp
• Part Number: UVPS PL804HD

Cross-Reference / Replacement Part Numbers

• UV Process Supply (UVPS): PL804HD
• UV Process Supply (UVPS): UVPS PL804HD
• UV Process Supply (UVPS): UVPSPL804HD
• CureUV: 196347

Also searched as: UVPS PL804HD, UVPSPL804HD, UVPS-PL804HD, PL804HD UV Lamp, PL804HD UV Curing Lamp.

Lamp Identification: 39" (1000 mm) arc length, 43.3" (1100 mm) overall length, 26 mm lamp diameter, with 4" wire leads and ring connectors.

Cross-Reference Information: UVPS PL804HD is the primary verified published reference for this lamp. No separate Primarc, Theimer, Hanovia, Heraeus/Amba, Alpha Cure, UV-Technik Meyer, or other OEM numerical part number has been positively verified for this exact 1000 mm arc / 1100 mm overall / 26 mm diameter configuration.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.
