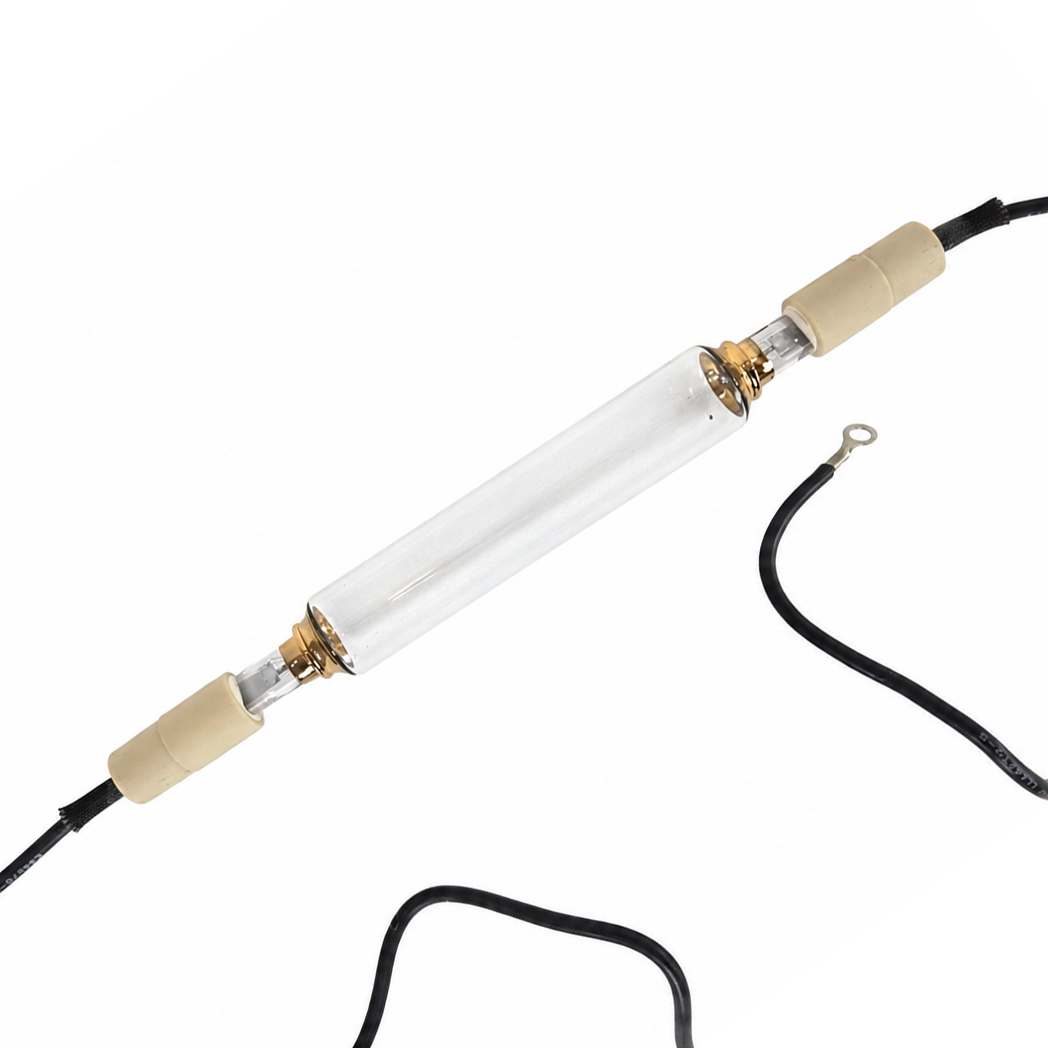

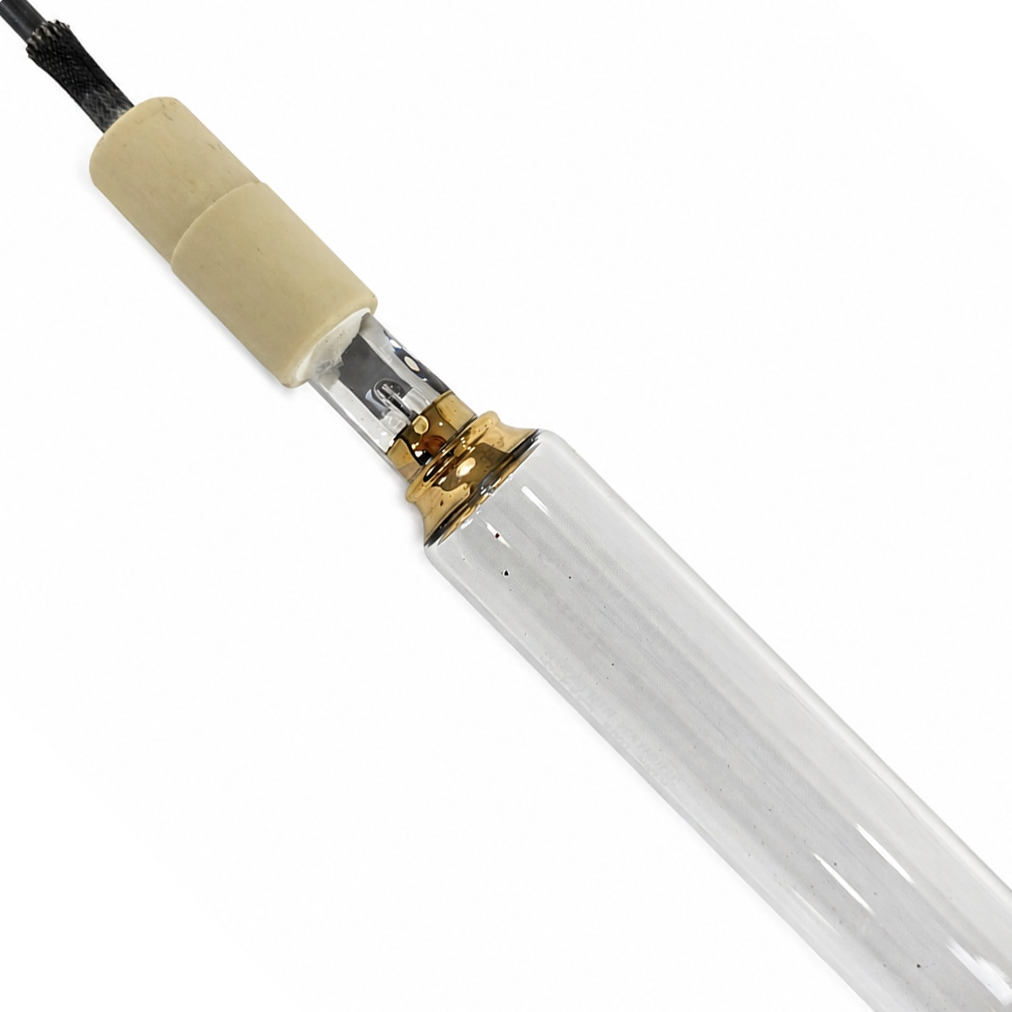

UV Process Supply (UVPS) Replacement Curing Lamp 4.33" Arc Length # UVPS UVH1322

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 4.33" Arc Length

The UV Process Supply (UVPS) Replacement Curing Lamp # UVPS UVH1322 is a 4.33-inch arc length UV curing bulb engineered to meet or exceed OEM performance standards. This 100% compatible replacement lamp delivers consistent UV output and reliable curing performance for precision industrial applications involving inks, coatings, and adhesives.

Manufactured using high-quality quartz and precision engineering, this compact UV lamp provides stable and uniform energy distribution across the arc length, ensuring consistent curing results. Its short-arc design makes it ideal for systems requiring focused curing in smaller areas while maintaining high-performance output.

Our replacement UV lamps are designed to provide OEM-equivalent quality at a cost-effective price point. With dependable performance and predictable lifespan, these lamps help maintain production efficiency and minimize downtime in UV curing operations.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Electronics and precision curing applications
• Laboratory and specialty UV systems

Technical Specifications

• Arc Length: 4.33 inches (110 mm)
• Overall Length (TOL): 9 inches (230 mm)
• Lamp Diameter: 24.5 mm
• Leads: 20" wire leads with ring connectors
• Lamp Type: UV curing lamp
• Part Number: UVPS UVH1322

Cross-Reference / Replacement Part Numbers

• UV Process Supply (UVPS): UVH1322
• UV Process Supply (UVPS): UVPS UVH1322
• Heraeus: UVH-1322
• Ushio / BLV: UVH 1322-0
• Ushio / BLV Article Number: 24028502
• Patent-Licht: PAT/UVH 1322-0
• Patent-Licht SKU: 905709-9462
• CureUV: 196341

Also searched as: UVPS UVH1322, UVPSUVH1322, UVH-1322, UVH1322-0, UVH 1322-0, PAT/UVH 1322-0, 24028502.

Lamp Identification: The current UVPS listing specifies 4.33" (110 mm) arc length, 9" (230 mm) overall length, 24.5 mm lamp diameter, and 20" wire leads with ring connectors.

Cross-Reference Information: UVH1322 is associated with the established UVH 1322-0 medium-pressure mercury lamp family. Published Ushio / BLV specifications identify UVH 1322-0 as a 1300 W mercury lamp with a 125 mm arc, 230 mm overall length, 22.5 mm diameter, and article number 24028502. Patent-Licht also offers PAT/UVH 1322-0 as a compatible replacement. Because the dimensions published for the current UVPS UVH1322 differ from the legacy UVH 1322-0 specifications, confirm the exact lamp geometry and electrical requirements before treating these references as fully interchangeable.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.
