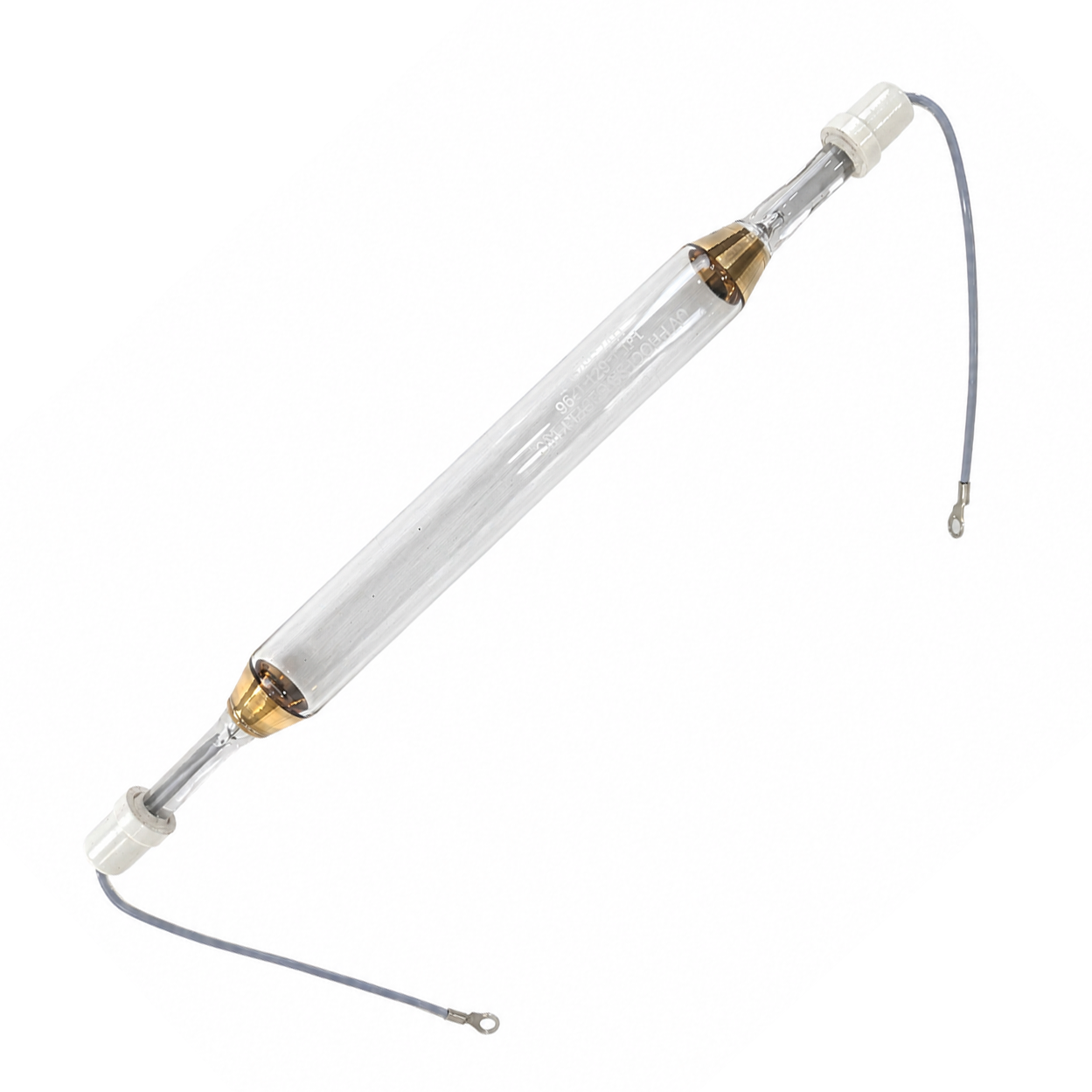

UV Process Supply (UVPS) Replacement Curing Lamp 6.5" Arc Length # UVPS 3250T
UV Process Supply (UVPS) Replacement Curing Lamp 6.5" Arc Length # UVPS 3250T
SKU:196339
Couldn't load pickup availability
Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 6.5" Arc Length
The UV Process Supply (UVPS) Replacement Curing Lamp # UVPS 3250T is a 6.5-inch arc length UV curing bulb engineered to meet or exceed OEM performance standards. This 100% compatible replacement lamp delivers consistent UV output and reliable curing performance for industrial applications involving inks, coatings, and adhesives.
Manufactured using high-quality quartz and precision engineering, this UV lamp provides stable and uniform energy distribution across the arc length, ensuring consistent curing results. Its compact arc design makes it ideal for systems requiring shorter curing spans while maintaining high-performance output.
Our replacement UV lamps are designed to provide OEM-equivalent quality at a cost-effective price point. With dependable performance and predictable lifespan, these lamps help maintain production efficiency and minimize downtime in UV curing operations.
Applications
- UV printing systems
- Industrial coating and finishing lines
- Ink and adhesive curing
- Graphics and signage production
- Packaging and labeling processes
- Compact and conveyor-based UV curing systems
Technical Specifications
- Arc Length: 6.5 inches (165 mm)
- Overall Length (TOL): 11.6 inches (295 mm)
- Lamp Diameter: 22.5 mm
- Leads: 4" leads with ring connectors
- Lamp Type: UV curing lamp
- Part Number: UVPS 3250T
Cross-Reference / Replacement Part Numbers
- UV Process Supply (UVPS): 3250T
- UV Process Supply (UVPS): UVPS 3250T
- UV Process Supply (UVPS): UVPS3250T
- CureUV: 196339
Also searched as: UVPS 3250T, UVPS3250T, UVPS-3250T, 3250T UV Lamp, 3250T UV Curing Lamp.

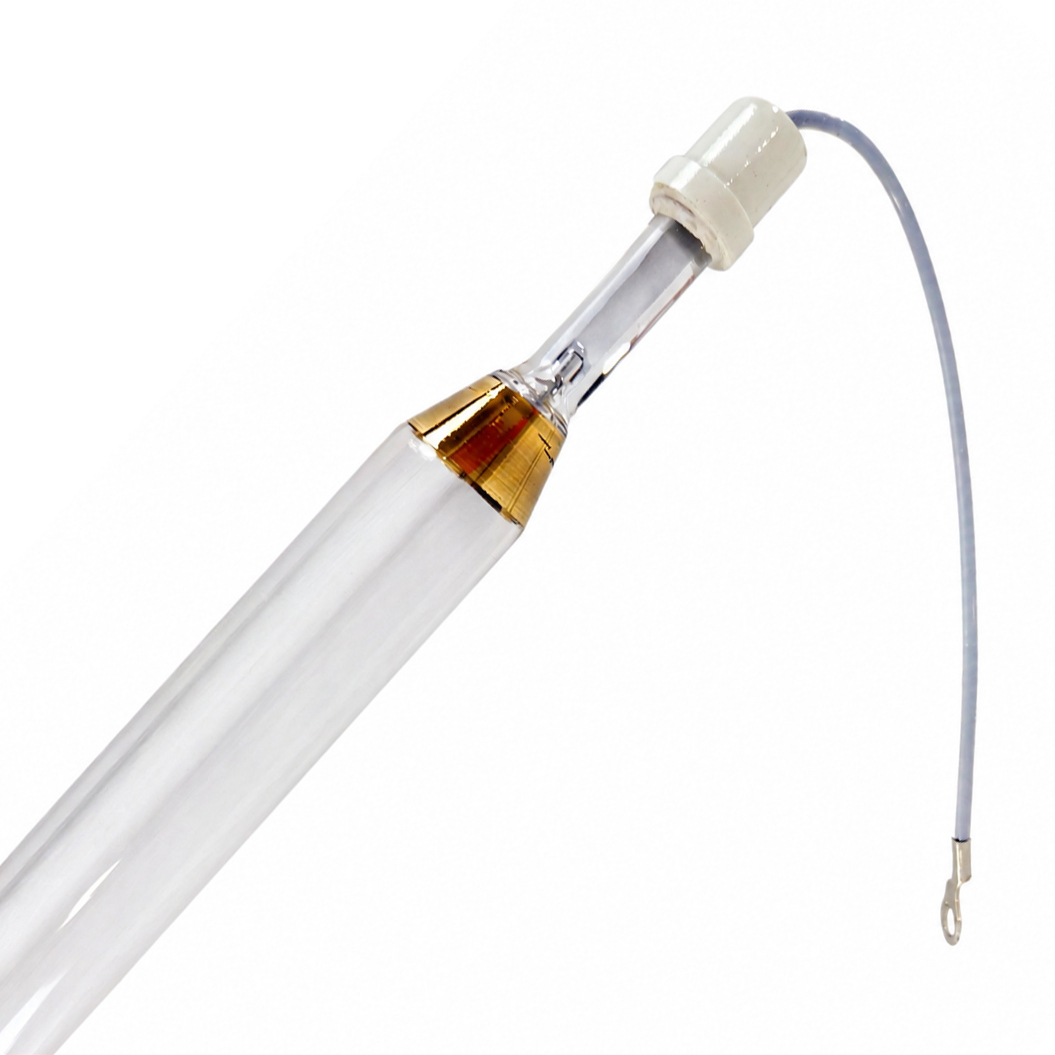

Lamp Identification: 6.5" (165 mm) arc length, 11.6" (295 mm) overall length, 22.5 mm lamp diameter, with 4" wire leads and ring connectors.
Cross-Reference Information: UVPS 3250T is the primary verified published reference for this lamp. No separate Hanovia, Theimer, Heraeus/Amba, Primarc, Alpha Cure, Iwasaki/EYE, GEW, or other OEM numerical part number has been positively verified for this exact 165 mm arc / 295 mm overall / 22.5 mm diameter configuration with 4" ring-terminal leads.
When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.
Still not sure if this is the correct replacement lamp? We understand that identifying UV curing lamps can be challenging. Contact us at sales@cureuv.com or call 1-800-977-7292 and we’ll help you find the exact match.
