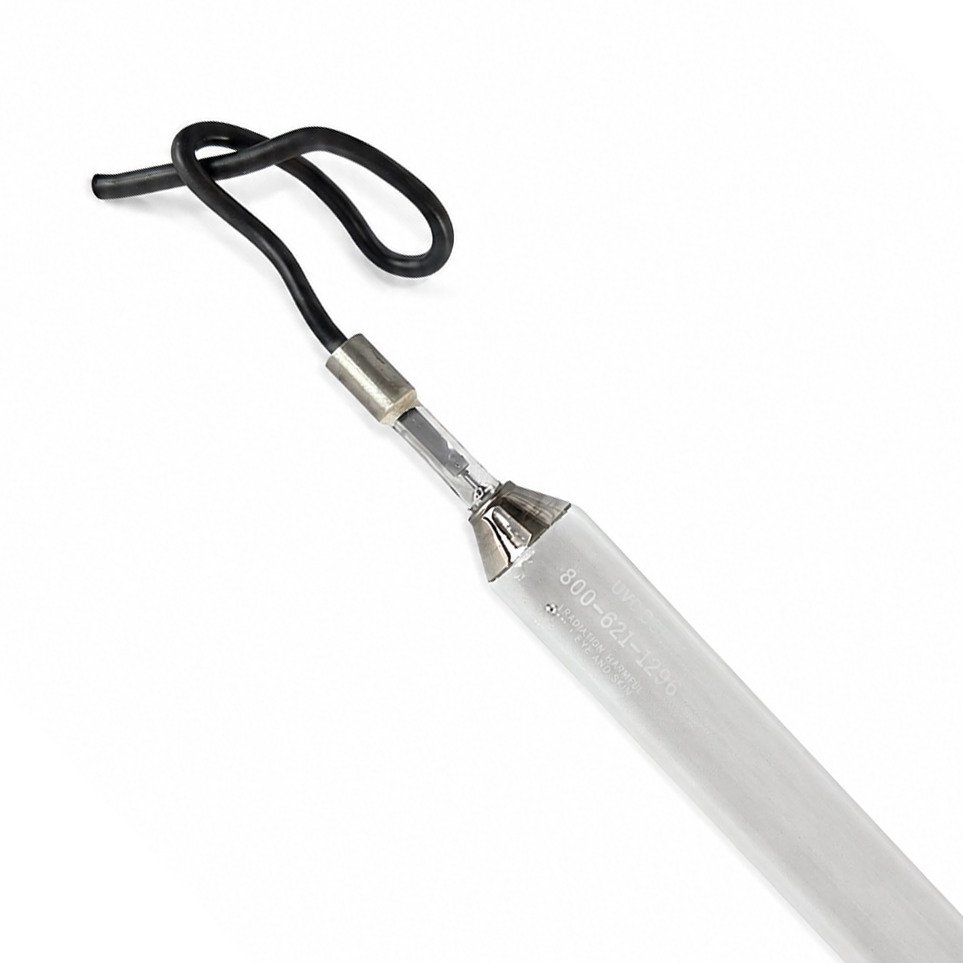

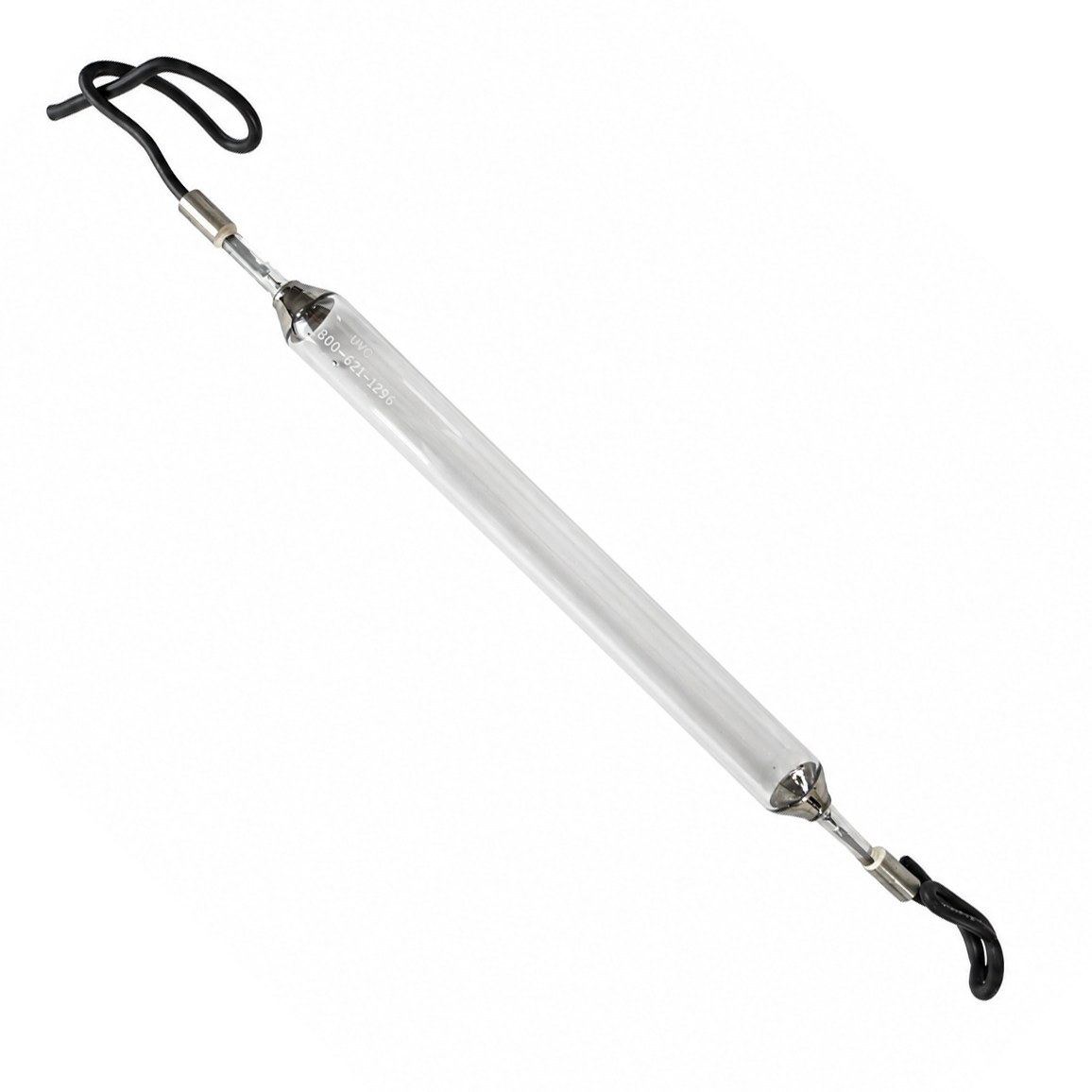

UV Process Supply (UVPS) Replacement Curing Lamp 8.5" Arc Length # UVPS S33

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 8.5" Arc Length

The UV Process Supply (UVPS) Replacement Curing Lamp # UVPS S33 is an 8.5-inch arc length UV curing bulb engineered to meet or exceed OEM performance standards. This 100% compatible replacement lamp delivers consistent UV output and reliable curing performance for industrial applications involving inks, coatings, and adhesives.

Manufactured using high-quality quartz and precision engineering, this UV lamp provides stable and uniform energy distribution across the arc length, ensuring consistent curing results. Its compact arc design makes it ideal for systems requiring precise curing coverage while maintaining high-performance output.

Our replacement UV lamps are designed to provide OEM-equivalent quality at a cost-effective price point. With dependable performance and predictable lifespan, these lamps help maintain production efficiency and minimize downtime in UV curing operations.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Graphics and signage production
• Packaging and labeling processes
• Precision and conveyor-based UV curing systems

Technical Specifications

• Arc Length: 8.5 inches (215 mm)
• Overall Length (TOL): 12.5 inches (320 mm)
• Lamp Diameter: 24.5 mm
• Leads: 7.5" wire leads
• Lamp Type: UV curing lamp
• Part Number: UVPS S33

Cross-Reference / Replacement Part Numbers

• UV Process Supply (UVPS): S33
• UV Process Supply (UVPS): UVPS S33
• UV Process Supply (UVPS): UVPSS33
• CureUV: 196350

Also searched as: UVPS S33, UVPSS33, UVPS-S33, S33 UV Lamp, S33 UV Curing Lamp.

Lamp Identification: 8.5" (215 mm) arc length, 12.5" (320 mm) overall length, 24.5 mm lamp diameter, with 7.5" wire leads.

Cross-Reference Information: UVPS S33 is the primary verified published reference for this lamp. No separate Hanovia, Theimer, Heraeus/Amba, Primarc, Alpha Cure, Voltarc, Iwasaki/EYE, or other OEM numerical part number has been positively verified for this exact 215 mm arc / 320 mm overall / 24.5 mm diameter configuration.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.

Still not sure if this is the correct replacement lamp? We understand that identifying UV curing lamps can be challenging. Contact us at sales@cureuv.com or call 1-800-977-7292 and we’ll help you find the exact match.
