UV Process Supply (UVPS) Replacement Curing Lamp 6.22" Arc Length # UVPS 62097

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 6.22" Arc Length

The UV Process Supply (UVPS) Replacement Curing Lamp # UVPS 62097 is a 6.22-inch arc length UV curing bulb engineered to meet or exceed OEM performance standards. This 100% compatible replacement lamp delivers consistent UV output and reliable curing performance for industrial applications involving inks, coatings, and adhesives.

Manufactured using high-quality quartz and precision engineering, this UV lamp provides stable and uniform energy distribution across the arc length, ensuring consistent curing results. Its compact arc design makes it ideal for systems requiring shorter curing spans while maintaining high-performance output.

Our replacement UV lamps are designed to provide OEM-equivalent quality at a cost-effective price point. With dependable performance and predictable lifespan, these lamps help maintain production efficiency and minimize downtime in UV curing operations.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Graphics and signage production
• Packaging and labeling processes
• Compact and conveyor-based UV curing systems

Technical Specifications

• Arc Length: 6.22 inches (158 mm)
• Overall Length (TOL): 10 inches (255 mm)
• Lamp Diameter: 25 mm
• Leads: 11" wire leads
• Lamp Type: UV curing lamp
• Part Number: UVPS 62097

Cross-Reference / Replacement Part Numbers

• UV Process Supply (UVPS): 62097
• UV Process Supply (UVPS): UVPS 62097
• UV Process Supply (UVPS): UVPS62097
• Legacy / Aftermarket UV Lamp Reference: 62097-1633
• CureUV: 196342

Also searched as: UVPS 62097, UVPS62097, UVPS-62097, 62097 UV Lamp, 62097 UV Curing Lamp, 62097-1633.

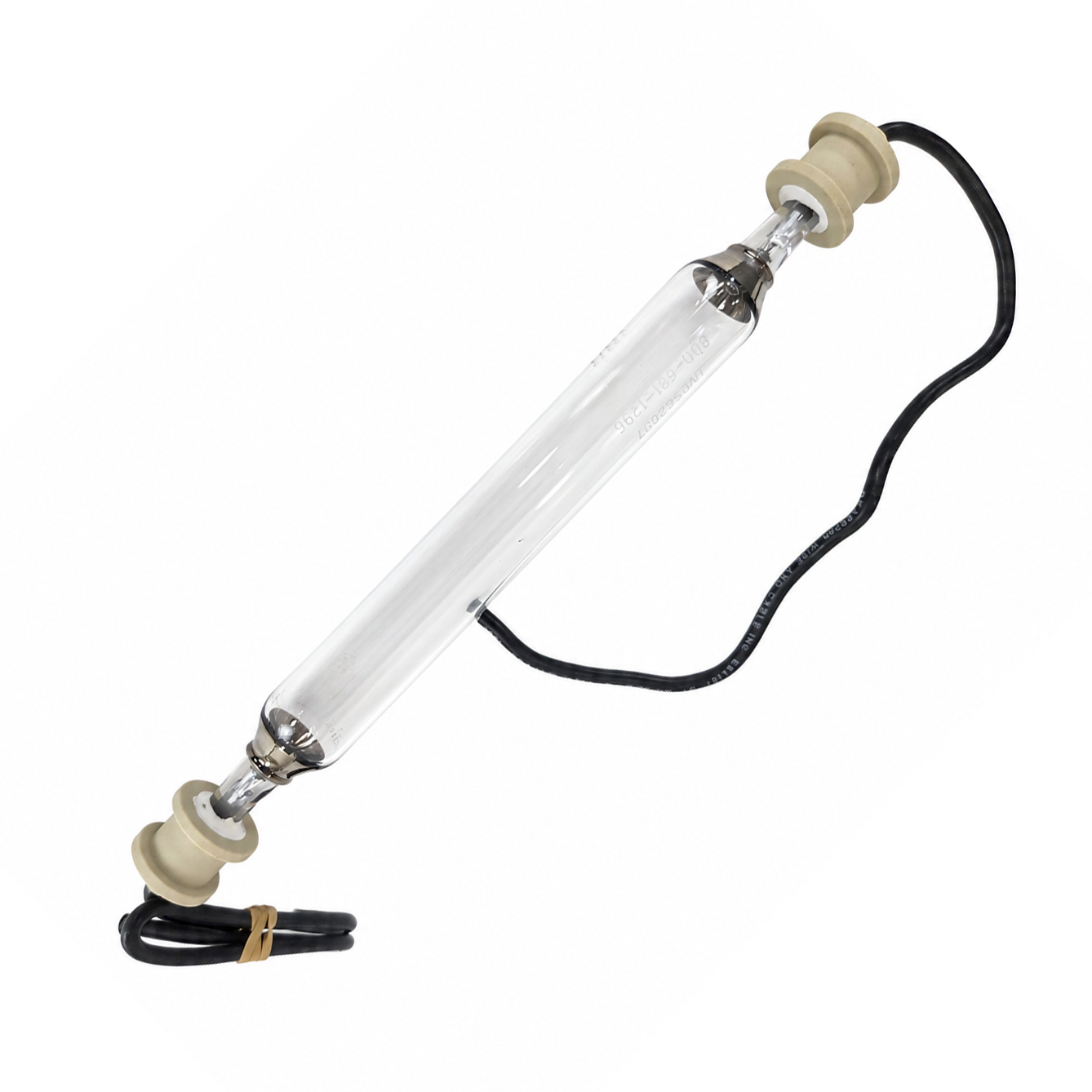

Lamp Identification: 6.22" (158 mm) arc length, 10" (255 mm) overall length, 25 mm lamp diameter, with 11" wire leads.

Cross-Reference Information: UVPS 62097 is the primary verified reference for this curing lamp. Industrial UV replacement-lamp catalogs also list 62097-1633 as a UV lamp reference; however, the exact electrical and terminal relationship between 62097 and 62097-1633 should be confirmed before treating the two numbers as fully interchangeable. No separate Hanovia, Theimer, Primarc, Heraeus/Amba, Alpha Cure, or other OEM numerical part number has been positively verified for this exact configuration.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.

Still not sure if this is the correct replacement lamp? We understand that identifying UV curing lamps can be challenging. Contact us at sales@cureuv.com or call 1-800-977-7292 and we’ll help you find the exact match.
