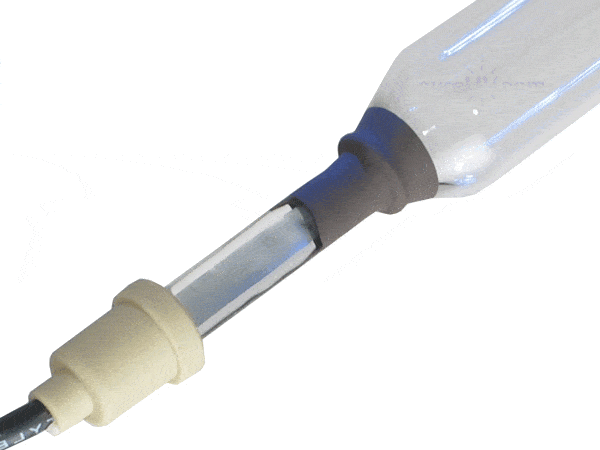

UV Curing Lamp - UVT Part # 3219B16 UV Curing Lamp Bulb
UV Curing Lamp - UVT Part # 3219B16 UV Curing Lamp Bulb UV Curing Lamp - UVT Part # 3219B16 UV Curing Lamp Bulb

UVT Part # 3219B16 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$238.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 18 Inch Arc Length

The UVT Part # 3219B16 UV Curing Lamp Bulb is a 100% guaranteed UV lamp bulb that has an arc length of 18 inches and a total length of 23.25 inches. The lamp bulb is compatible to the following part number:

  • 3219B16

The UV lamp work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

The demand for UV curing bulbs is increasing, mainly in the printing industry as the light bulbs help in instantly drying printing inks. Tradition methods of curing used solvents and heat, which meant that harmful volatile gases evaporated. Curing using UV method involves no heat and solvents, which makes this an eco-friendly option. The UV lamp is subjected to strict quality control measures.

Technical Specifications:

  • Quartz: Standard
  • Arc Length: 18 inches
  • Total Length: 23.25 inches

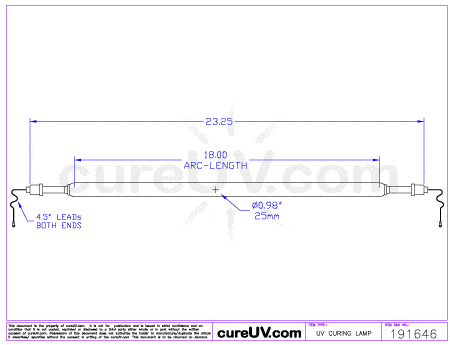

UVT UV Lamp - OEM Part Number 3219B16 drawing

UVT 18 inch UV lamp - OEM part number 3219B16 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
