4 Pin Step Base on a Single End - 40 Watt Germicidal Water Treatment Bulb
The Viqua S12Q-PA/2 Generic Replacement bulb is a four-pin step base on a single-end light bulb. The UVC light bulb has a total length of 33.19 inches and an arc length of 29.92 inches. The 40 Watt germicidal light bulb from CureUV has a peak output of 253.7nm.
The quality of drinking water affects our well-being and the germicidal light is proven to destroy viruses, bacteria, protozoa, molds, and other harmful pathogens. The lamp features a wavelength with lethal effectiveness of 253.7nm that helps disrupt harmful microorganisms' DNA and renders them harmless. Measuring 33.19 inches in length, the UVC lamp has a long-lasting life rate of 10,000 hours, you get a 12-month worry-free water sanitizing operation. After that time the light may still be visible but the germ-destroying ability of the compatible UV light bulb may have been reduced so we recommend you replace the lamp bulb.
We offer two versions of this UV-C bulb; a good quality foreign-made generic replacement unit and an ultra-high quality US-made unit. Both lights are guaranteed to be 100% compatible with the Viqua S12Q-PA/2.

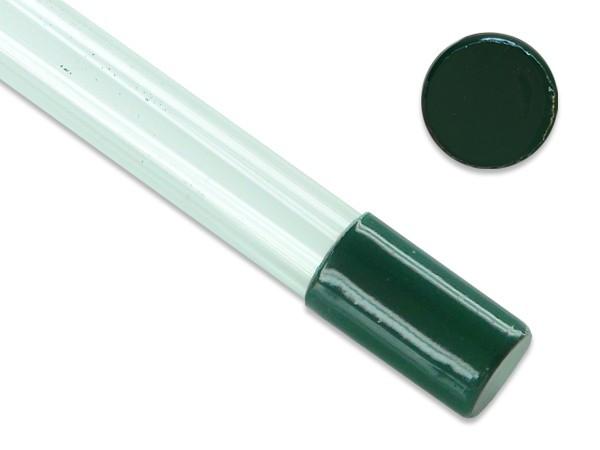

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can also select this shatterproof option above.
The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:
- Well water
- Drinking water
- Surface water
- Municipal water
- Beverage service/processing
- Pools, Spas, and Water Features
- Oil, Gas, and Power
- Pulp, paper, and wood
- Water bottlers
- Marine and more

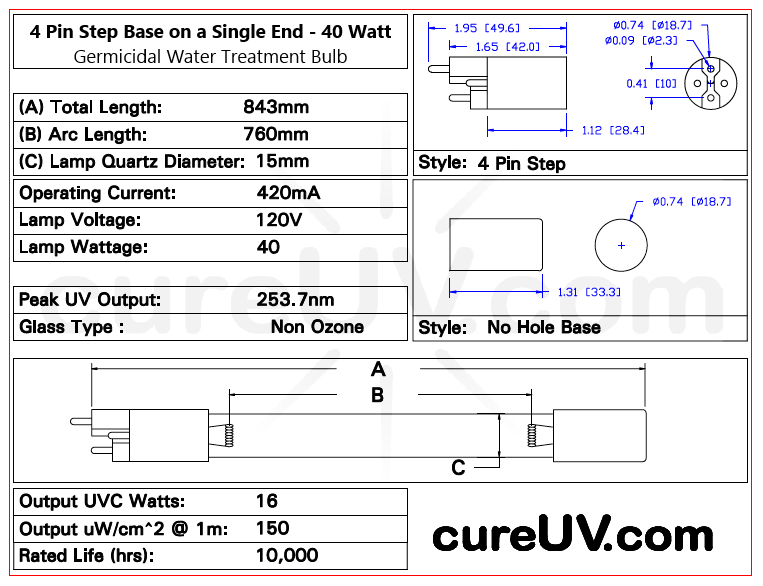

- Total Length: 33.19 inches (843mm)
- Arc Length: 29.92 inches (760mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 420mA
- Lamp Voltage: 120V
- Lamp Wattage: 40 Watts
- Output UVC Watts: 16 Watts
- Output uW/cm^2 @ 1m: 150
- Peak UV Output: 253.7nm
- Glass Type: Non-Ozone
- Base Style: 4 pin stepped on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Viqua brand UVC bulbs. All Viqua brand names, trademarks, and logos are property of Viqua.
Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
