Viqua S24Q UVC Light Bulb for Germicidal Water Treatment
Viqua S24Q UVC Light Bulb for Germicidal Water Treatment Viqua S24Q UVC Light Bulb for Germicidal Water Treatment Viqua S24Q UVC Light Bulb for Germicidal Water Treatment Viqua S24Q UVC Light Bulb for Germicidal Water Treatment Viqua S24Q UVC Light Bulb for Germicidal Water Treatment

Viqua S24Q UVC Light Bulb for Germicidal Water Treatment
Free Gift

SKU:

UV Bulb Price Match Guarantee
$104.99

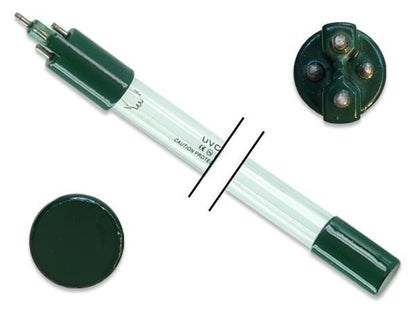

4 Pin Step Base on a Single End - 40 Watt Germicidal Water Treatment Bulb

The Viqua S24Q UVC Light Bulb is a four-pin step base on a single-end light bulb. The UVC light bulb has a total length of 33.19 inches and an arc length of 29.92 inches. The 40 Watt germicidal light bulb has a peak output of 253.7nm.

The quality of drinking water affects our well-being and the germicidal light is proven to destroy viruses, bacteria, protozoa, molds, and other harmful pathogens. The lamp features a wavelength with lethal effectiveness of  253.7nm that helps disrupt harmful microorganisms' DNA and renders them harmless. Measuring 33.19 inches in length, the UVC lamp has a long-lasting life rate of 10,000 hours, you get a 12-month worry-free water sanitizing operation. After that time the light may still be visible but the germ-destroying ability of the compatible UV light bulb may have been reduced so we recommend you replace the lamp bulb.

We offer two versions of this UV-C bulb; a good quality foreign-made generic replacement unit and an ultra-high quality US-made unit. Both lights are guaranteed to be 100% compatible with the Viqua S24Q

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

  • Well water
  • Drinking water
  • Surface water
  • Municipal water
  • Wastewater
  • Foodservice/processing
  • Beverage service/processing
  • Hospitals
  • Aquaculture
  • Pools, Spas, and Water Features
  • Chemicals
  • Oil, Gas, and Power
  • Pulp, paper, and wood
  • Electronics
  • Cosmetics
  • Pharmaceuticals
  • Hotels
  • Water bottlers
  • Laboratories
  • Marine and more

Technical Specifications:

  • Total Length: 33.19 inches (843mm)
  • Arc Length: 29.92 inches (760mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 120V
  • Lamp Wattage: 40 Watts
  • Output UVC Watts: 16 Watts
  • Output uW/cm^2 @ 1m: 150
  • Peak UV Output: 253.7nm
  • Glass Type: Non-Ozone
  • Base Style: 4 pin stepped on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours
Spectral Output of Germicidal UVC Light Bulbs (PDF)

Spectral Output of Germicidal UVC Light Bulbs

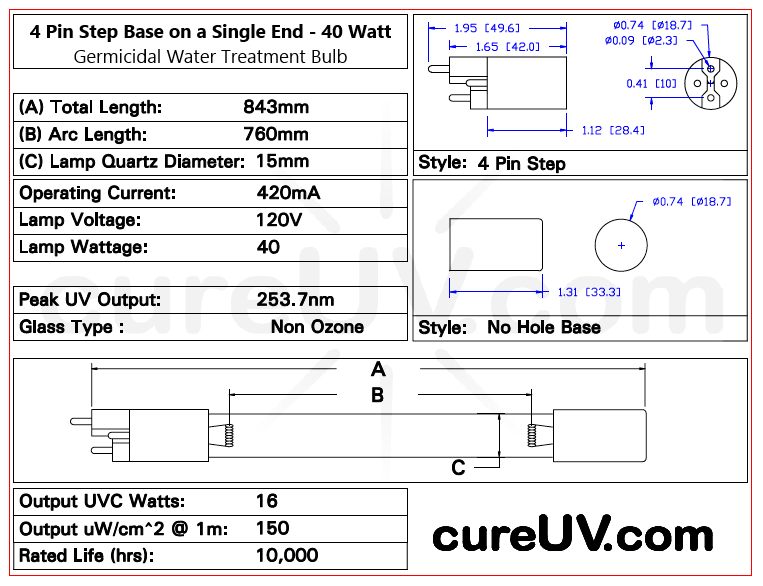

Drawing of Replacement UVC Bulb

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV brand products are 100% compatible with the original equipment.
