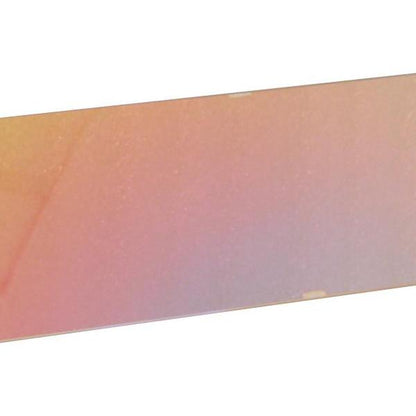

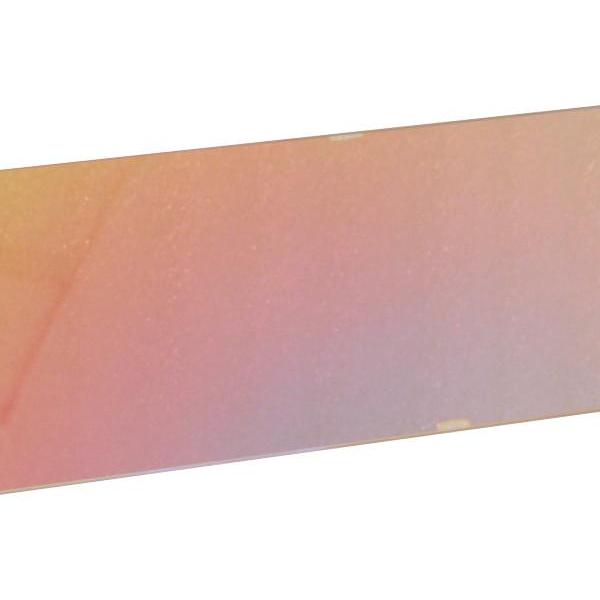

VUTEk GS2000 Replacement UV Quartz Hot Mirror - IR Blocker
VUTEk GS2000 Replacement UV Quartz Hot Mirror - IR Blocker VUTEk GS2000 Replacement UV Quartz Hot Mirror - IR Blocker

VUTEk GS2000 Replacement UV Quartz Hot Mirror - IR Blocker
Free Gift

Brand: Vutek

SKU: 192516

UV Bulb Price Match Guarantee
$610.00

Guaranteed 100% Ultraviolet (UV) Replacement Quartz Plate / Hot Mirror compatible for VUTEk GS2000

The Vutek GS2000 Replacement UV Quartz Hot Mirror - IR Blocker is a ground and polished UV grade quartz that is suitable for Vutek GS2000 printers. The hot mirror is compatible with the following part numbers:

  • GS2000
  • GS 2000
  • GS-2000
  • GS/2000

The replacement quartz plate has the following dimensions:

  • 254mm x 101mm x 2mm

The UV hot mirror exceeds OEM standards of UV curing performance. A hot mirror is a specially designed dichroic filter that protects optical systems by reflecting infra red light back into the light source. By doing so, it allows the passage of visible light.

With the help of the UV hot mirror, you can ensure the reduction of the infrared rays (IR) effect that may have a role to play over the printing clarity. Together with the dichroic reflectors, the hot mirrors helps in improving UV energy and in reducing infra red energy that can cause a likely damage to certain substrates that are heat sensitive. By directing the IR energy to the filament, the hot mirror help in giving you a better printing experience by providing you a reliable way of removing heat.

CureUV’s hot mirror significantly reduces the chances of applications damage by heat, thereby reducing production costs and increasing production speed.

Technical Specifications:

  • Length: 253mm
  • Width: 100mm
  • Thickness: 2.2mm

Advantages:

  • Helps in greater transmittance in the area of UV light
  • Allows lesser heating up of the substrate surface
  • Greater suppression in the areas of infrared and visible light

Common Applications:

  • Graphics industry
  • Electronics industry
  • Wood processing industry
  • Surface treatments
  • Packaging industry
  • Sensitive labels and gluing industry
  • Printed circuit board industry
  • Automotive industry

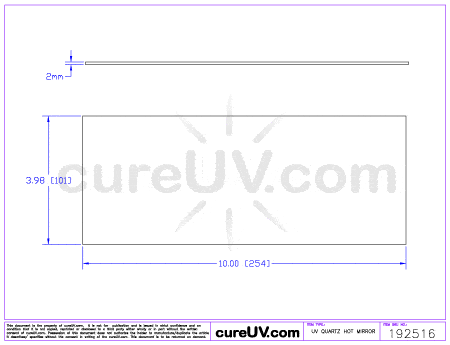

VUTEk GS2000 UV quartz hot mirror drawing

UV light transmittance graph for quartz hot mirror

  • Tavg > 85%: 220-400nm
  • Tavg < 30%: 430-630nm
  • Tavg <= 87%: 700-2500nm

VUTEk GS2000 UV Quartz Hot Mirror - Drawing (PDF)

UV light transmitted for Quartz hot mirror/IR blocker

*All UV quartz hot mirrors listed are compatible brand UV products. We do not sell VUTEk brand UV quartz hot mirrors. All VUTEk brand names, trademarks and logos are property of EFI/VUTEk.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
