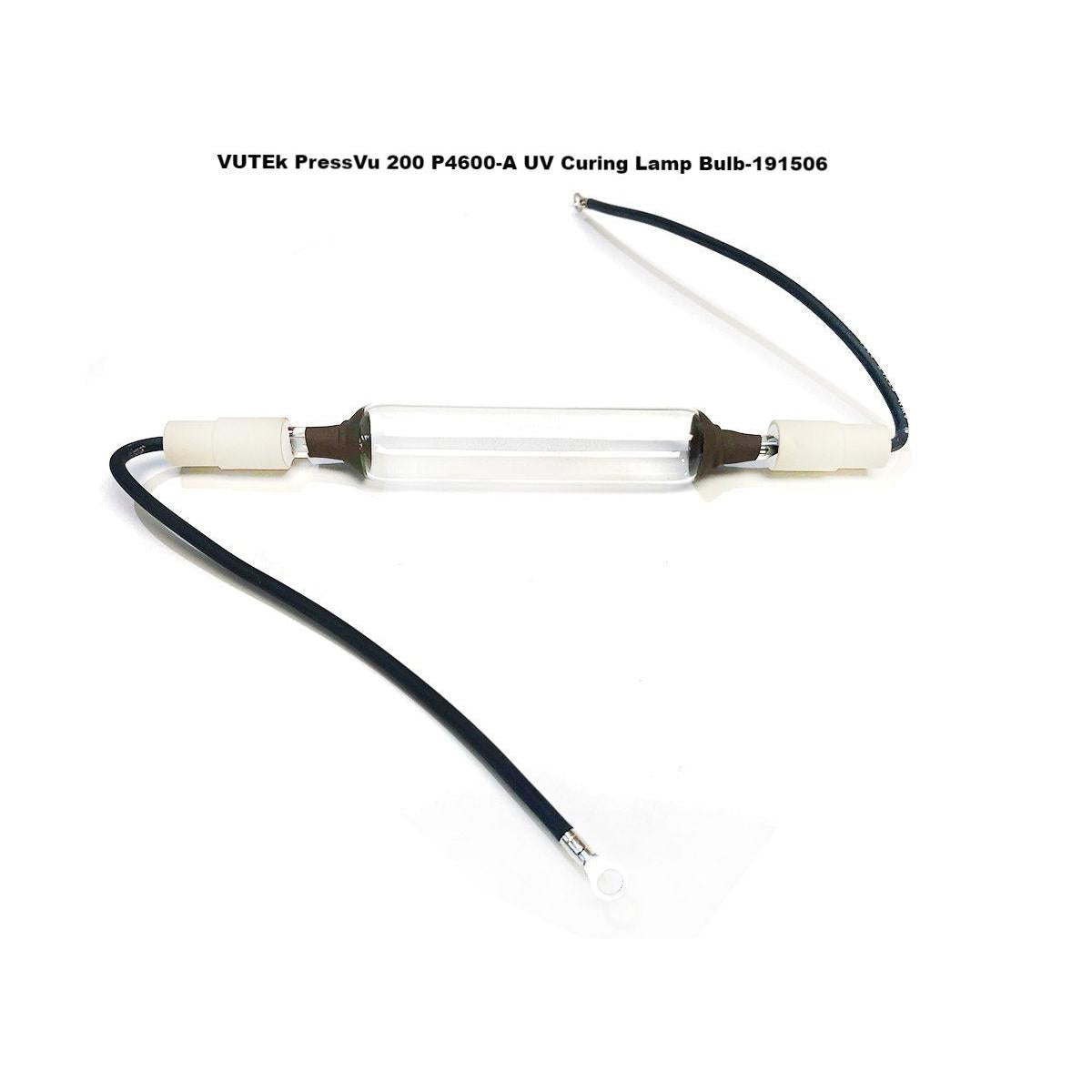

VUTEk PressVu 200 P4600-A UV Curing Lamp Bulb
VUTEk PressVu 200 P4600-A UV Curing Lamp Bulb UV Curing Lamp - VUTEk PressVu 200 P4600-A UV Curing Lamp Bulb VUTEk PressVu 200 P4600-A UV Curing Lamp Bulb VUTEk PressVu 200 P4600-A UV Curing Lamp Bulb

VUTEk PressVu 200 P4600-A UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$249.99 $278.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 4.25 Inch Arc Length - 8.65 Inch Total Length (end to end)

Our Vutek Pressvu 200 P4600-A UV Curing Lamp Bulb features an arc length of 4.25" and a tube diameter of 26mm. This replacement bulb is an iron-metal halide filled bulb and has a total length of 8.65". This curing bulb is a 100% generic replacement to the VUTEk PressVu 200 UV Flatbed Printer. The lamp bulb is compatible with the following part numbers:

  • P4600-A
  • PressVu 200
  • AA90974
  • F04B14F2
  • UVL/3404M

The replacement bulb exceeds OEM standards of bulb performance. It involves a process where high intensity UV rays dry or cure inks and coatings in printers. The method of UV curing also uses light instead of heat, which enables the ink to dry and harden instantly. The UV curing method is fast gaining popularity as against alternative traditional solvent-based products. With solvent-based products the risk of environmental pollution is greater as the solvent evaporates. This results in greater printing quality, better productivity and lower production costs.

Technical Specifications:

  • Fill: Iron-Metal Halide
  • Quartz: Standard
  • Arc Length: 4.25 Inches
  • Overall Length: 8.65 Inches
  • Tube Diameter: 26 mm
  • Watts Per Inch: 400 WPI

UV spectral output of an Iron doped Lamp

UV Spectral Output of an Iron doped Lamp (PDF)

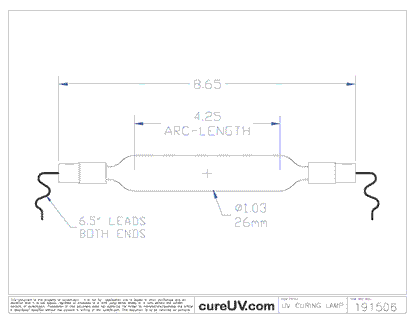

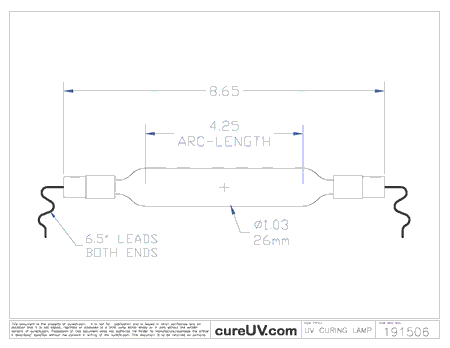

VUTEk PressVu 200 Compatible UV Lamp - Drawing (PDF)

VUTEk PressVu 200 compatible digital UV curing lamp drawing

*Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All lamps listed are compatible brand UV products. We do not sell EFI/VUTEk brand lamps. All EFI/VUTEk brand names, trademarks and logos are property of EFI.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
