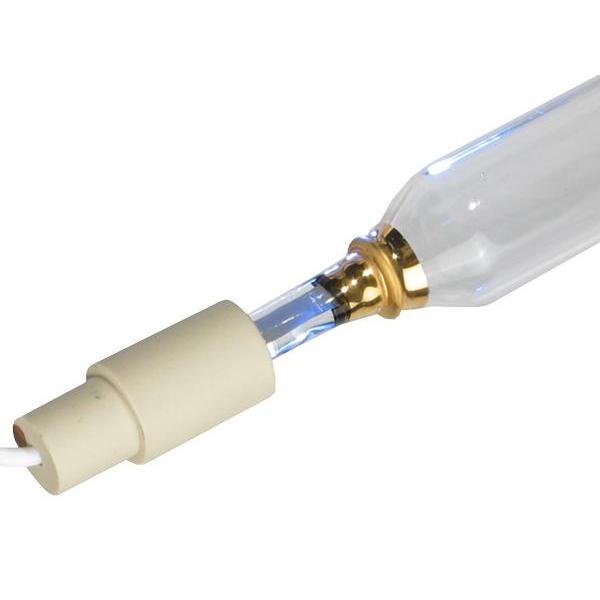

VUTEk PressVu 600 A19429 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 6 Inch Arc Length - 9.375 Inch Total Length (end to end)

The Vutek Pressvu 600 A19429 UV Curing Lamp Bulb is a 100% UV replacement bulb that is a guaranteed to give you hours of superior performance. With an arc length of 6" and a total length of 9.375", the iron filled metal halide lamp bulb is OEM compatible. The curing lamp bulb works for the VUTEk PressVu 600 UV Flatbed Printer with the following part numbers:

  • PressVu 600
  • A19429
  • AA9974
  • F06K5F1
  • UVL/3506M

System Application

  • VUTEk - Press Vu UV 200/600

The UV lamp gives you worry-free printing results every single time. Manufactured in the USA, this printer lamp bulb has a predictable lifespan. The replacement lamp helps in drying coatings of inks in signs and graphics. CureUV manufactures curing lamp bulbs in various arc lengths and spectral fills. The lamp also consists of a quartz plate that works as filler between the system and the lamp. The main purpose of a quartz plate is that it prevents dirt, grit and contaminants from building up on the lamp.

All CureUV lamps are subject to strict quality control measures to give you a good printing experience.

Technical Specifications:

  • Fill: Iron-Metal Halide
  • Quartz: Standard
  • Arc Length: 6 Inches
  • Overall Length: 9.375 Inches
  • Tube Diameter: 26.5 mm
  • Watts Per Inch: 500 WPI

UV spectral output of an Iron doped Lamp

UV Spectral Output of an Iron doped Lamp (PDF)

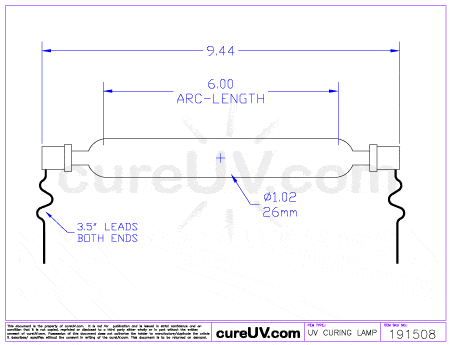

VUTEk PressVu 600 Compatible UV Lamp - Drawing (PDF)

VUTEk PressVu 600 compatible digital UV curing lamp drawing

*Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All lamps listed are compatible brand UV products. We do not sell EFI/VUTEk brand lamps. All EFI/VUTEk brand names, trademarks and logos are property of EFI.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
