Guaranteed 100% Ultraviolet (UV) Replacement Quartz Plate / Hot Mirror compatible for VUTEk PressVu 600

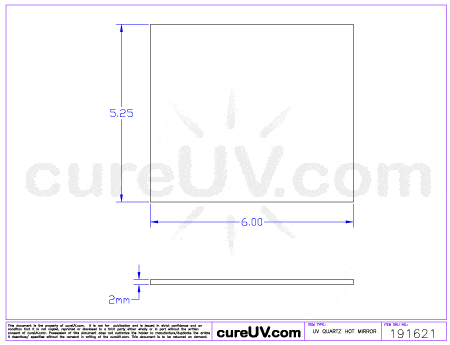

The Vutek Pressvu 600 Replacement UV Quartz Hot Mirror - IR Blocker is a guaranteed 100% replacement quartz plate/ hot mirror that is compatible with Vutek Pressvu 600 printer. The quartz hot mirror has the following dimensions:
- 6" x 5.25" x 2mm
The UV hot mirror is compatible with the following part numbers:
- PressVu 600
- Press Vu 600
CureUV’s quartz hot mirror exceeds OEM standards of curing performance. With this replacement hot mirror you can be sure of the significant reduction in the chances where the application is affected due to absorption, temperature and reflectivity. CureUV’s replacement quartz plate is specially designed dichroic filter that protects optical systems by reflecting infra red light back into the light source. By doing so, it allows the passage of visible light.
The hot mirror reduces the effect of infrared rays (IR) that may affect printing clarity. The hot mirrors, along with dichroic reflectors improve UV energy while reducing infra red energy. This causes likely damage to substrates that are heat sensitive. The hot mirror directs the IR energy to the filament to help reduce heat and thus gives you with a better printing experience.
CureUV’s hot mirror significantly reduces the chances of applications damage by heat, thereby reducing production costs and increasing production speed.
- Helps in greater transmittance in the area of UV light
- Allows lesser heating up of the substrate surface
- Greater suppression in the areas of infrared and visible light
- Graphics industry
- Electronics industry
- Wood processing industry
- Surface treatments
- Packaging industry
- Sensitive labels and gluing industry
- Printed circuit board industry
- Automotive industry
- Tavg > 85%: 220-400nm
- Tavg < 30%: 430-630nm
- Tavg <= 87%: 700-2500nm
*All quartz hot mirrors listed are compatible brand UV products. We do not sell EFI/VUTEk brand quartz hot mirrors. All EFI/VUTEk brand names, trademarks and logos are property of EFI.
*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
