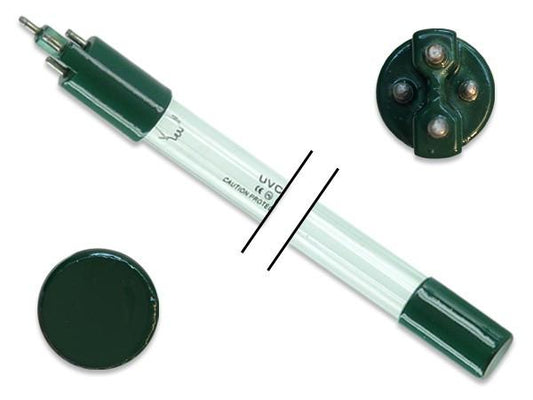

4 Pin Stepped on a Single End - 40 Watt Germicidal UVC Bulb

The 3M Aqua-Pure 56058-41 Replacement UVC Light Bulb is a compatible germicidal sterilizer that works for an ultraviolet purification system, which needs UVC intensity. This UVC bulb has a stepped pin configuration on one end of the lamp and is best suited for use with the following germicidal UVC system models:

Aqua-Pure APUV24
Aqua-Pure APUV65

The quality of drinking water has an immense effect on our well-being and germicidal light is proven to destroy viruses, bacteria, protozoa, molds and other harmful pathogens. The 40 Watt germicidal light bulb from CureUV.com features a wavelength with lethal effectiveness of up to 253.7nm that helps in disrupting the DNA of harmful microorganisms and renders them harmless. Measuring at 33.19 inches in length, the UVC lamp has a long lasting life rate of 10,000 hours. You get a 12 month worry free water sanitizing operation after which the light may still be visible but the germ destroying ability of the 3M Aqua-Pure 56058-41 Replacement UVC Light Bulb may have reduced.

Common Applications:

Aquaculture
Beverage Services and Processing
Drinking Water
Food Services and Processing
Municipal Wastewater
Pools, Spas, and Water Features
Well Water

Technical Specifications:

Total Length: 33.19 inches (843mm)
Arc Length: 29.92 inches (760mm)
Lamp Quartz Diameter: 15mm
Operating Current: 420mA
Lamp Voltage: 120V
Lamp Wattage: 40 Watts
Output UVC Watts: 16 Watts
Output uW/cm^2 @ 1m: 150
Peak UV Output: 253.7nm
Glass Type: Non Ozone

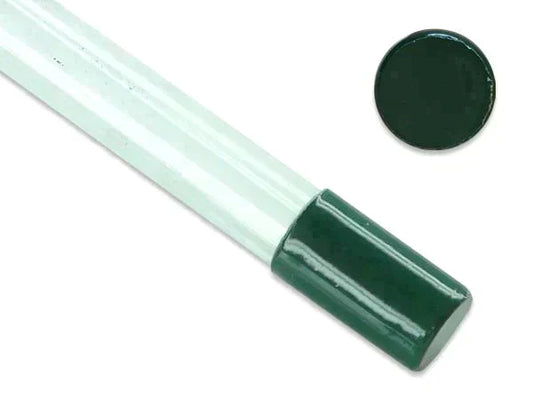

Base Style: 4 pin stepped on a single end
Base Material: Green Ceramic
Rated Life: Up to 10,000 hours

Spectral Output of Germicidal UVC Light Bulbs

Spectral Output of Germicidal UVC Light Bulbs (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Drawing of 3M Aqua-Pure 56058-41 UVC Bulb - item # 192629

Drawing of Replacement UVC Bulb Item # 192629 (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell 3M Aqua-Pure brand UVC bulbs. All 3M Aqua-Pure brand names, trademarks, and logos are property of 3M.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
