4 Pin on a Single End - 33 Watt Germicidal Water Treatment Bulb

CureUV.com is your one-stop-shop for high quality UV-C replacement lamps and other related products. The American Water Service PT-12 Replacement UVC Light Bulb is 100% compatible for use with the following germicidal UV-C system model:

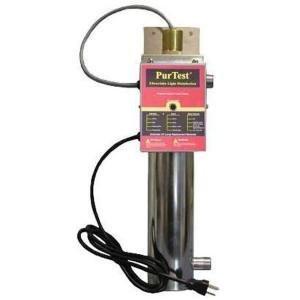

PurTest PT-12

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

CureUV's ultraviolet lamps are manufactured using the highest industry standards and meets or exceeds the OEM specifications. We ensure that each lamp from CureUV undergoes 100% quality control inspection to provide you the utmost safety with water. This UVC bulb comes with a four pin, single end configuration.

The 33 watt UVC bulb features a wavelength with lethal effectiveness of up to 253.7nm. This causes a disruption of the microorganism DNA and renders them harmless. Measuring at 29.09 inches in length, this UVC lamp has a life of up to 10,000 hours. With CureUV's UV lamp, you get 12 month worry-free operation after which we recommend that you replace the light bulb. At this point, the American Water Service PT-12 Replacement UVC Light Bulb may continue to emit light but its germ destroying ability may have been drastically reduced.

Common Applications:

Aquaculture
Beverage Services and Processing
Drinking Water
Food Services and Processing
Municipal Wastewater
Pools, Spas, and Water Features
Well Water

Technical Specifications:

Total Length: 29.09 inches (739mm)
Arc Length: 25.79 inches (655mm)
Lamp Quartz Diameter: 15mm
Operating Current: 420mA
Lamp Voltage: 92V
Lamp Wattage: 33 Watts
Peak UV Output: 253.7nm
Glass Type: Non Ozone
Base Style: 4 pin on a single end
Base Material: Ceramic
Rated Life: Up to 10,000 hours

Common Locations for use:

Factories
Farms
Homes
Hospitals
Hotels
Laboratories
Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192317 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of American Water Service PT-12 UVC Bulb - item # 192317

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Water Service brand UVC bulbs. All American Water Service brand names, trademarks, and logos are property of American Water Service.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

American Water Service

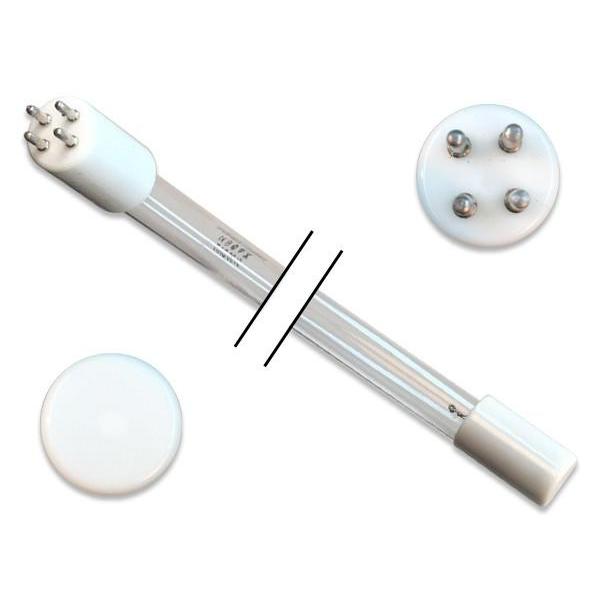

American Water Service PT-8 UV Bulb - Compatible Replacement Lamp

American Water Service PT-12 Replacement UVC Light Bulb

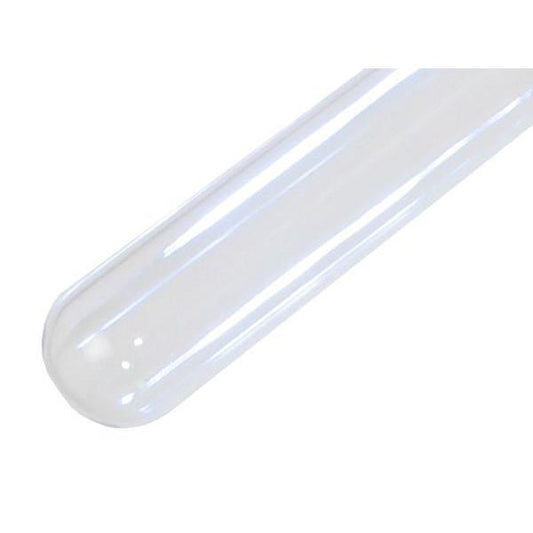

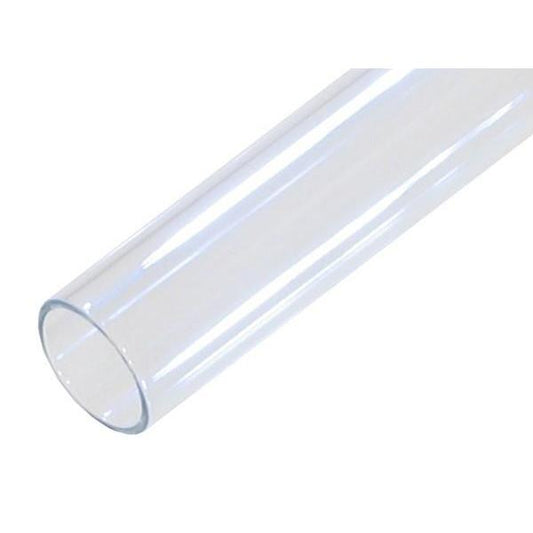

American Water Service PT-8 UV Quartz Sleeve

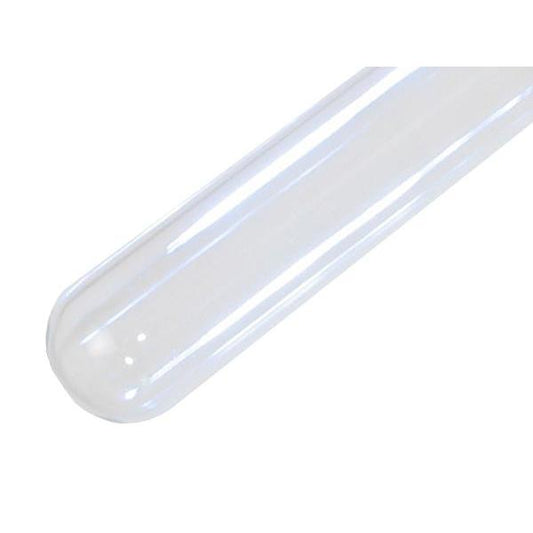

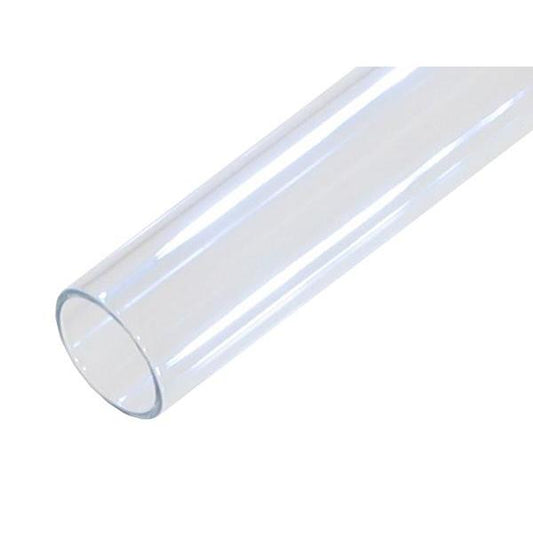

Quartz Sleeve for American Water Service PT-12 Replacement UVC Light Bulb

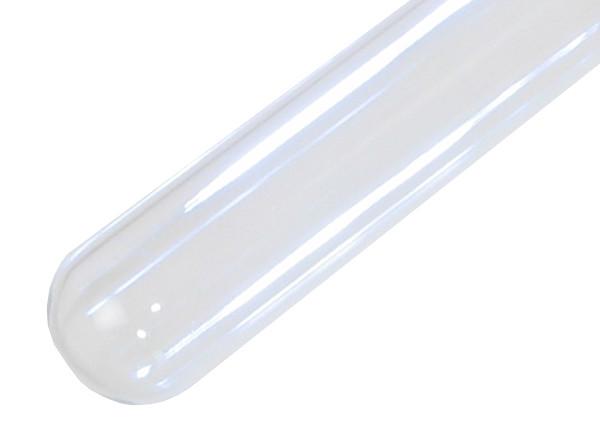

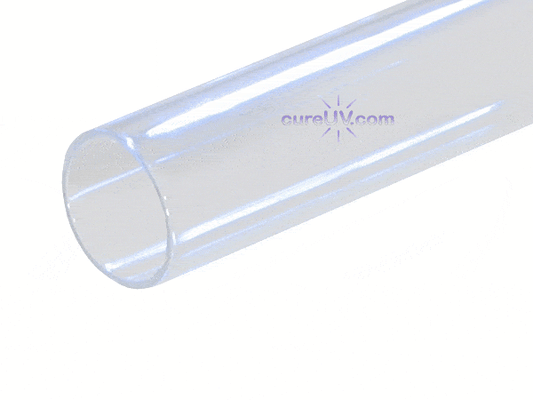

American Water Service UV Compatible Open Quartz Sleeve, Model PT20
