The Clean, Safe Technology that provides Germ-Free Water without the use of chemicals

The PURA Residential Premium UV Water Filtration System helps you drink chemical-free water every time. The PURA UV Water Treatment Systems provides you with clean, drinking, disinfection-free water and works as a security guard for your water supply.

The PURA system covers 3 GPM (light use) to 20 GPM (industrial capacity) and kills 99.9% of harmful microbiological pathogens that include, bacteria, viruses, molds, E.coli, cysts, cryptosporidium, giardia lamblia, and more

The water filtration system provides continuous ultraviolet disinfection to keep your drinking water clean and safe. The system comes with simple installation, which means you can fix it yourself. Further, the system is easy to maintain. The filtration system consists of high-quality stainless steel construction that and innovative diagnostic features on LED. The filtration system comes with color user interface that comes with full diagnostic and warnings and includes QR codes. The filtration system comes with "Future-proof" expandability port that makes it possible for future upgrades and options. The system is designed and manufactured to ASME pressure vessel standards. The filtration system also has a visual glow plug.

Guidelines for Use
Parameter	Level
Hardnesss	< 7 gpg (120 mg/L)
Iron (Fe)	< 0.3ppm (mg/L)
Manganese (Mn)	< 0.05ppm (mg/L)
Tannins (organics)	< 0.1ppm (mg/L)
Turbidity	< 1 NTU
Transmittance (UVT)	> 75%

Residential UV Premium Water Filtration System Specifications
Model	3 GPM	6 GPM	10 GPM	15 GPM	20 GPM
Flow Rate (@ 16mJ/cm^2)	6 GPM 23 lpm 1.4 m^3/hr	11 GPM 41 lpm 2.5 m^3/hr	20 GPM 77 lpm 4.6 m^3/hr	30 GPM 113.6 lpm 6.8 m^3/hr	39.2 GPM 150 lpm 8.9 m^3/hr
Flow Rate (@ 30mJ/cm^2)	3 GPM 11.4 lpm 0.7 m^3/hr	6 GPM 22.7 lpm 1.4 m^3/hr	11 GPM 41 lpm 2.5 m^3/hr	15 GPM 57 lpm 3.4 m^3/hr	21 GPM 79 lpm 4.8 m^3/hr
Flow Rate (@ 40mJ/cm^2)	2.4 GPM 9.1 lpm 0.5 m^3/hr	4.4 GPM 17 lpm 1.0 m^3/hr	8.3 GPM 31 lpm 1.9 m^3/hr	12 GPM 45.4 lpm 2.7 m^3/hr	16 GPM 59 lpm 3.6 m^3/hr
Port Size	1/2" MNPT	3/4" MNPT	3/4" MNPT	1" MNPT	1" MNPT
Electrical	90-265V/50-60Hz.
Plug Type	North American, NEMA 5-15P, 3-wire for all 110V
Lamp Power (Watts)	15W	22W	39W	50W	42W
Power (Watts)	20W	30W	49W	62W	51W
Reactor Dimensions	2.5" x 14.3"	2.5" x 21.3"	2.5" x 35.2"	2.5" x 40"	3.5" x 36.1"
Chamber Material	Polished 304 Stainless Steel, A249 Pressure Rated Tubing
Controller Dimensions	6.8" x 3.6" x 3"
Operating Pressure	0.7-10.3 bar (10-150 psi)
Operating Water Temperature	2-40°C (36-104°F)
UV Monitor Port	No	Yes, Upgrade Available
Solenoid Output	Yes (requires optional solenoid module)
Dry Contacts	Yes (requires remote alarm module)
4-20mA Output	Yes (requires optional 4-20mA module)
Lamp Change Reminder	Yes (audible and visual)
Lamp Out Indicator	Yes (audible and visual)
Shipping Weight	7.3 lbs	9.3 lbs	15 lbs	17.6 lbs	16.5 lbs

What's in the box/included:

Controller (fits all 110V GEN5 units)
Glow Plug
Gland Nut
O-Ring

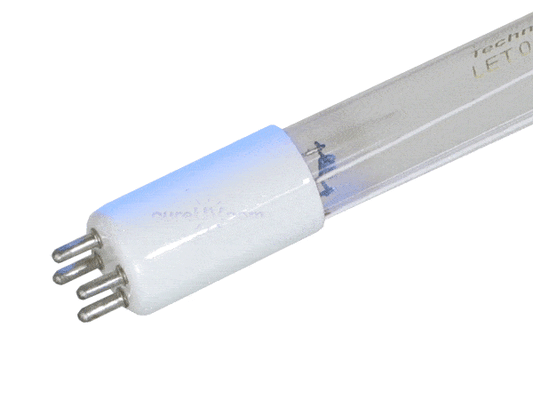

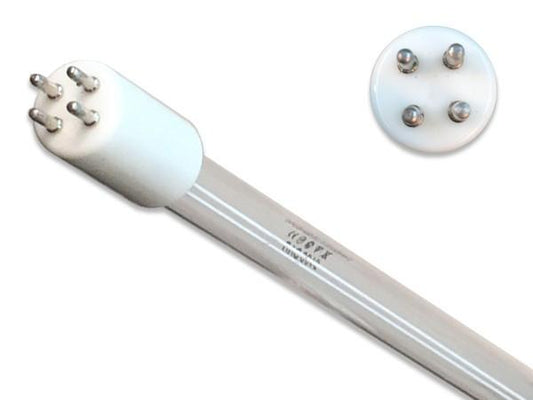

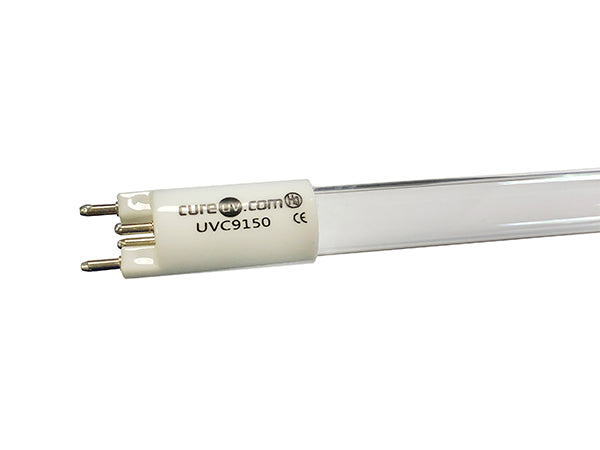

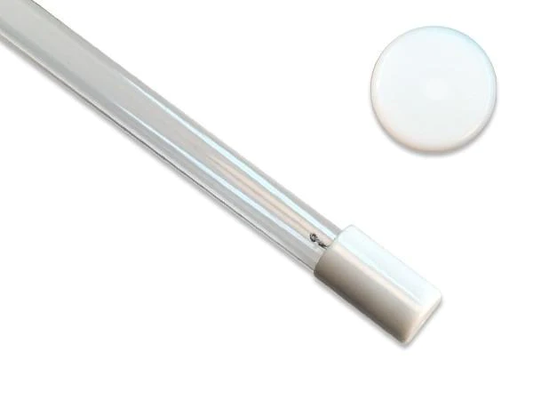

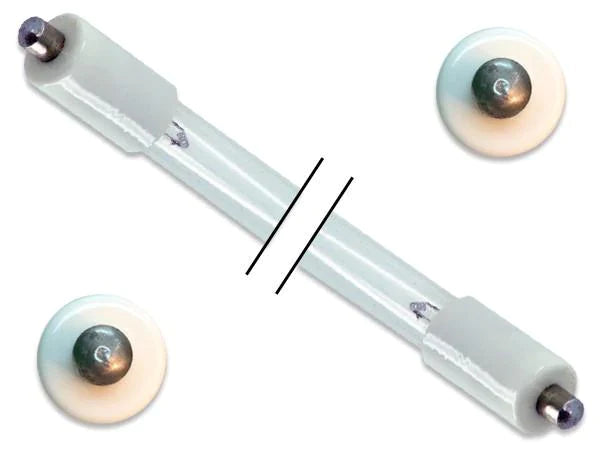

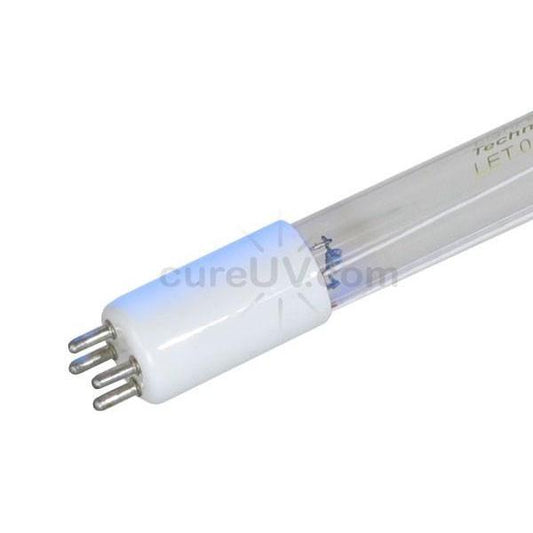

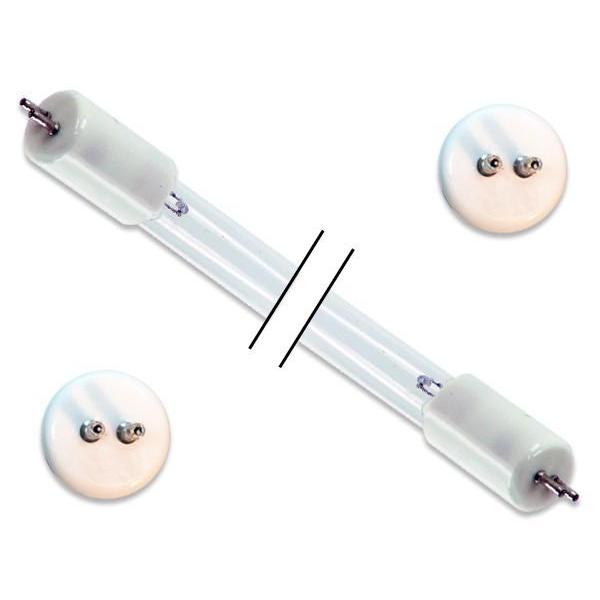

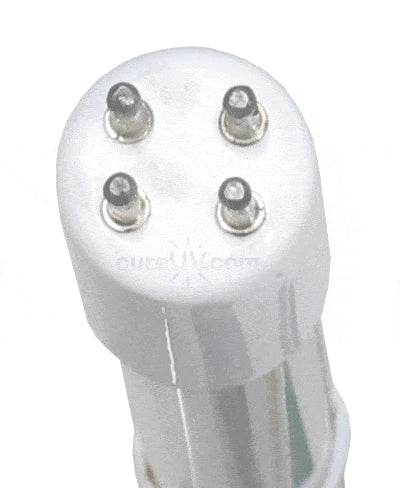

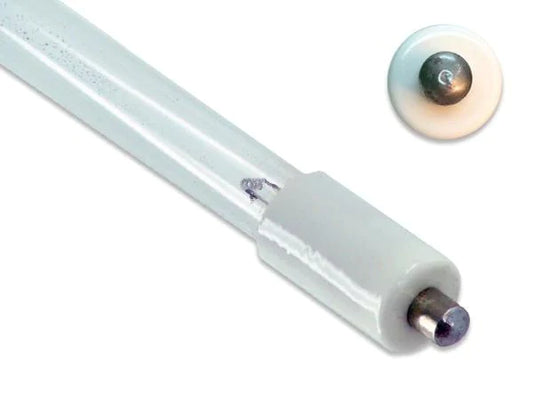

UV Lamp
Sleeve Spring

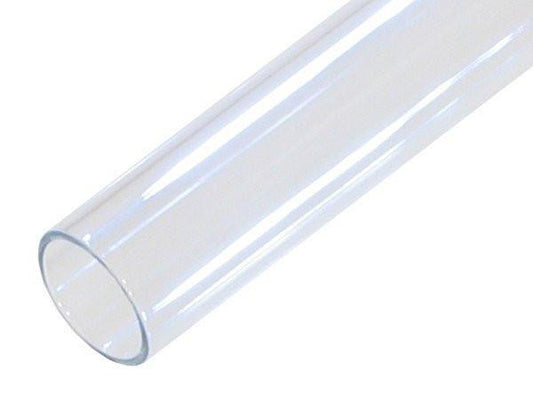

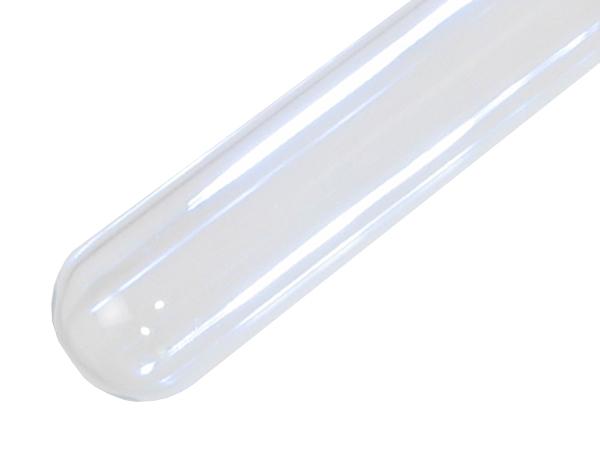

Quartz Sleeve

Cross-sells - Controller, Glow plug, Glow plug O-ring, Glow plug brass nut, Glow plug full assembly, Gland nut, O-ring, UV lamp (3 gpm), UV lamp (6 gpm), UV lamp (10 gpm), UV lamp (15 gpm), UV lamp (20 gpm), Sleeve spring, Quartz sleeve (3 gpm), Quartz sleeve (6 gpm), Quartz sleeve (10 gpm), Quartz sleeve (15 gpm), Quartz sleeve (20 gpm)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
