Atlantic Ultraviolet Authentic Replacement 05-1370-R UVC Light Bulb
Atlantic Ultraviolet Authentic Replacement 05-1370-R UVC Light Bulb Atlantic Ultraviolet 05-1370-R Replacement UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1370-R UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1370-R UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1370-R UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1370-R UVC Light Bulb

Atlantic Ultraviolet Authentic Replacement 05-1370-R UVC Light Bulb
Free Gift

$59.99

4 Pin on a Single End - 25 Watt Germicidal Water Treatment Bulb

Our Atlantic Ultraviolet 05-1370-R Replacement UVC Light Bulb has a base style of four pin on a single end. The 25 Watt water treatment bulb has a rated life of 10,000 hours after which we recommend that you replace the bulb even if it emits light rays. With a peak output of 253.7nm, the replacement light bulb helps in altering the genetics of the microorganisms present in water. This method of water treatment is effective against water borne microorganisms that can cause diseases.

CureUV’s ultraviolet lamps are manufactured using the high industry standards and meets or exceeds the OEM specifications. We ensure that each lamp from CureUV undergoes 100% quality control inspection. Measuring at 17.17 inches in length, this UVC lamp is a compatible replacement with the following UVC systems and their part numbers:

If you would like a generic equivalent replacement in order to save money, please select that option at the dropdown menu by the add to cart button.

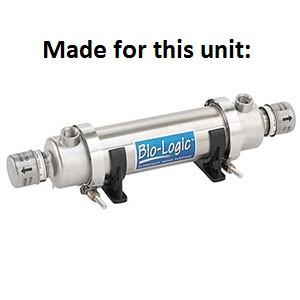

BioLogic

  • BIO-3

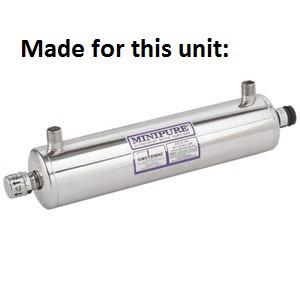

Minipure

  • MIN-6

With the UVC light technology you can be sure of effectively destroying pathogens such as bacteria, virus, molds and yeasts.

Common Applications:

  • Air Conditioners
  • Air Purifiers
  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Surface Disinfection
  • Well Water

Technical Specifications:

  • Total Length: 17.17 inches (436mm)
  • Arc Length: 13.78 inches (350mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 370mA
  • Lamp Voltage: 67V
  • Lamp Wattage: 25 Watts
  • Output UVC Watts: 7.3 Watts
  • Output uW/cm^2 @ 1m: 72
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194530 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

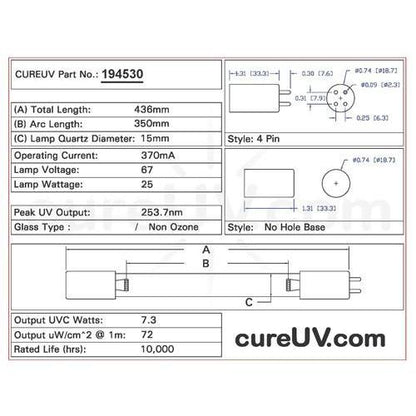

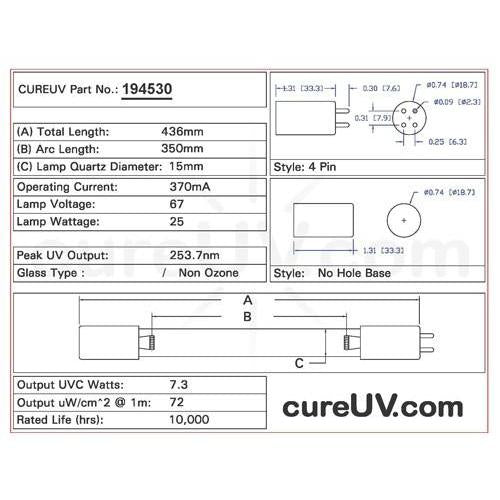

Drawing of Atlantic Ultraviolet 05-1370-R UVC Bulb - item # 194530

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
