4 Pin on a Single End - 25 Watt Germicidal Water Treatment Bulb
Our Atlantic Ultraviolet 05-1370-R Authentic Replacement UVC Light Bulb has a base style of four-pin on a single end. The 25 Watt water treatment bulb has a rated life of 10,000 hours after which we recommend that you replace the bulb even if it emits light rays. With a peak output of 253.7nm, the replacement light bulb helps alter the genetics of the microorganisms present in water. This method of water treatment is effective against water-borne microorganisms that can cause harmful bacteria and microorganisms.
Ultraviolet lamps are manufactured using high industry standards and meet or exceed the OEM specifications. We ensure that each lamp undergoes 100% quality control inspection. Measuring 17.17 inches in length, this UVC lamp is a compatible replacement with the following UVC systems and their part numbers:

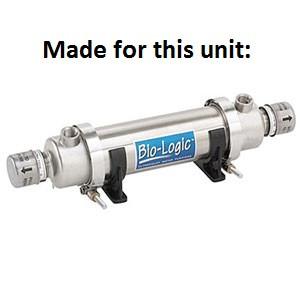

- BioLogic: BIO-3

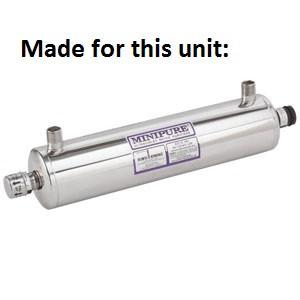

- Minipure: MIN-6
With UVC light technology, you can effectively destroy pathogens such as bacteria, viruses, molds, and yeasts.
If you would like a generic equivalent replacement in order to save money, you can find it by clicking here. Generic replacements ensure 100% compatibility and effectiveness.
- Air Conditioners
- Air Purifiers
- Beverage Services and Processing
- Food Services and Processing
- Heating & Cooling Filters
- HVAC Systems
- Municipal Wastewater
- Pools, Spas, and Water Features
- Surface Disinfection
- Well Water
- Total Length: 17.17 inches (436mm)
- Arc Length: 13.78 inches (350mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 370mA
- Lamp Voltage: 67V
- Lamp Wattage: 25 Watts
- Output UVC Watts: 7.3 Watts
- Output uW/cm^2 @ 1m: 72
- Peak UV Output: 253.7nm
- Glass Type: Non-Ozone
- Base Style: 4 pin on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Common Locations for use:

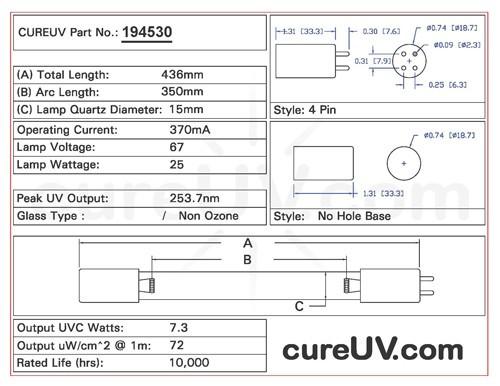

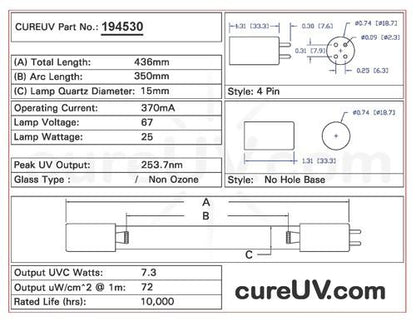

Drawing of Replacement UVC Bulb Item # 194530-AU
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
