Single Pin Double Ended - 75 Watt Germicidal Air & Surface Treatment Bulb
The Atlantic Ultraviolet 05-1338A-R Authentic Replacement UVC Light Bulb is a single-pin double-ended Germicidal Air & Surface Treatment Bulb that has a total length of 61.22". The 75 Watt water treatment bulb has a ceramic base material and can last for up to 10,000 hours.
12-month worry-free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb, but it quickly diminishes its germ-killing ability. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.
This authentic replacement germicidal bulb is used for ultraviolet air and surface purification and is well-suited for applications that require UV-C intensity.
Ultraviolet lamps are manufactured using high industry standards and meet or exceed the OEM specifications. We ensure that each lamp undergoes 100% quality control inspection.
UVC light technology is used to sanitize, kill, and is a 99.9% proven effective treatment against:
If you would like a generic equivalent replacement in order to save money, you can find it by clicking here. Generic replacements ensure 100% compatibility and effectiveness.
Common Applications for use:
- Air Conditioners
- Air Purifiers
- Beverage Services and Processing
- Food Services and Processing
- Heating & Cooling Filters
- HVAC Systems
- Surface Disinfection
Common Locations for use:
- Total Length: 61.22 inches (1555mm)
- Arc Length: 58.66 inches (1490mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 450mA
- Lamp Voltage: 175V
- Lamp Wattage: 75 Watts
- Output UVC Watts: 30 Watts
- Output uW/cm^2 @ 1m: 260
- Peak UV Output: 253.7nm
- Glass Type: Non-Ozone
- Base Style: Single pin double ended
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
- SaniLight D64-1S
- SaniLight D64-2S
- SaniRay RRD64-1S
- SaniRay RRD64-2S
- SaniRay RRD64-4S

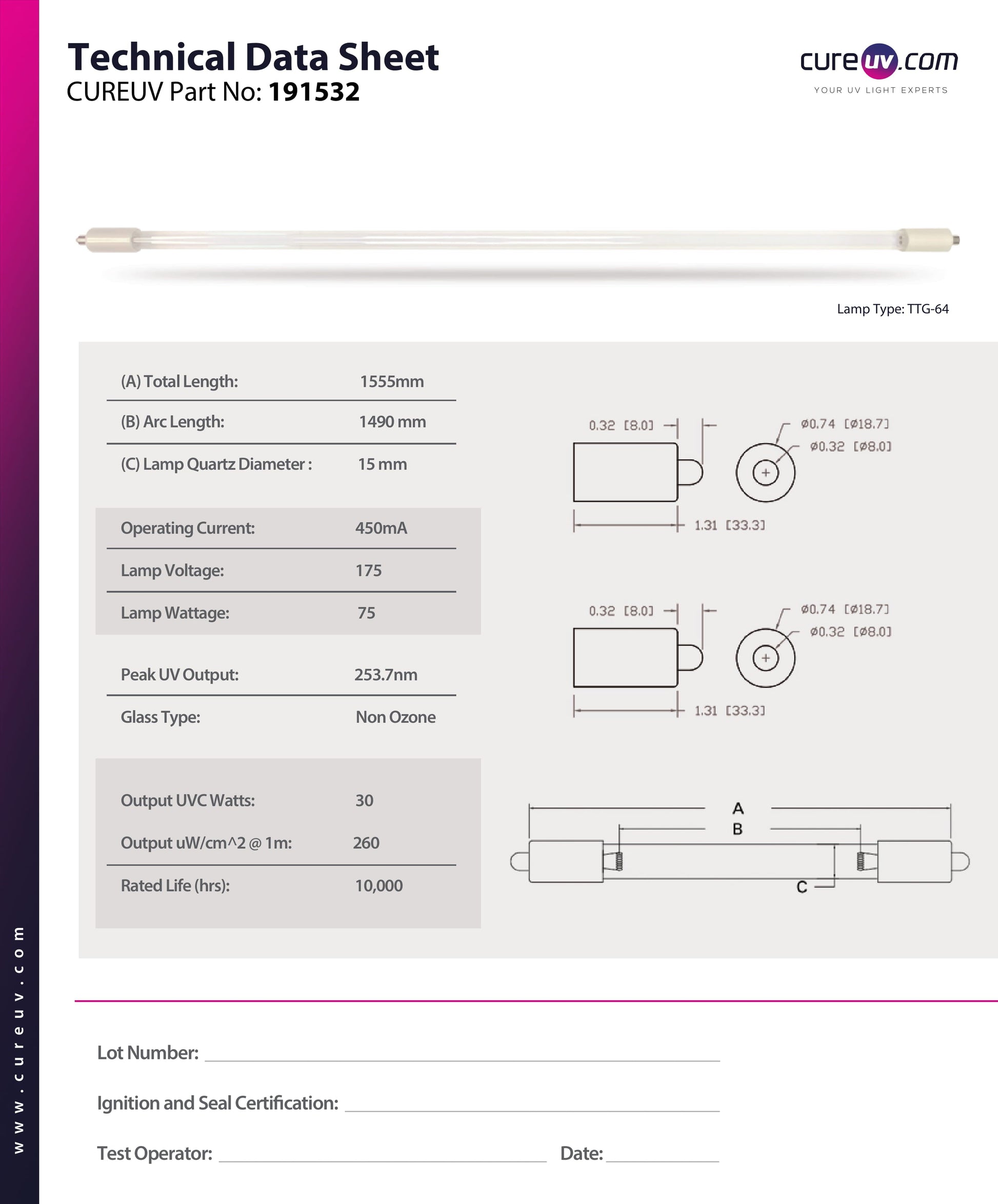

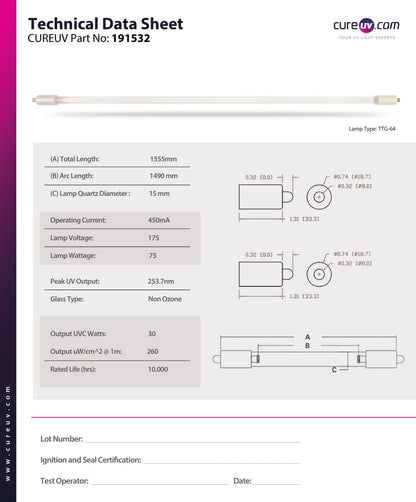

Technical Data Sheet:
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
