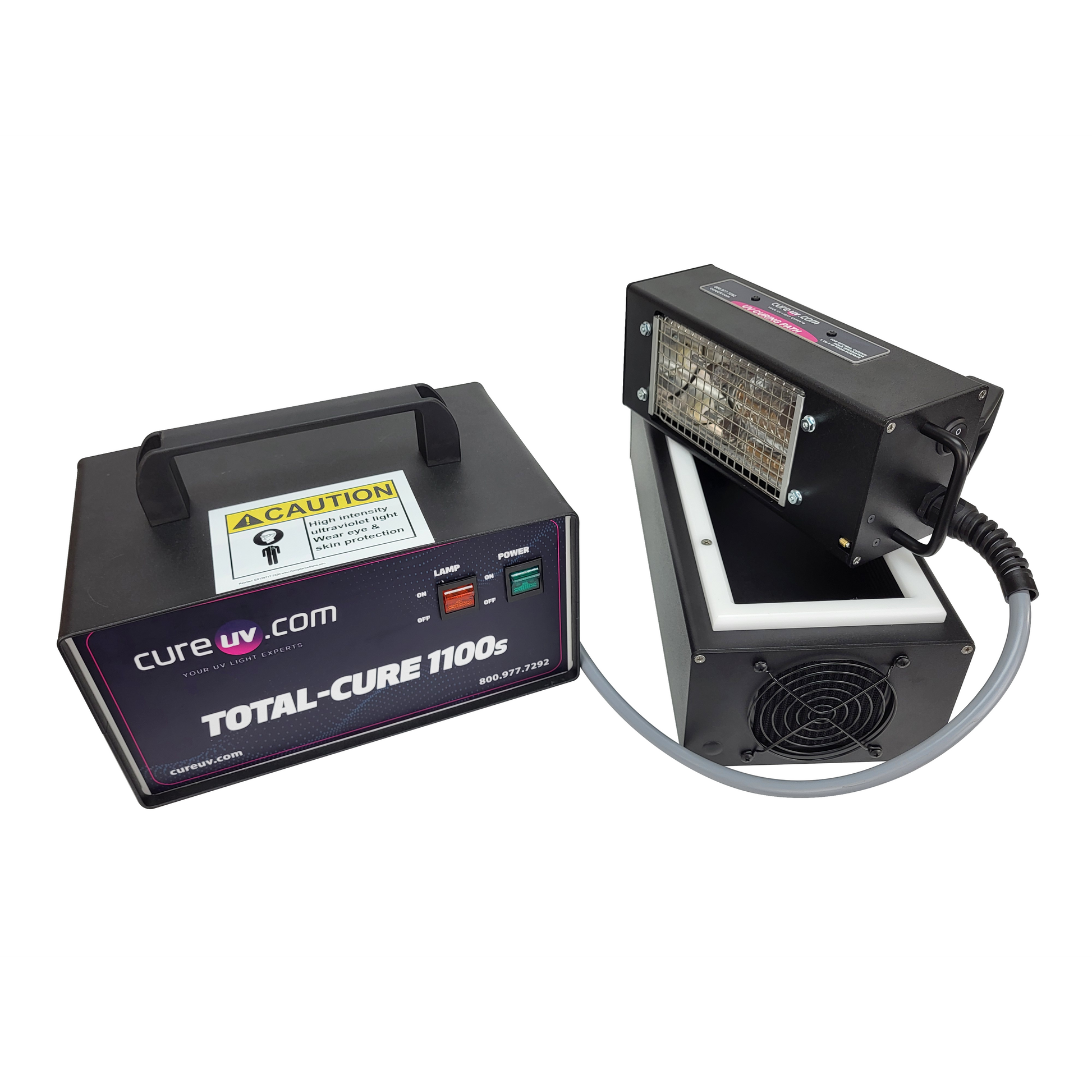

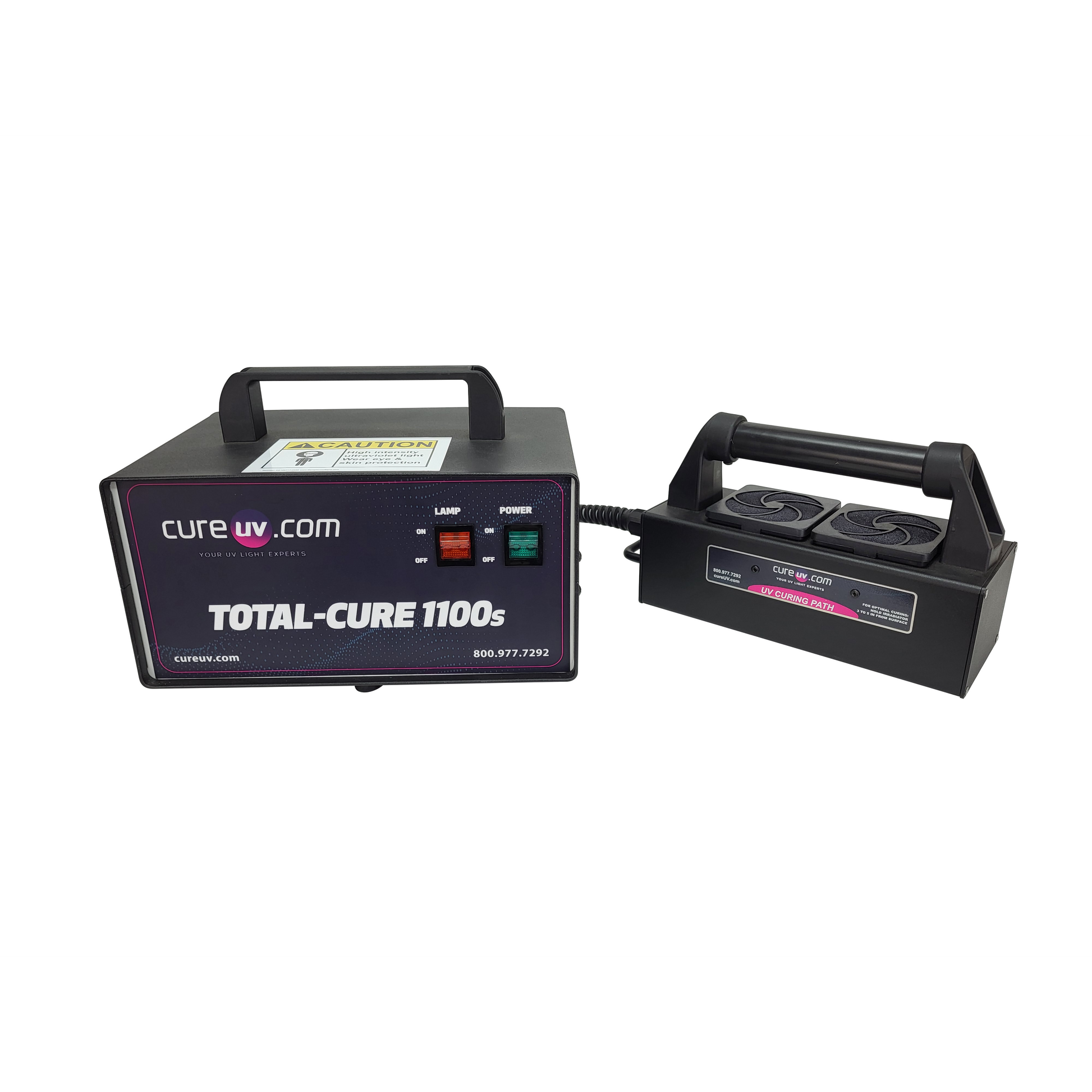

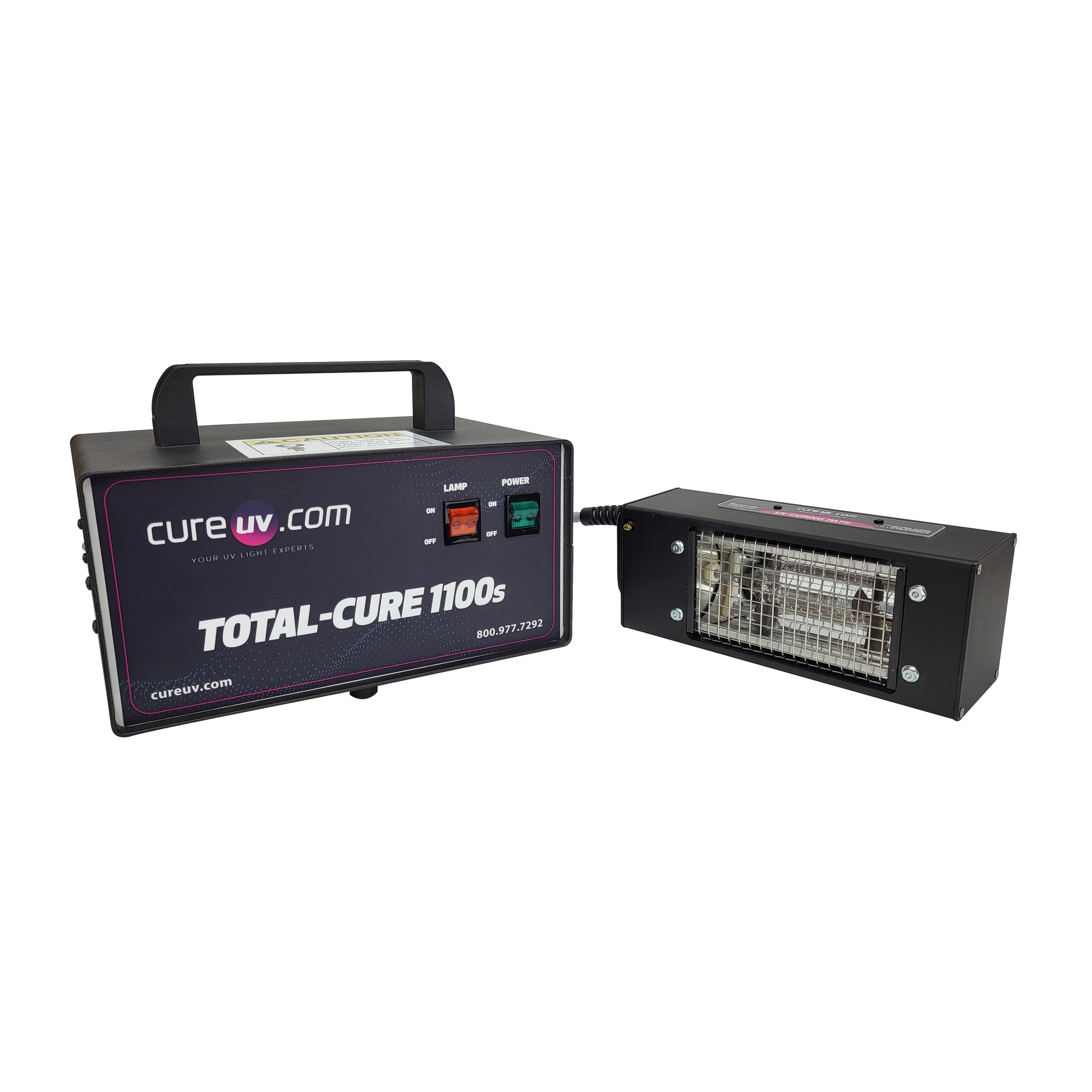

The Total-Cure 1100S handheld UV curing system is without a doubt the most powerful and versatile UV curing system in its class.
This portable and rugged UV system has a maximum output of over 1100 watts. Its curing width of 3" and uniform ultraviolet exposure make working on wood, glue, epoxies, and other coatings a joy.
Designed to be user-friendly, the Total-Cure1100S works perfectly on any UV curing application (see the typical applications below). It even switches to low power when placed in its standby nest to lower your power consumption. Unlike our more powerful UV systems, the 1100S is the most powerful system that will plug right into a standard 120-volt wall outlet so no need to call an electrician to set up your workplace!
The compact package allows the system to be permanently mounted in a fixed location for the sake of automation or to be used as a portable system and transported for on-site UV applications. The system is designed with safety and heat in mind so unlike systems of similar power, the smart nest prevents the handheld irradiator from creating unnecessary risks in between passes.
Features:
- 1100 Watts of Power: With over twice the power of other systems in its class, the Total-Cure 1100S is able to cure coatings that other systems would leave tacky and wet.
- Output Wavelength Versatility: The 1100s system allows you to run bulbs of 5 types (Mercury, Iron-doped, Lead-doped, Galium-doped, and Indium-doped) to ensure you get the correct wavelength to match your coating.

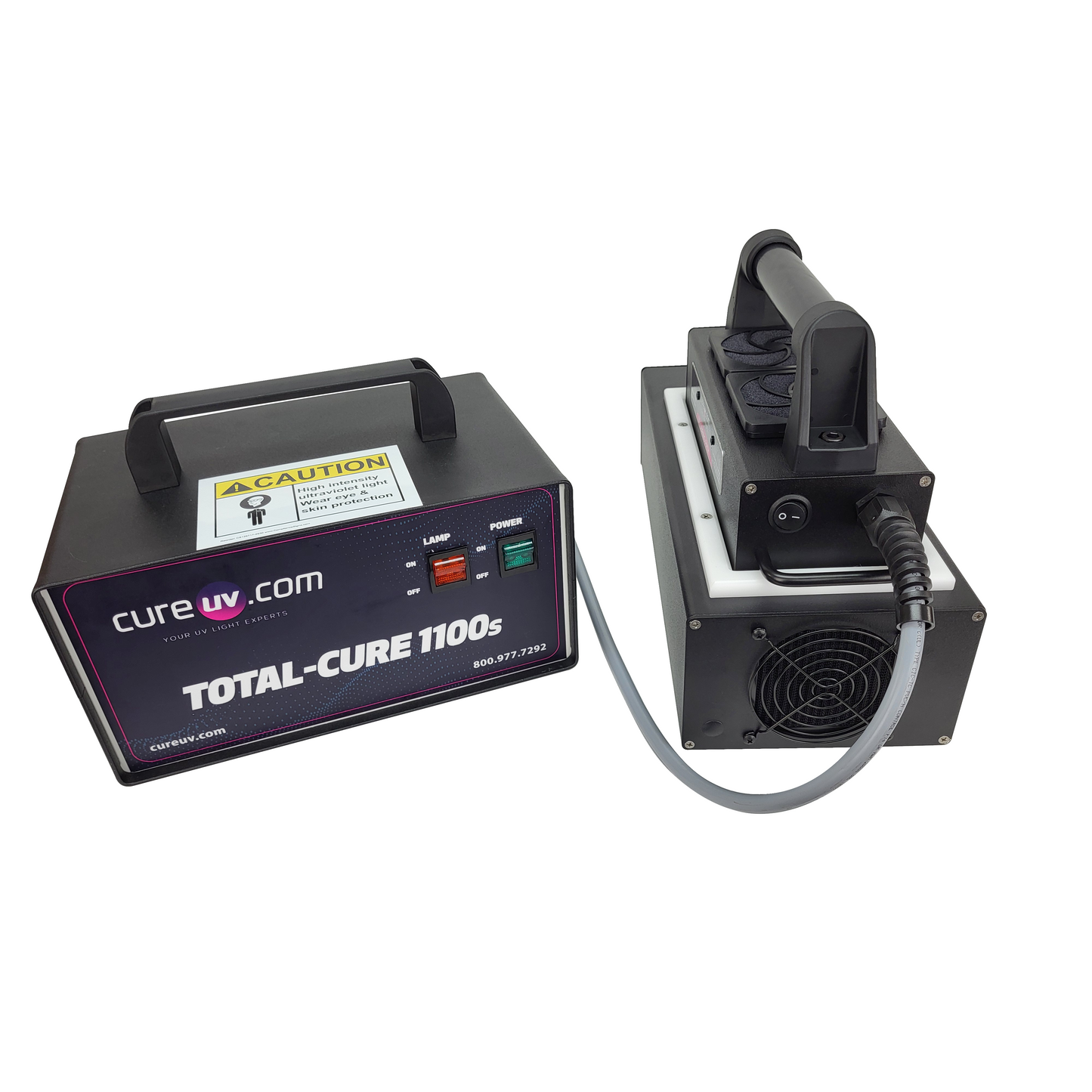

- Smart Nest: Whenever you are not using the convenient handheld wand, simply place it in the nest and it automatically goes into standby mode. This not only lowers your power consumption but extends bulb life and reduces any safety concerns.
- Uniform power delivery: All Total-Cure systems are thoroughly tested for uniform power delivery. Medium pressure bulbs are susceptible to strong points and weak points, our design minimizes variance throughout the curing area.
- 120V/60Hz plug-and-play: Unlike more powerful systems such as our Total-Cure 2400 that require a special 220V connection, this system plugs right into a standard wall outlets in the US which allows for a convenient setup but also gives you the power to take it on-site and get the job done without needing to bring in an electrician.
- Made in the USA : Unlike our competitors, we still do all of our design, engineering, and manufacturing right in our Jacksonville, FL headquarters.
- Industry Leading Warranty: Our US production allows us to ensure that our UV systems meet the highest quality standards and that is why we can so easily offer a 2-year warranty right out of the box. Whether you purchased our system 1, 5, or even 10 years ago. We stand by our systems.
Wavelength
However, we would love to help figure out exactly which bulb is right for your application. Please feel free to reach out to us if you have any doubts.
Replacement Mercury Bulb | Replacement Iron Bulb | Replacement Gallium Bulb | Replacement Indium Bulb |
365nm | 390nm | 420nm | 440nm |
Typical Applications:
- UV Adhesives
- UV Finishes
- UV Clear Coats
- UV Paint
- UV Ink
- UV Varnish
- Creating Photo-Initiated Reactions for Lab Use

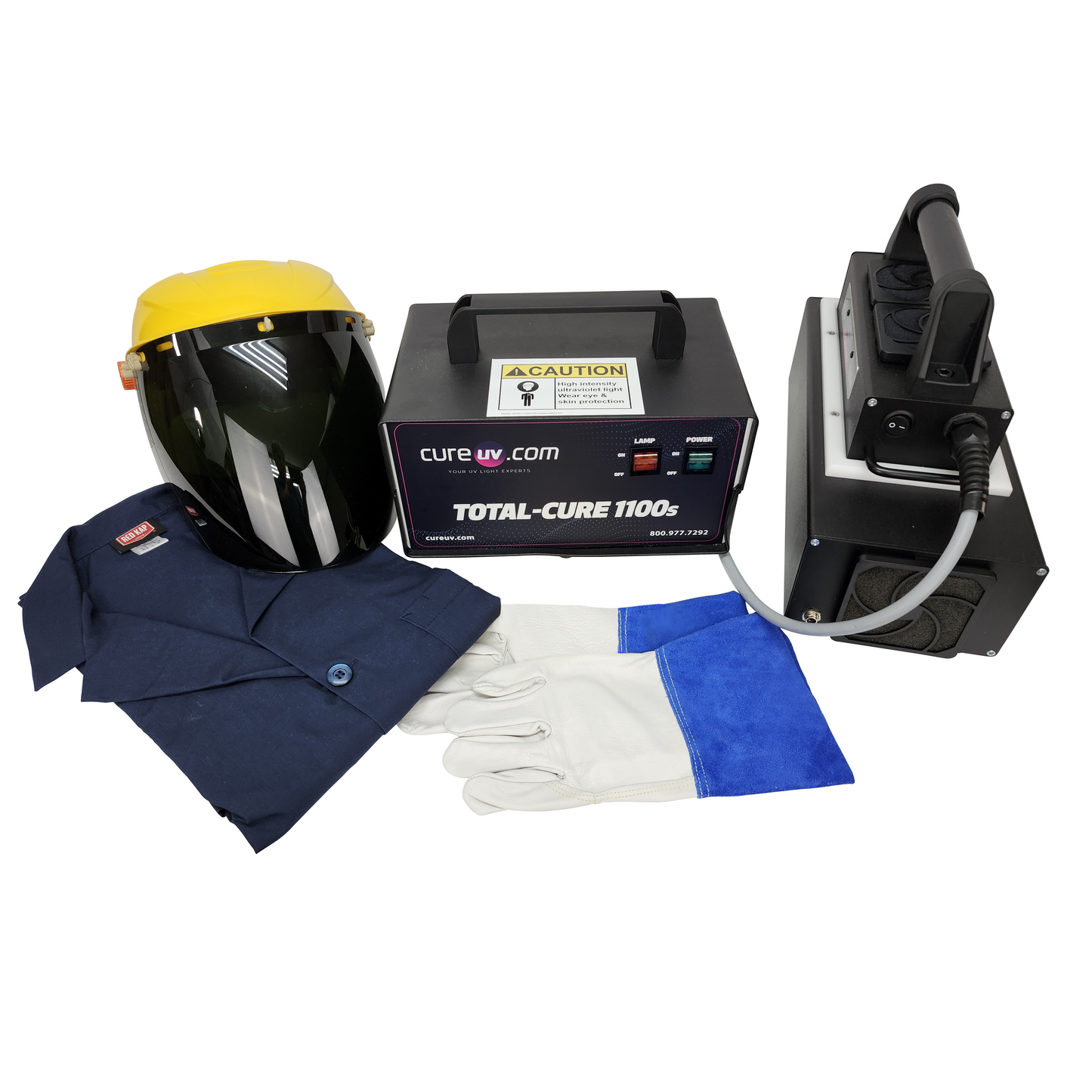

What's in the Box:
- UV irradiator.
- Power supply
- Stand-by smart nest
- UV Safety gear

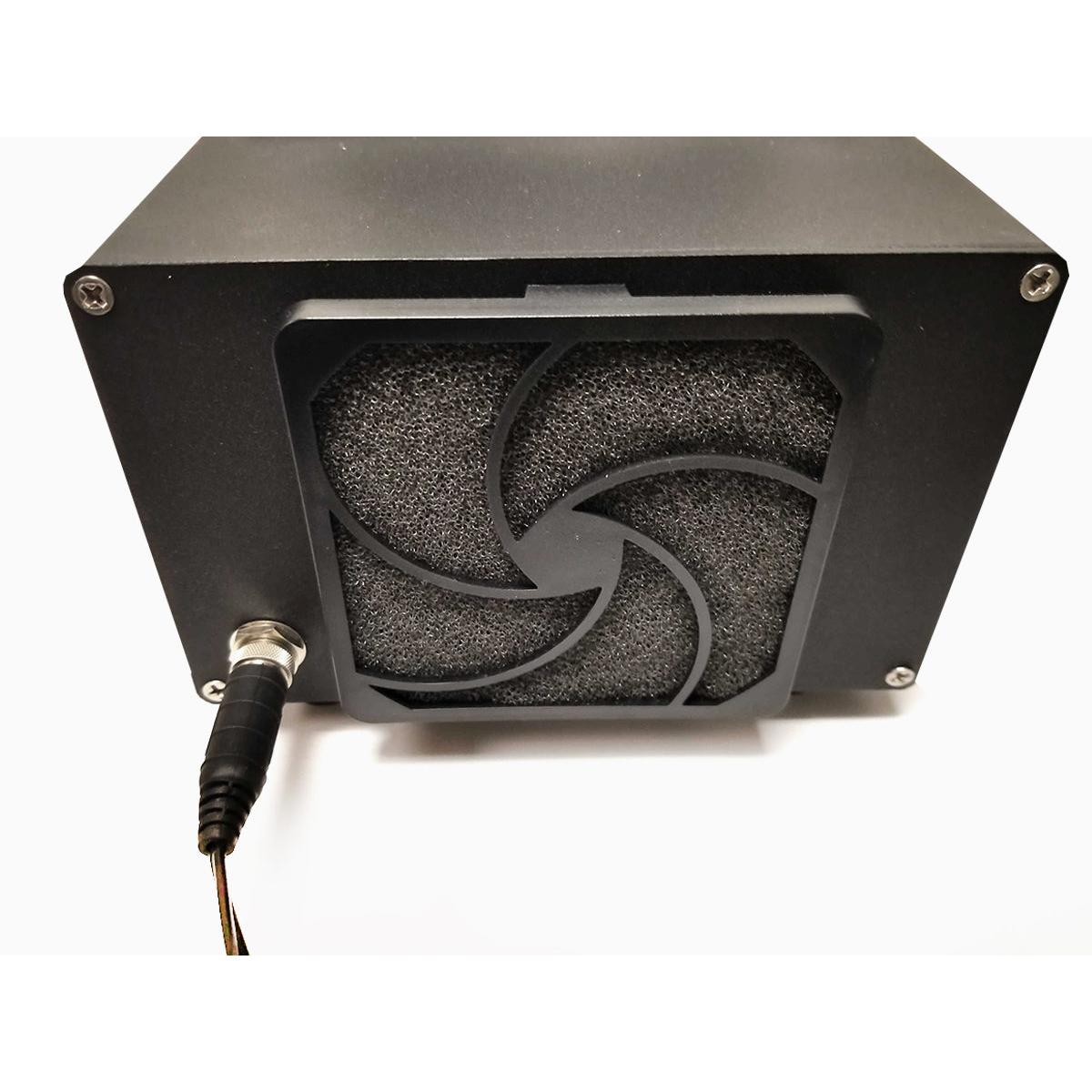

- Power Pack for Cooling Nest
Power Pack for Cooling Nest Available Separately
Specifications:
- Available Bulbs: Mercury (Hg), Iron (Fe), Gallium (Ga), Indium (In), Lead (Pb)
- UVA Intensity: at 1 inch from Light - 885 mw/cm2
- UVA Intensity: at 3 inches from Light - 578 mw/cm2

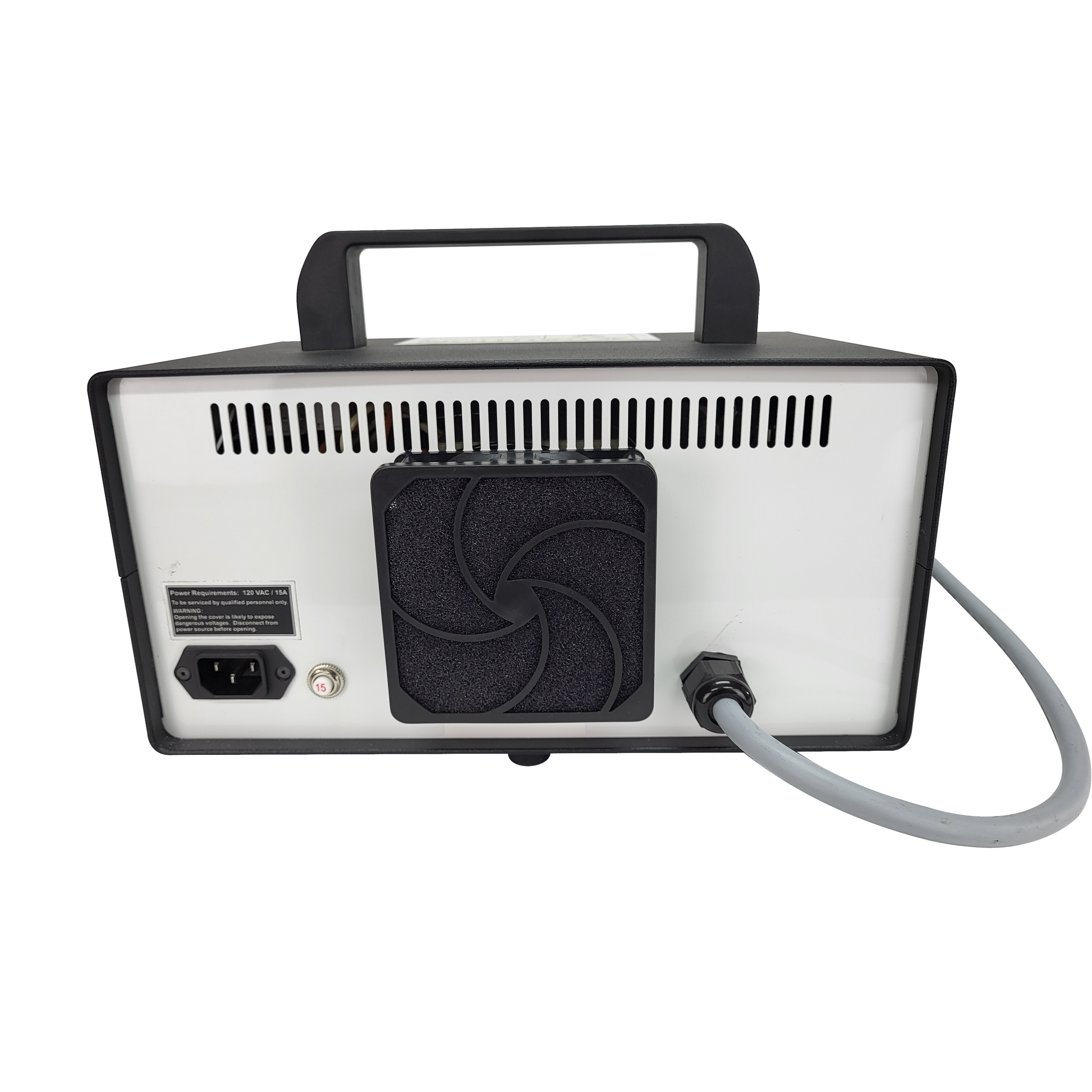

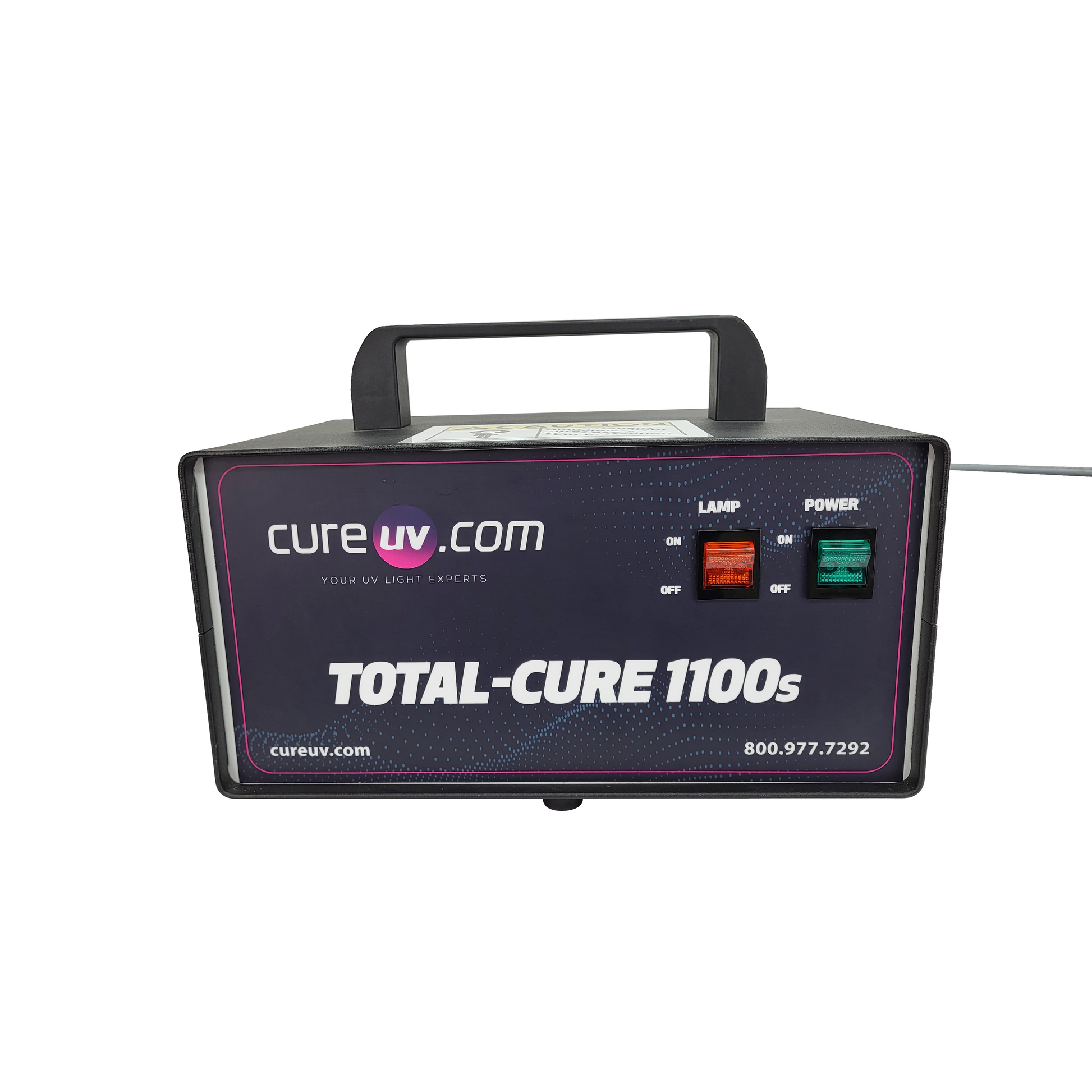

Power Supply:
- Weight: - 34lbs
- Dimensions - Width 12.14" x Depth 8.00" x Height 6.58"
- Box Dimensions: 30" x 16" x 10"
- Power Requirements - 110V 60Hz with 15A service (220V 50Hz Available for international purchases.)
- Cooling: Integrated cooling and fans.
- Power Cord: 6' (foot) power cord
- Irradiator Cord: 20' (foot) irradiator cord
- Handles: Molded plastic handle for portability
- Mounting Base: 6 non-marking, non-skid feet

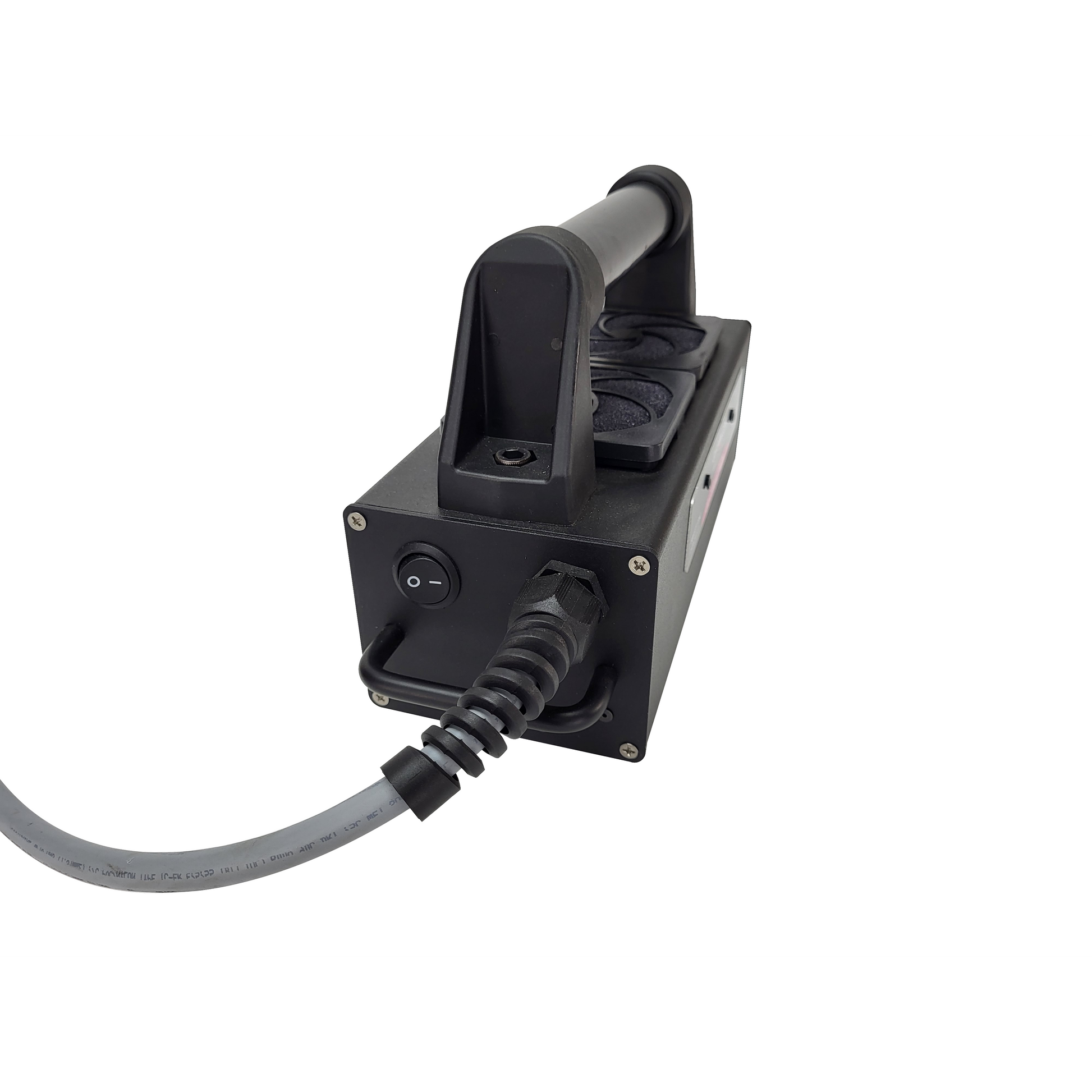

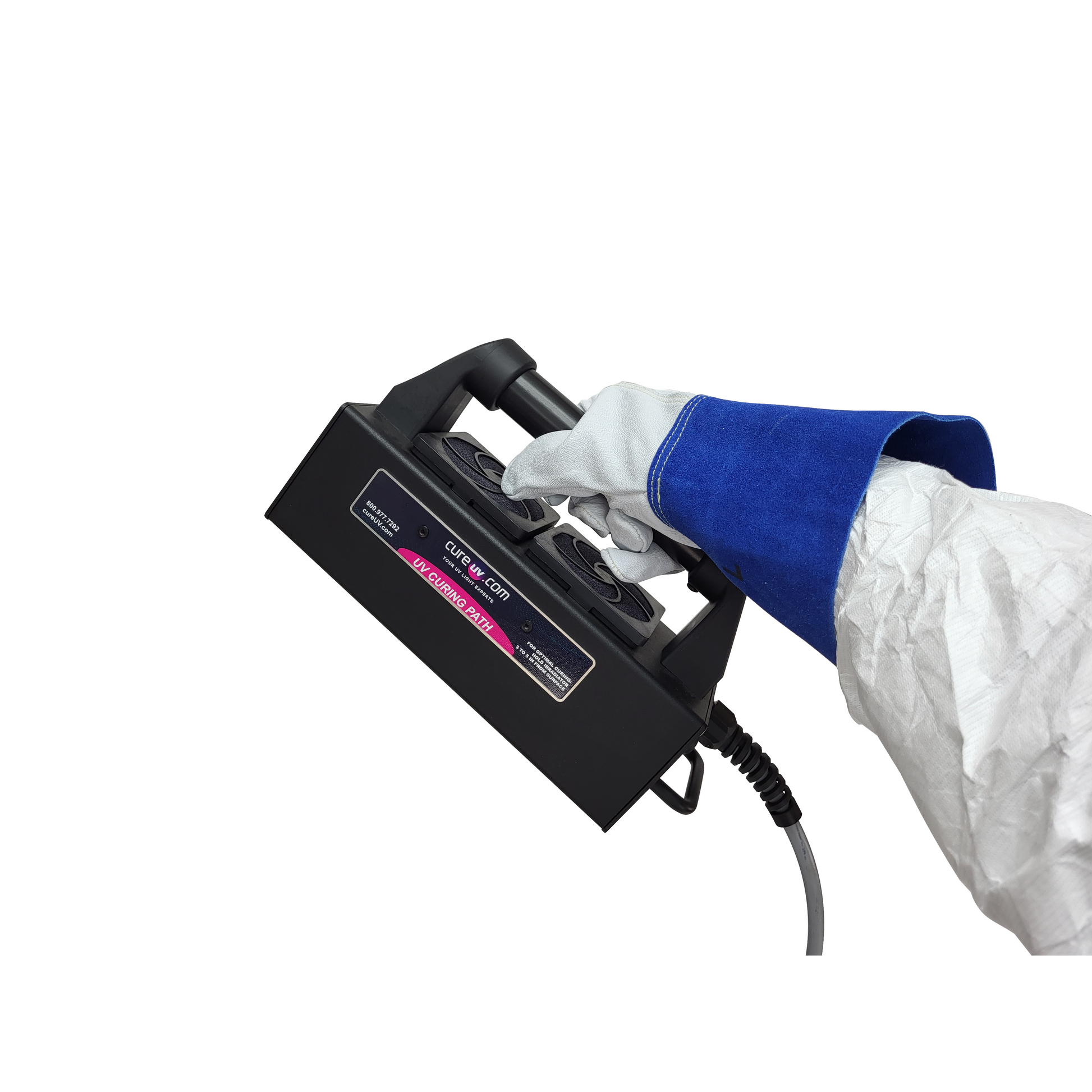

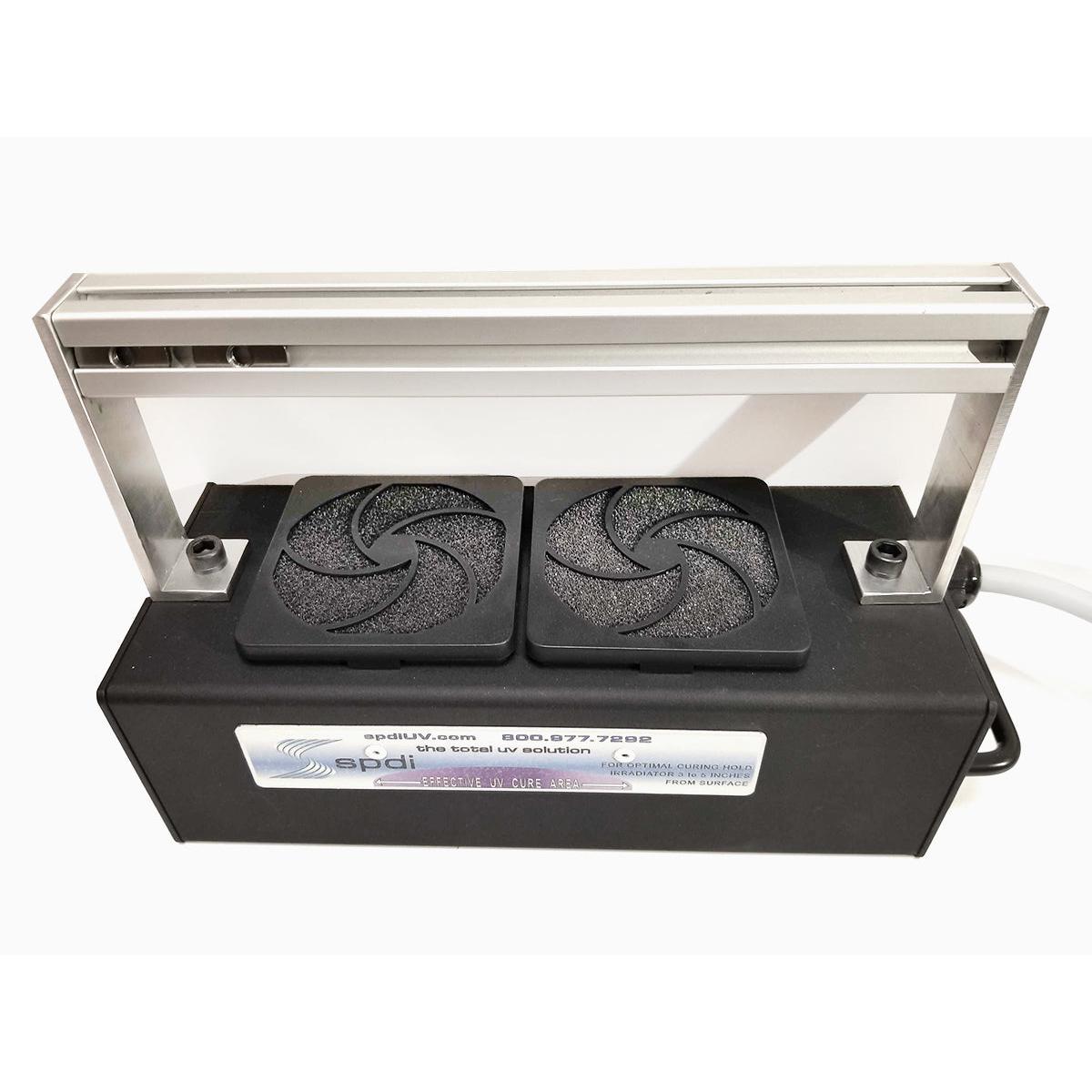

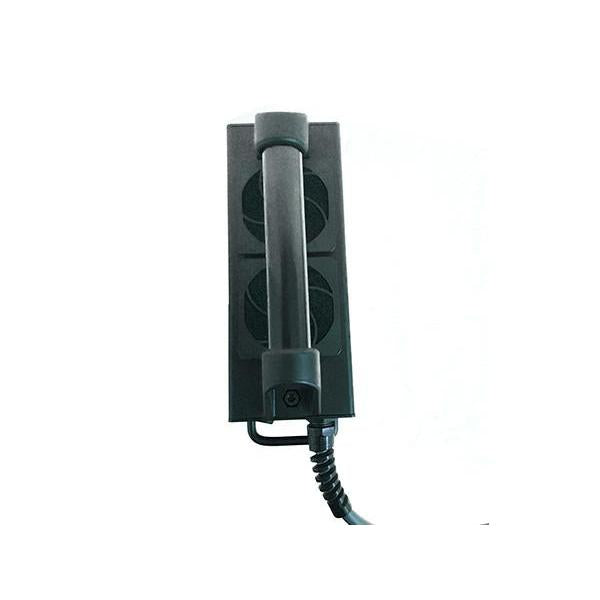

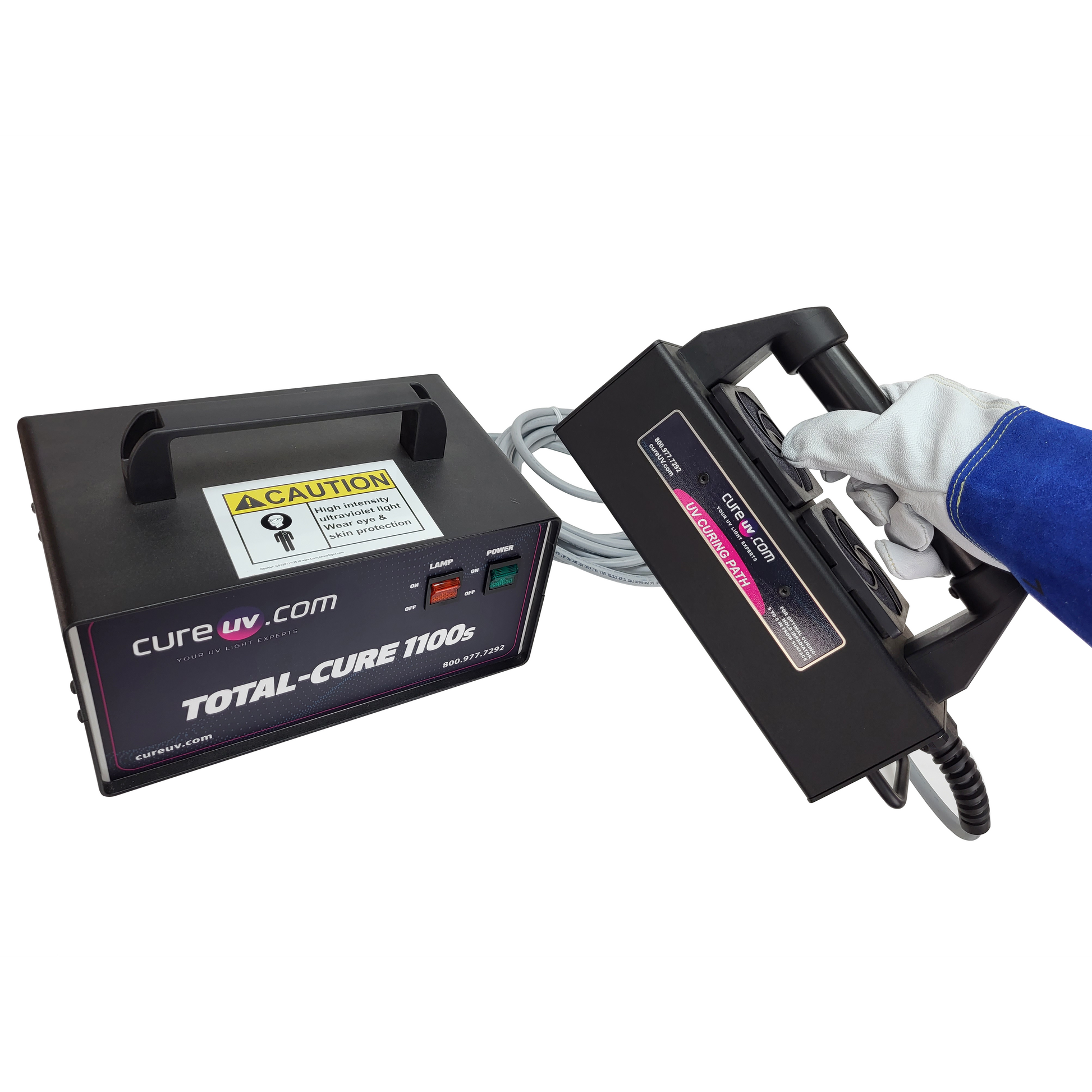

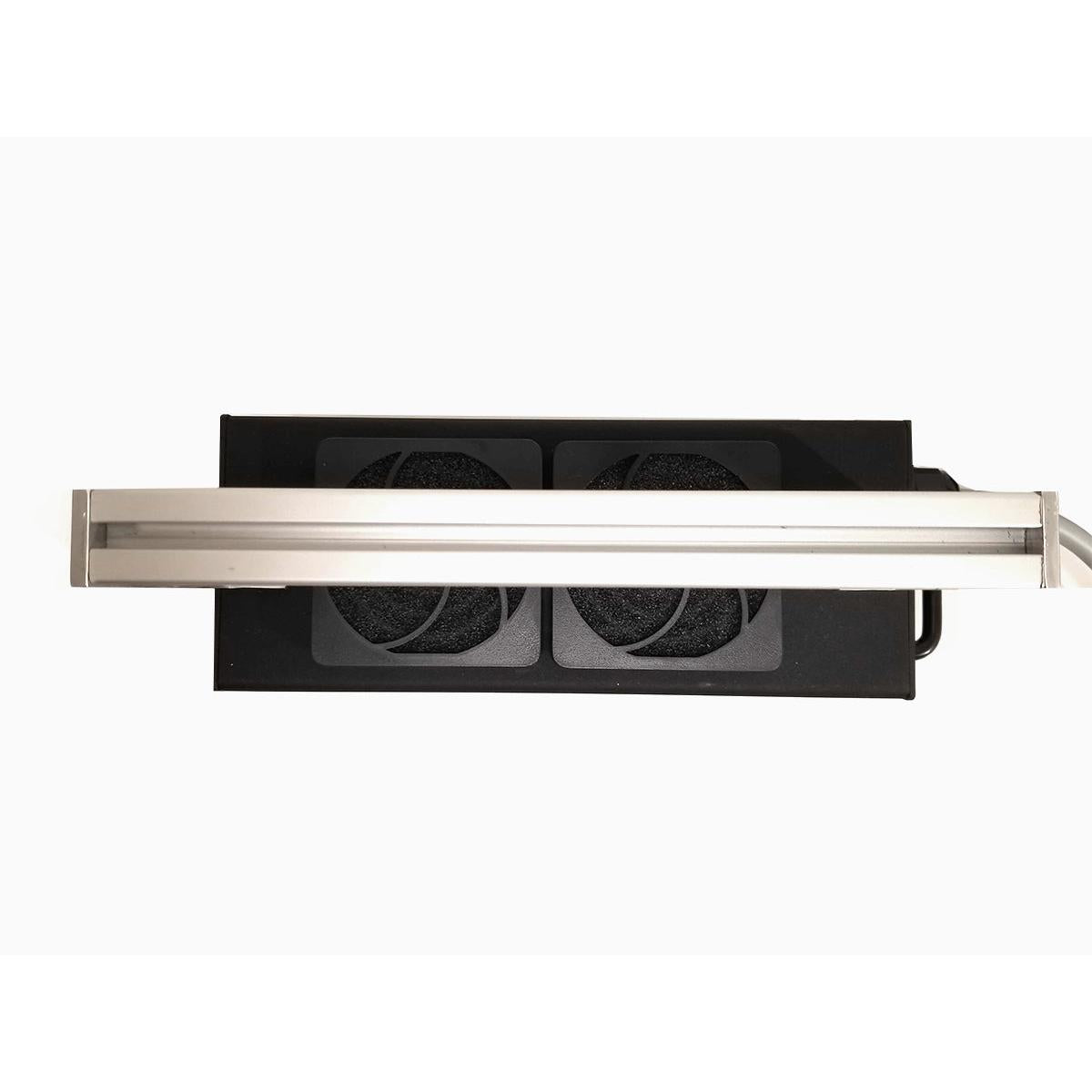

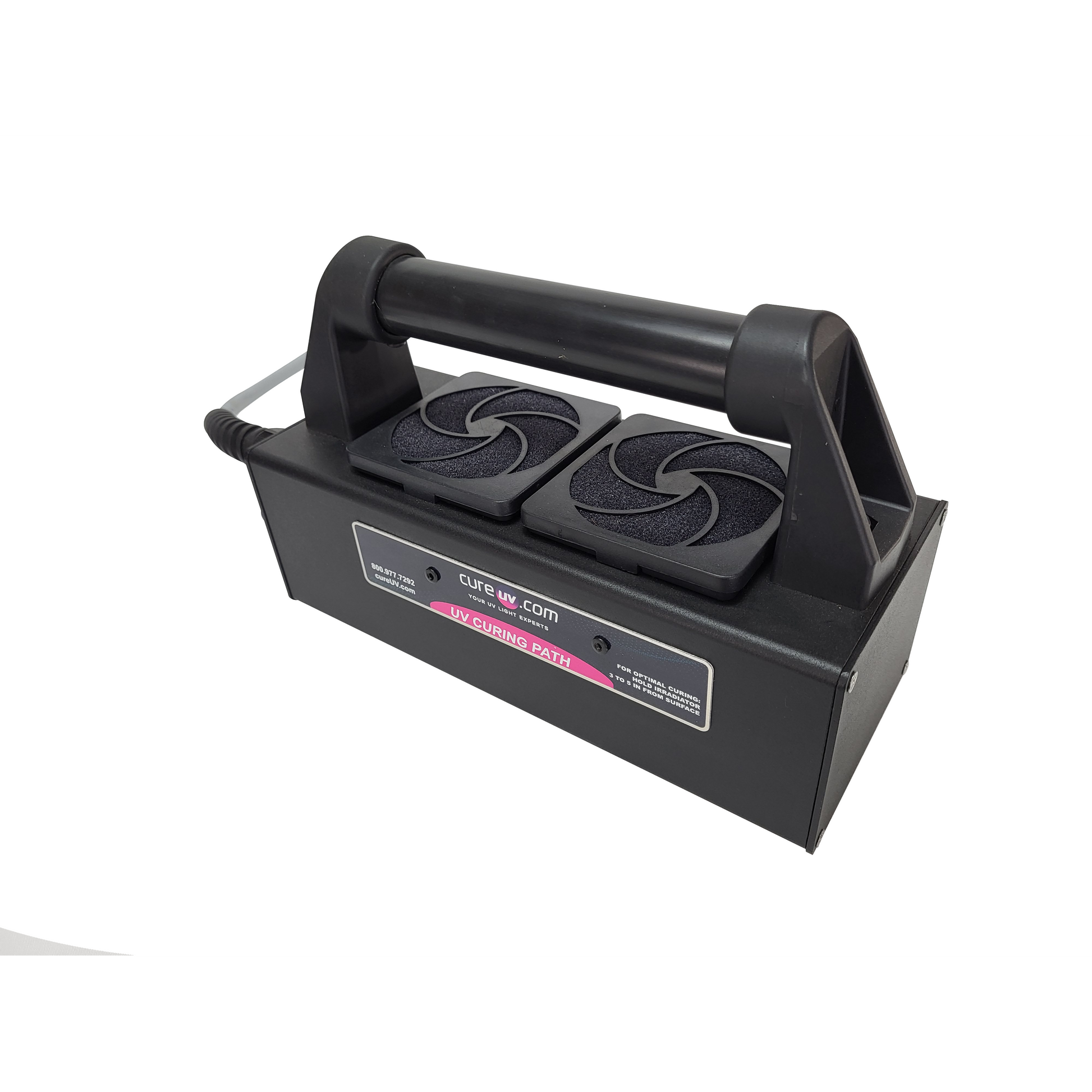

Irradiator:
- Weight - 4lb
- Dimensions - Length 9.33" x Width 4.14" x Height 6.35"
- Ergonomic extruded aluminum handle
- Dual cooling fans

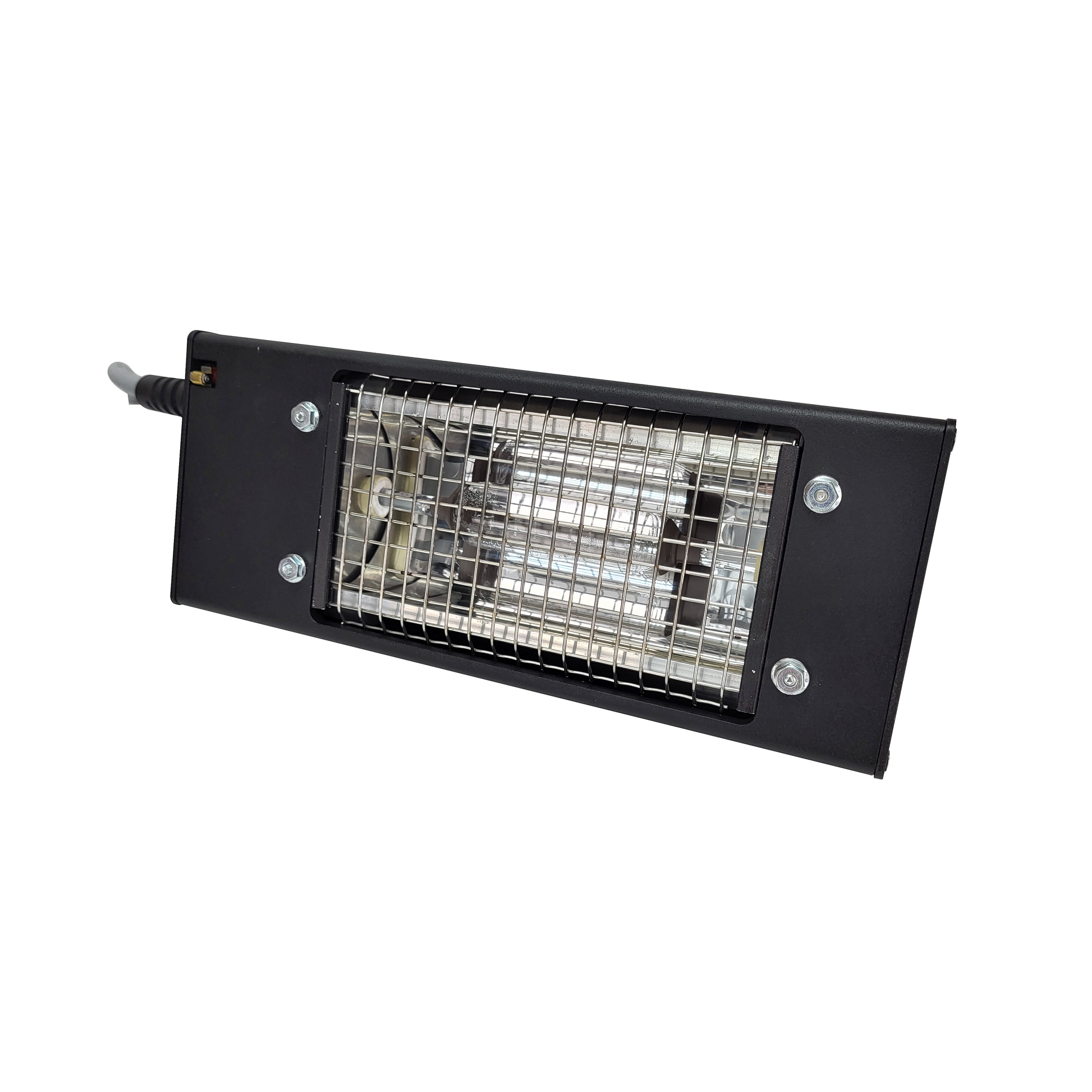

- Easy change UV lamp and Reflector
- Hi/Low selectable power
- Standby power safety switch (activated when placed in nest)

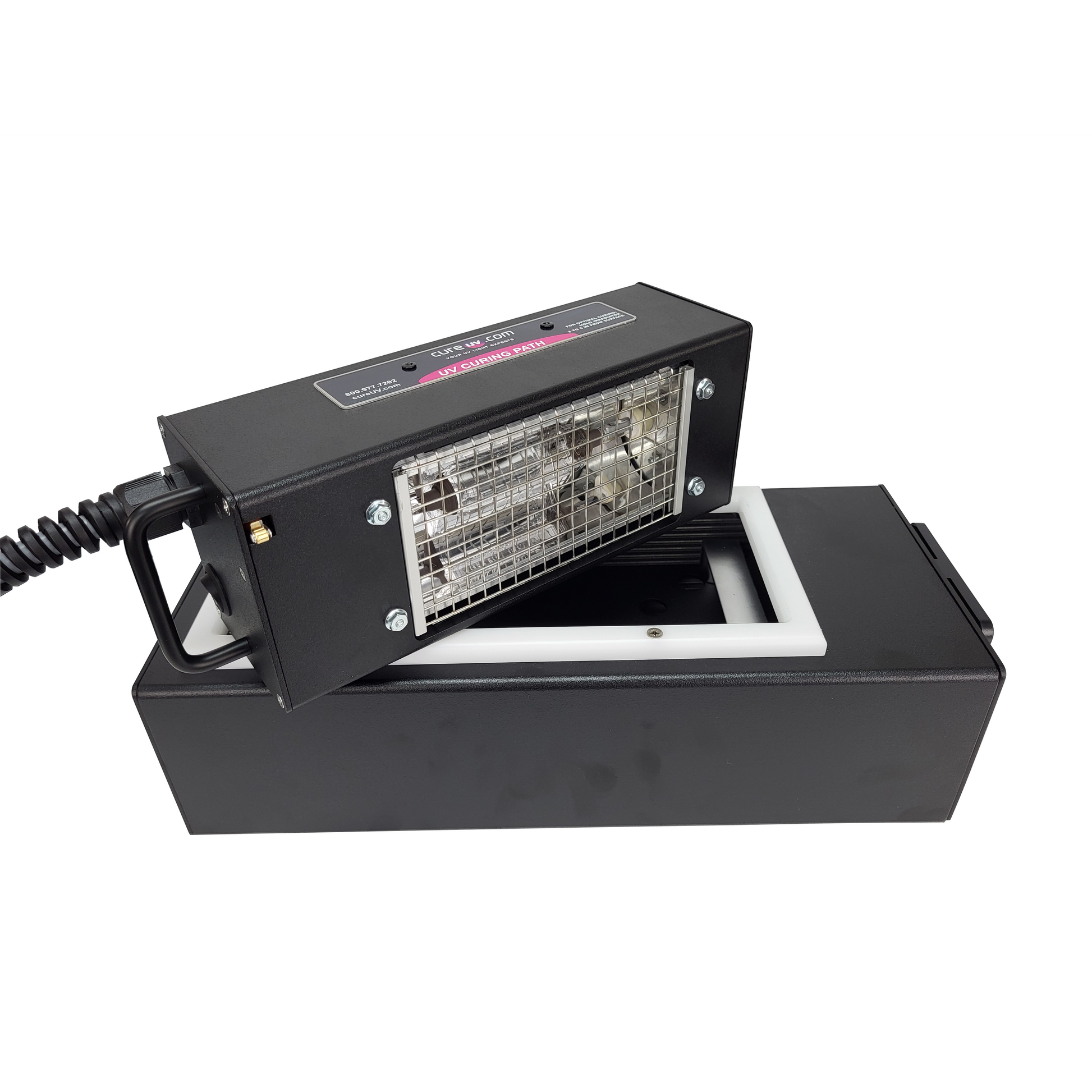

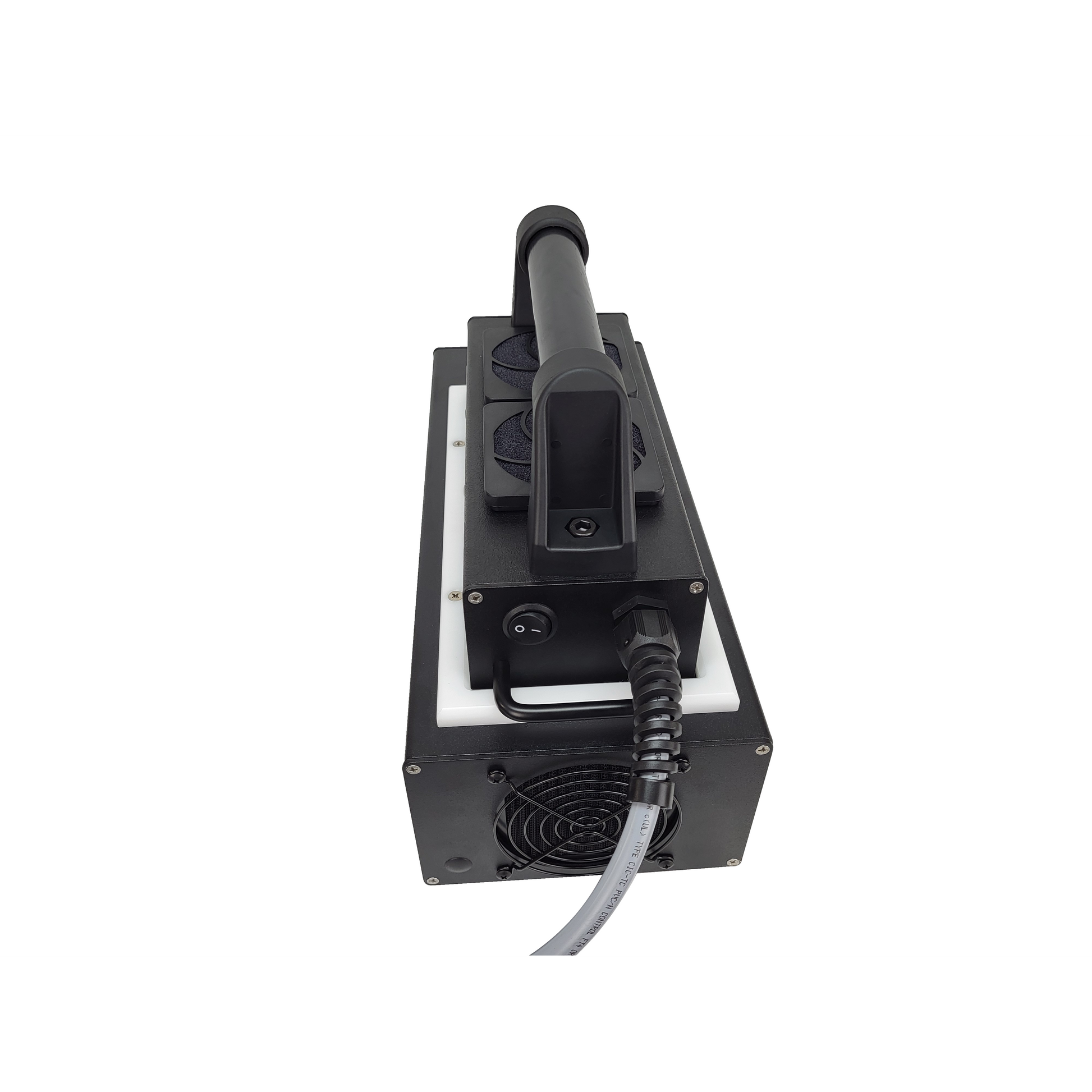

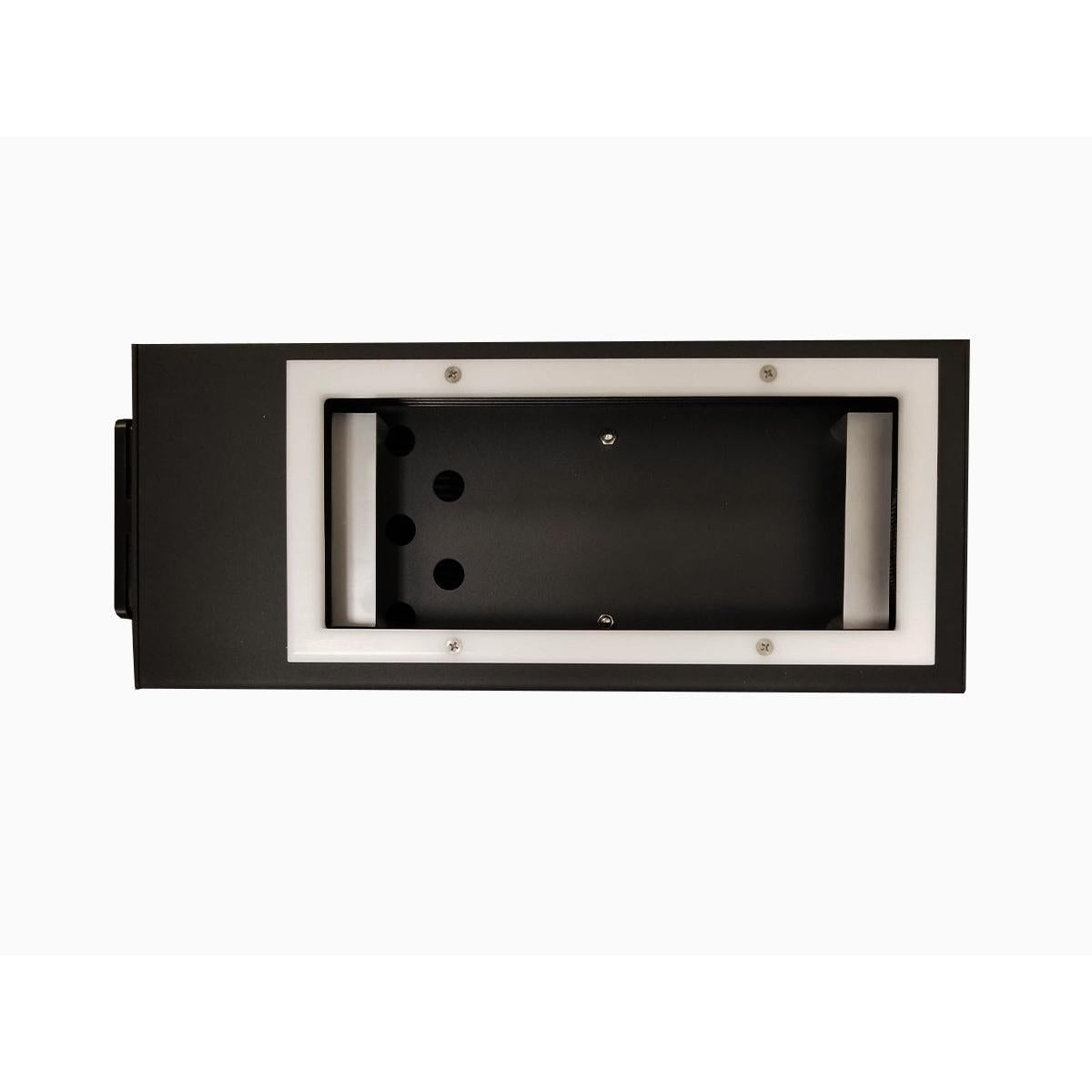

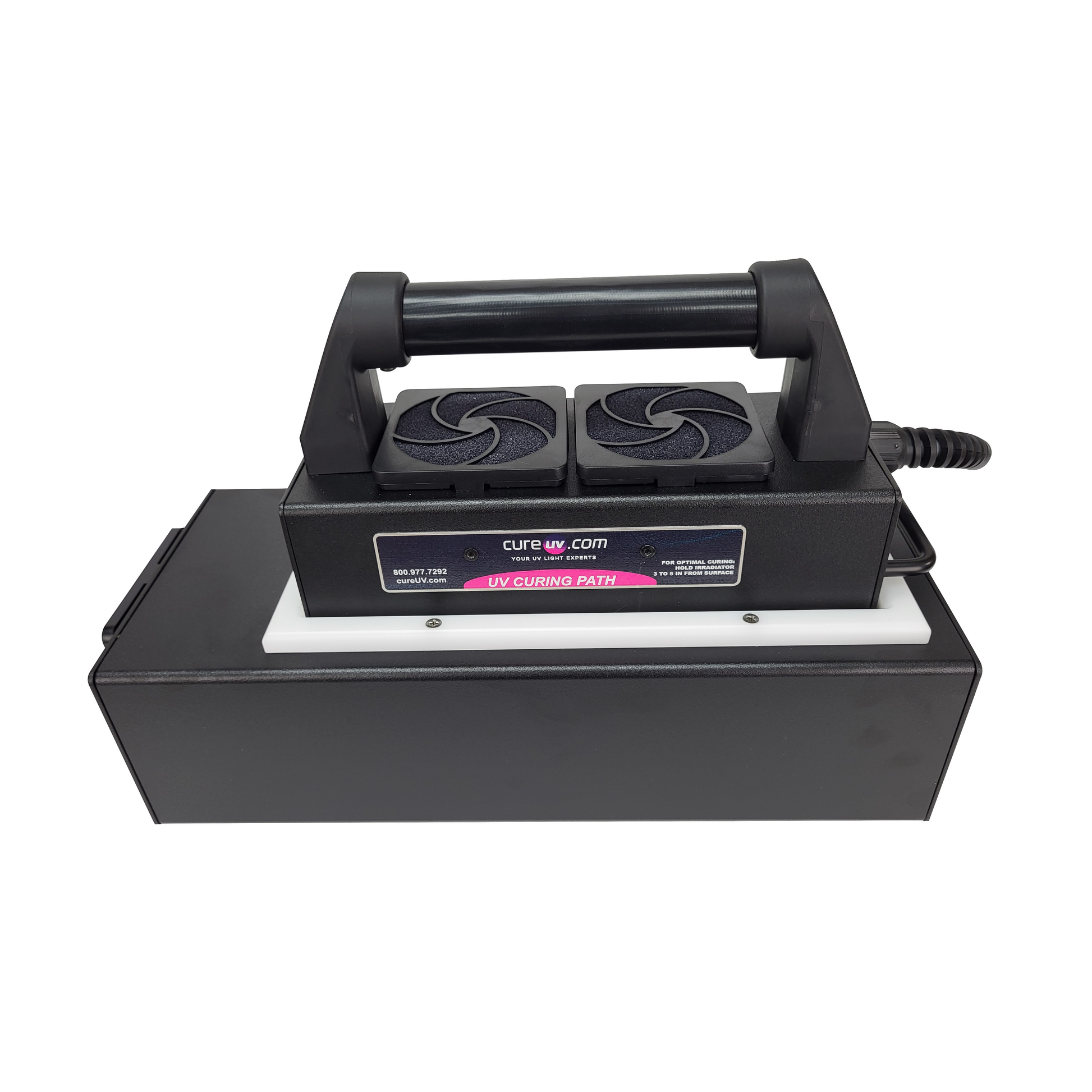

Stand-by Nest:
-
Weight - 6lbs
-
Dimensions - Length 12.95" x Width x 6.50" x Height 4.65"
-
Power Requirements - 110V 60Hz (220V 50Hz Avail.)
-
Integrated cooling fan
-
4 non-marking, non-skid feet
A note on spare bulbs:
It is always a good idea to have a spare bulb with any curing system in case of breakage or natural degradation. Having one can save you from stopping production while we ship you a new replacement bulb. For this reason, we are offering 50% off a replacement bulb when you initially purchase your system. It's our way of rewarding the prepared. Just add the spare bulb to the cart or mention this promotion to your account manager and we will do the rest.
Technical Data Sheet:
System Manual:
1-Year Warranty:
UV Finish Application Guidelines:
Mechanical Drawings:
If you have any questions or are just unsure about anything give us a call at (800)977-7292 or email us at sales@cureuv.com and we will gladly help you out.
