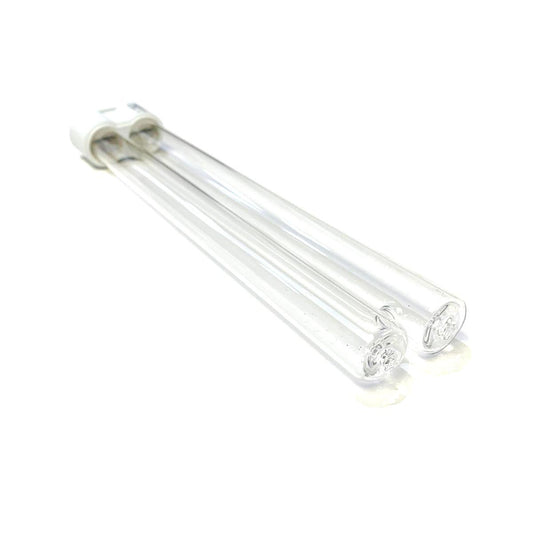

4 Pin on a Single End - 16 Watt Germicidal Air, Surface & Water Treatment Bulb

Our generic replacement for the American Ultraviolet GML350 Replacement UVC Light Bulb is a 16 Watt replacement UVC light bulb that is compatible with germicidal OEM water and air disinfection filters, UV purifiers and UV sterilizers.

This method of water treatment requires no handling of chemicals and does not need any specialized storage. There is no change in odor, taste and pH or the chemistry of water, which is why this is a preferred method of treatment from chemicals and their byproducts. It is established that UV light at the wavelength of 253.7nm can kill harmful microorganisms such as E.coli, giardia and cryptosporidium that can cause harm.

The light bulb is compatible with germicidal OEM air, and water disinfection filter, UV sterilizer and ultraviolet purifiers. The short wavelengths of the germicidal light bulbs emit ultraviolet rays that enable thorough disinfection. This method alters the genetic composition of the microorganisms and renders them harmless.

In its process to destroy microorganisms, the UVC light bulbs must be replaced annually to ensure efficiency. These high-quality lamps last approximately 10,000 working hours after which it is necessary to change them. With a total length of 14.06 inches, the replacement UVC light bulb has a peak UV output of 253.7nm that helps in reacting with the genetics of microorganisms such as spores, virus, bacteria and other pathogens. Ensure utmost safety when you replace the UVC light bulb with the American Ultraviolet GML350 Replacement UVC Light Bulb.

Common Applications:

Air Conditioners
Air Purifiers
Aquaculture
Beverage Services and Processing
Drinking Water
Food Services and Processing
Heating & Cooling Filters
HVAC Systems
Municipal Wastewater
Pools, Spas, and Water Features
Surface Disinfection
Well Water

Technical Specification:

Total Length: 14.06 inches (357mm)
Arc Length: 10.83 inches (275mm)
Lamp Quartz Diameter: 15mm
Operating Current: 320mA
Lamp Voltage: 56V
Lamp Wattage: 16 Watts
Peak UV Output: 253.7nm
Glass Type: Non Ozone
Base Style: 4 pin on a single end
Base Material: Ceramic
Rated Life: Up to 10,000 hours

Common Locations for use:

Factories
Farms
Homes
Hospitals
Hotels
Laboratories
Offices
Ships

Technical Data Sheets:

Spectral Output:

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 191668 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This replacement germicidal bulb is used for ultraviolet air, surface, and water purification and is well-suited for the applications that require UV-C intensity.

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

American Ultraviolet Part Number:

GML350

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
